Taiwan Semiconductor 1 kV 1 A Diode Switching 2-Pin DO-214AC
- RS Stock No.:
- 169-9007
- Mfr. Part No.:
- S1M M2G
- Brand:
- Taiwan Semiconductor

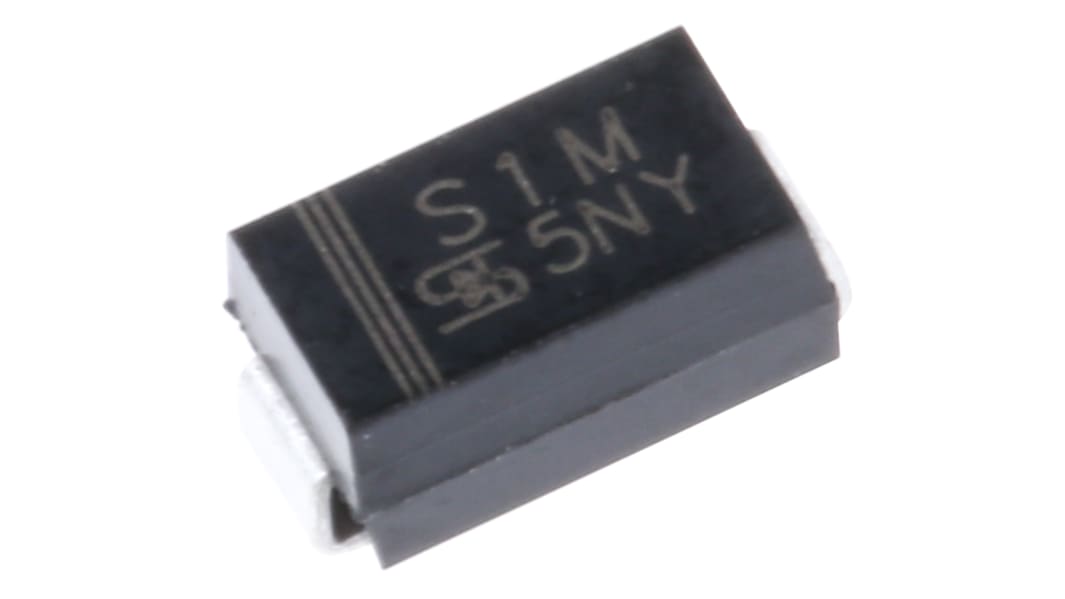

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 7500 units)*
$675.00
(exc. GST)
$750.00
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 37,500 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 7500 - 30000 | $0.09 | $675.00 |
| 37500 + | $0.081 | $607.50 |
*price indicative
- RS Stock No.:
- 169-9007
- Mfr. Part No.:
- S1M M2G
- Brand:
- Taiwan Semiconductor
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Taiwan Semiconductor | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | DO-214AC | |
| Maximum Continuous Forward Current If | 1A | |
| Peak Reverse Repetitive Voltage Vrrm | 1kV | |
| Series | S1M | |
| Diode Configuration | Single | |
| Rectifier Type | Switching | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Forward Voltage Vf | 1.1V | |
| Peak Reverse Current Ir | 1μA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A | |
| Maximum Operating Temperature | 150°C | |
| Peak Reverse Recovery Time trr | 1.5μs | |
| Length | 4.6mm | |
| Standards/Approvals | No | |
| Width | 2.83 mm | |
| Height | 2.3mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Taiwan Semiconductor | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type DO-214AC | ||
Maximum Continuous Forward Current If 1A | ||
Peak Reverse Repetitive Voltage Vrrm 1kV | ||
Series S1M | ||
Diode Configuration Single | ||
Rectifier Type Switching | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Maximum Forward Voltage Vf 1.1V | ||
Peak Reverse Current Ir 1μA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 30A | ||
Maximum Operating Temperature 150°C | ||
Peak Reverse Recovery Time trr 1.5μs | ||
Length 4.6mm | ||
Standards/Approvals No | ||
Width 2.83 mm | ||
Height 2.3mm | ||
Automotive Standard AEC-Q101 | ||
Rectifier Diodes, 1A, Taiwan Semiconductor
Diodes and Rectifiers, Taiwan Semiconductor
