IXYS 1200 V 56 A Diode Switching 4-Pin SOT-227 DSI2X55-12A
- RS Stock No.:
- 192-499
- Distrelec Article No.:
- 302-53-226
- Mfr. Part No.:
- DSI2X55-12A
- Brand:
- IXYS

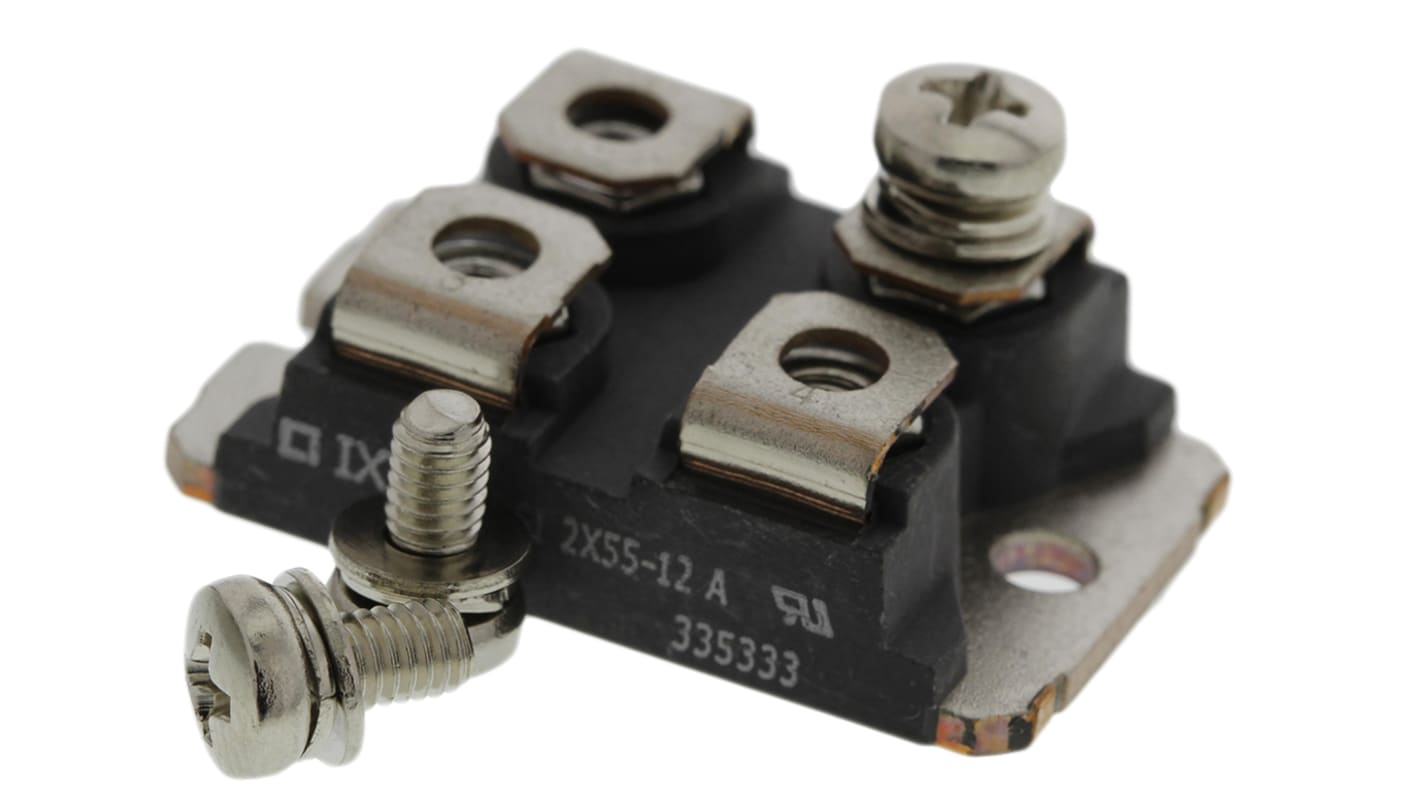

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$43.19
(exc. GST)
$47.51
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 109 unit(s) ready to ship from another location
- Plus 127 unit(s) shipping from 11 March 2026
- Plus 260 unit(s) shipping from 29 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 2 | $43.19 |
| 3 - 14 | $42.79 |
| 15 + | $35.21 |
*price indicative
- RS Stock No.:
- 192-499
- Distrelec Article No.:
- 302-53-226
- Mfr. Part No.:
- DSI2X55-12A
- Brand:
- IXYS
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IXYS | |
| Product Type | Diode | |
| Mount Type | Panel | |
| Package Type | SOT-227 | |
| Maximum Continuous Forward Current If | 56A | |
| Peak Reverse Repetitive Voltage Vrrm | 1200V | |
| Diode Configuration | Isolated | |
| Rectifier Type | Switching | |
| Pin Count | 4 | |
| Maximum Forward Voltage Vf | 1.2V | |
| Peak Reverse Current Ir | 300μA | |
| Minimum Operating Temperature | -40°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 700A | |
| Maximum Operating Temperature | 150°C | |
| Height | 9.6mm | |
| Width | 25.07 mm | |
| Length | 38.2mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand IXYS | ||
Product Type Diode | ||
Mount Type Panel | ||
Package Type SOT-227 | ||
Maximum Continuous Forward Current If 56A | ||
Peak Reverse Repetitive Voltage Vrrm 1200V | ||
Diode Configuration Isolated | ||
Rectifier Type Switching | ||
Pin Count 4 | ||
Maximum Forward Voltage Vf 1.2V | ||
Peak Reverse Current Ir 300μA | ||
Minimum Operating Temperature -40°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 700A | ||
Maximum Operating Temperature 150°C | ||
Height 9.6mm | ||
Width 25.07 mm | ||
Length 38.2mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Rectifier Diodes, Ixys
Diodes and Rectifiers, Ixys
