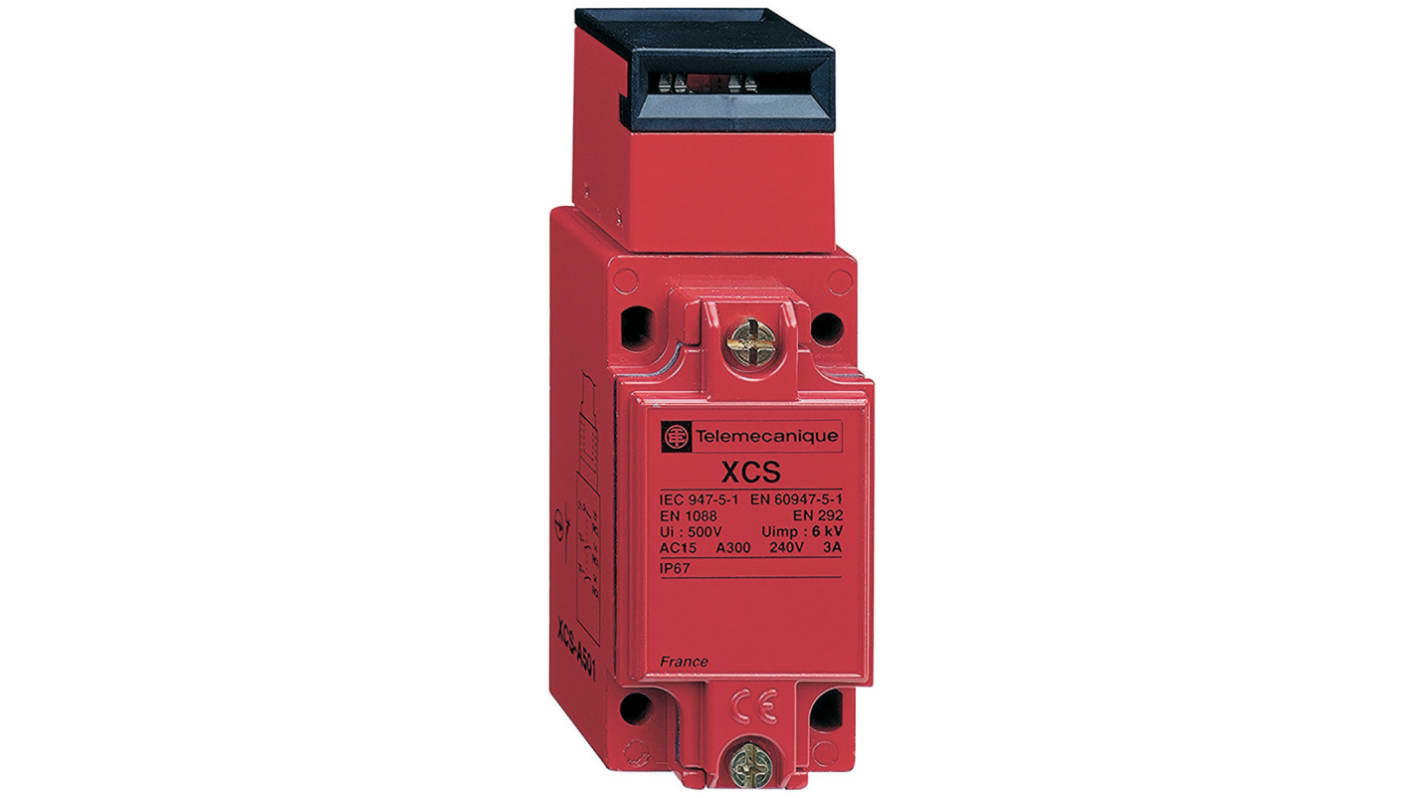

Telemecanique Sensors XCSA Safety Interlock Switch, 2NO/1NC, Keyed , Zinc Alloy

RS Stock No.:: 133-0084
Mfr. Part No.:: XCSA503
Brand:: Telemecanique Sensors

Telemecanique Sensors XCSA Safety Interlock Switch, 2NO/1NC, Keyed , Zinc Alloy

Stocked by manufacturer – available for delivery 29/07/2024

Price (ex. GST) Each

$211.90

(exc. GST)

$233.09

(inc. GST)

Units	Per unit
1 +	$211.90

RS Stock No.:: 133-0084
Mfr. Part No.:: XCSA503
Brand:: Telemecanique Sensors

Technical data sheets

Legislation and Compliance

Product Details

XCSA Safety Interlock Switch

3 positive opening contacts as standard (on guard opening)
A key operated lock enables positive locking of the guard
Optional version with orange LED to indicate guard open/closed
Heavy duty metal DIN style
Turret heads can be rotated through 360° in 90 steps
8 actuator entries and 1 tapped entry
20N minimum operating force for positive opening
IP67 rating
Productivity is increased due to the third contact dedicated to diagnostics
Preventa XCS Safety Switches

Note

Actuators must be purchased separately, see accessories table

Standards

Conforms to EN1088, EN60204

Interlock Switch

Specifications

Attribute	Value
Lock Style	Keyed
Normal State Configuration	2NO/1NC
Actuator Included	No
Maximum AC Voltage	240V
Maximum DC Voltage	250V
Connection Type	1/2 in NPT
Housing Material	Zinc Alloy
Range	Preventa
IP Rating	IP67
Number of Head Directions	8
Series	XCSA
Depth	114mm
Maximum Current	6A
Standards Met	CSA, CSA C22.2 No. 14, EN 1088, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/ISO 12100, ISO 14119, TC, UL, UL 508
Minimum Operating Temperature	-25°C
Length	40mm
Width	44mm
Maximum Operating Temperature	+70°C
