- RS Stock No.:
- 373-6853
- Mfr. Part No.:
- K3-E-2LS-200
- Brand:
- Electrotherm
5 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$170.06
(exc. GST)
$187.07
(inc. GST)
Units | Per unit |
1 - 4 | $170.06 |
5 + | $167.70 |
- RS Stock No.:
- 373-6853
- Mfr. Part No.:
- K3-E-2LS-200
- Brand:
- Electrotherm
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

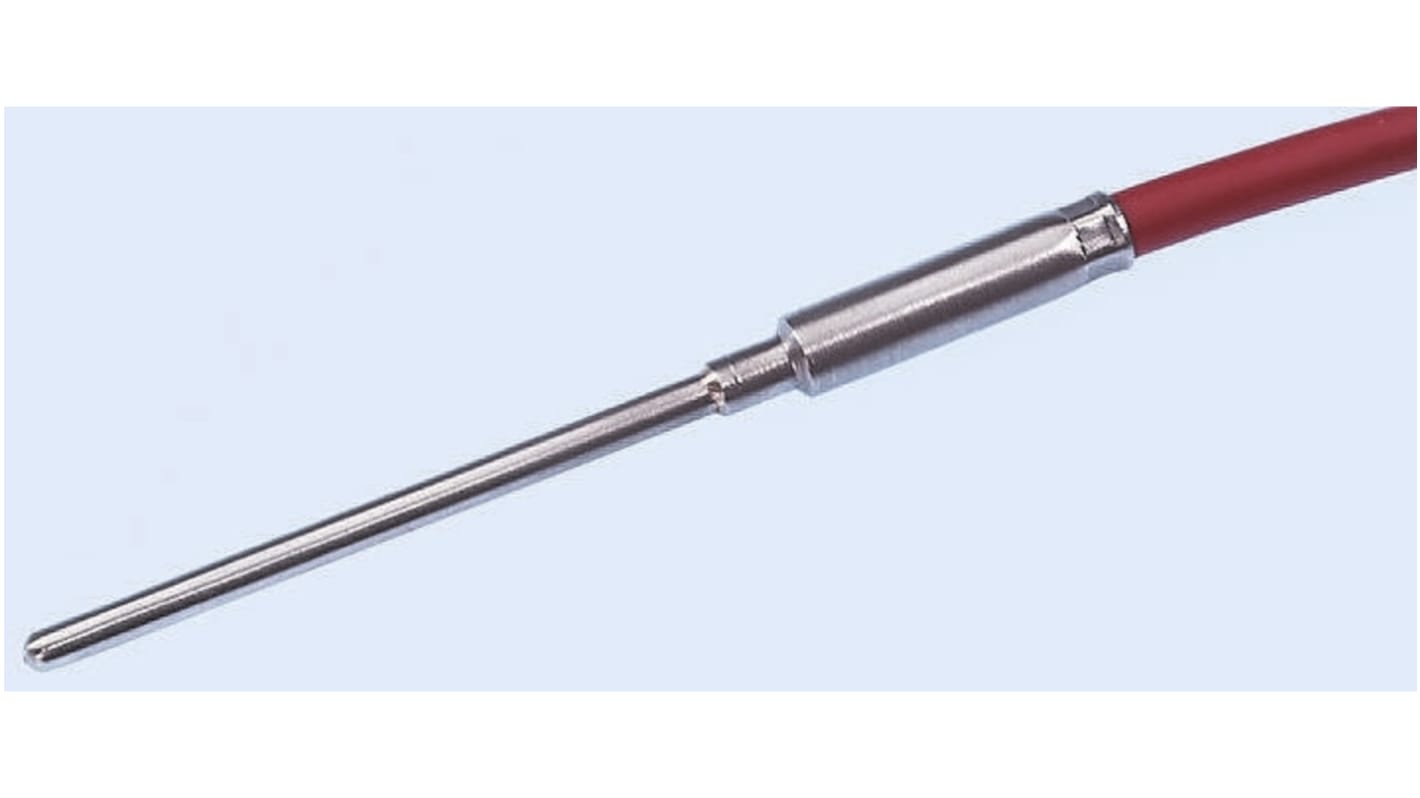

Type K3 - high-temperature cable sensor, PT100
Resistance thermometer without fastening element
Temperature measurement and monitoring on diverse application sites
Temperature range: -50 °C → +200 °C or +400 °C
Design with cable connection sleeve
Two or three-conductor circuit
Accuracy class B
2.5 m connection lead
Protective tube Ø 3 x 50 mm with connection sleeves with Ø of 6 x 30 mm made from stainless steel
400 °C version with cable sheathing reinforced with fibre glass
Temperature measurement and monitoring on diverse application sites
Temperature range: -50 °C → +200 °C or +400 °C
Design with cable connection sleeve
Two or three-conductor circuit
Accuracy class B
2.5 m connection lead
Protective tube Ø 3 x 50 mm with connection sleeves with Ø of 6 x 30 mm made from stainless steel
400 °C version with cable sheathing reinforced with fibre glass
Standards
Base values and limit deviations according to DIN EN 60751
Specifications
Attribute | Value |
---|---|
Sensor Type | PT100 |
Probe Length | 50mm |
Probe Diameter | 3mm |
Minimum Temperature Sensed | -50°C |
Maximum Temperature Sensed | +200°C |
Termination Type | Cable |
Cable Length | 2.5m |
Process Connection | Probe |
Accuracy | F0.3 |
