Siemens SCALANCE M804PB SCALANCE M804PB
- RS Stock No.:
- 254-2940
- Mfr. Part No.:
- 6GK58040AP002AA2
- Brand:
- Siemens
Subtotal (1 unit)*
$2,139.97
(exc. GST)
$2,353.97
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $2,139.97 |
*price indicative
- RS Stock No.:
- 254-2940
- Mfr. Part No.:
- 6GK58040AP002AA2
- Brand:
- Siemens
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Industrial Router | |
| Nominal Supply Voltage | 24 V | |
| Mount Type | Bracket | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Depth | 127mm | |
| Weight | 350g | |
| Width | 35 mm | |
| Series | SCALANCE M804PB | |
| Standards/Approvals | No | |
| Height | 147mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Industrial Router | ||
Nominal Supply Voltage 24 V | ||
Mount Type Bracket | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Depth 127mm | ||
Weight 350g | ||
Width 35 mm | ||
Series SCALANCE M804PB | ||
Standards/Approvals No | ||
Height 147mm | ||
- COO (Country of Origin):
- DE

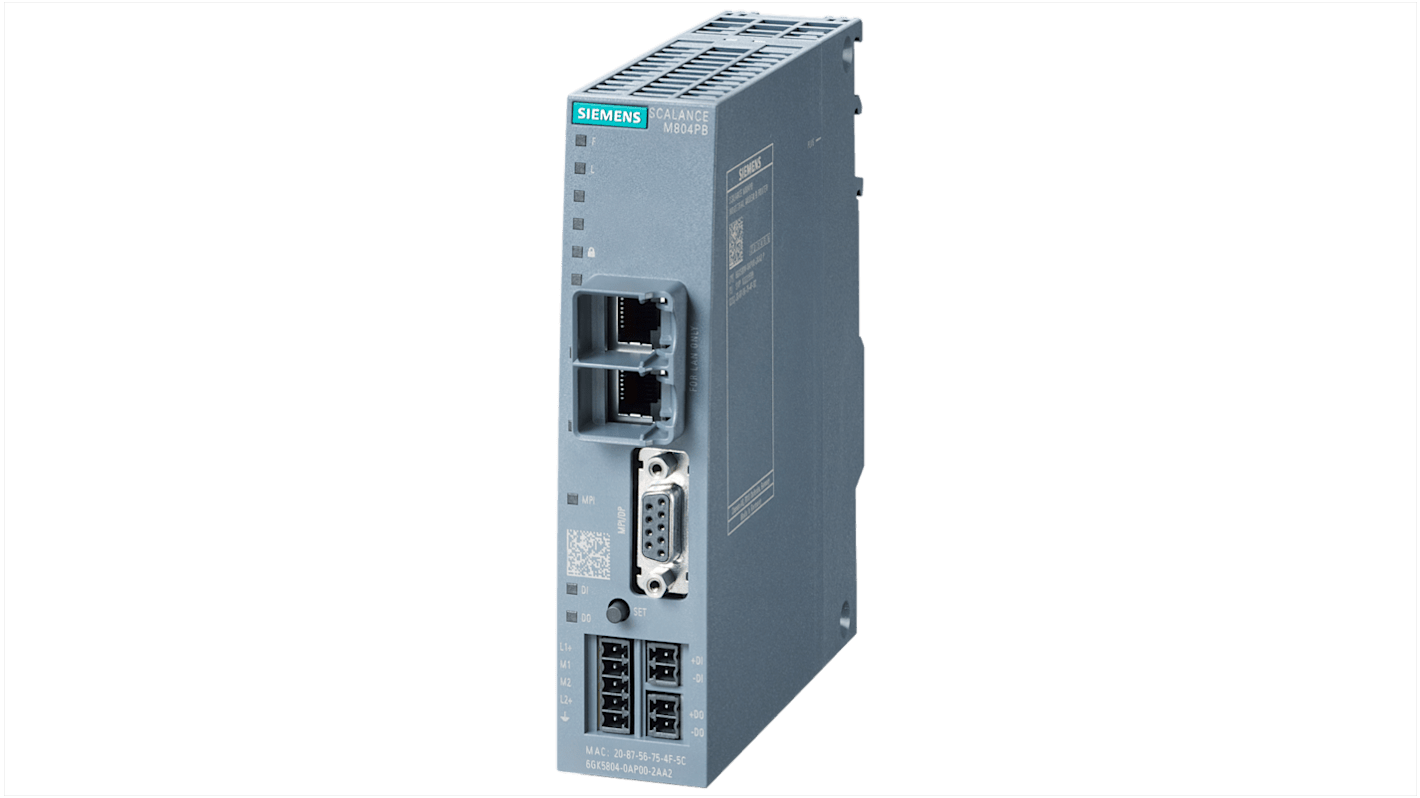

The Siemens SCALANCE M804PB router for secure remote connection of PROFIBUS / MPI programmable controllers at Ethernet networks by means of VPN and firewall. Further functions are address conversion (NAT/NAPT), connection to SINEMA RC, 2-port switch.
1x digital input, 1x digital output
Transfer rate of 10 Mbit/s, 100 Mbit/s
