Arcolectric (Bulgin) Ltd SPST, (On)-On Rocker Switch Panel Mount

RS Stock No.:: 533-3024
Mfr. Part No.:: H8611VBAAB
Brand:: Arcolectric (Bulgin) Ltd

Arcolectric (Bulgin) Ltd SPST, (On)-On Rocker Switch Panel Mount

19 In Global stock for delivery within 5 working day(s)

142 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$4.24

(exc. GST)

$4.66

(inc. GST)

Units	Per unit
1 - 49	$4.24
50 - 99	$4.12
100 - 249	$4.00
250 - 499	$3.92
500 +	$3.83

RS Stock No.:: 533-3024
Mfr. Part No.:: H8611VBAAB
Brand:: Arcolectric (Bulgin) Ltd

Technical data sheets

H8611 Rocker Switch Range Catalogue Extract

Legislation and Compliance

COO (Country of Origin):: TN

Product Details

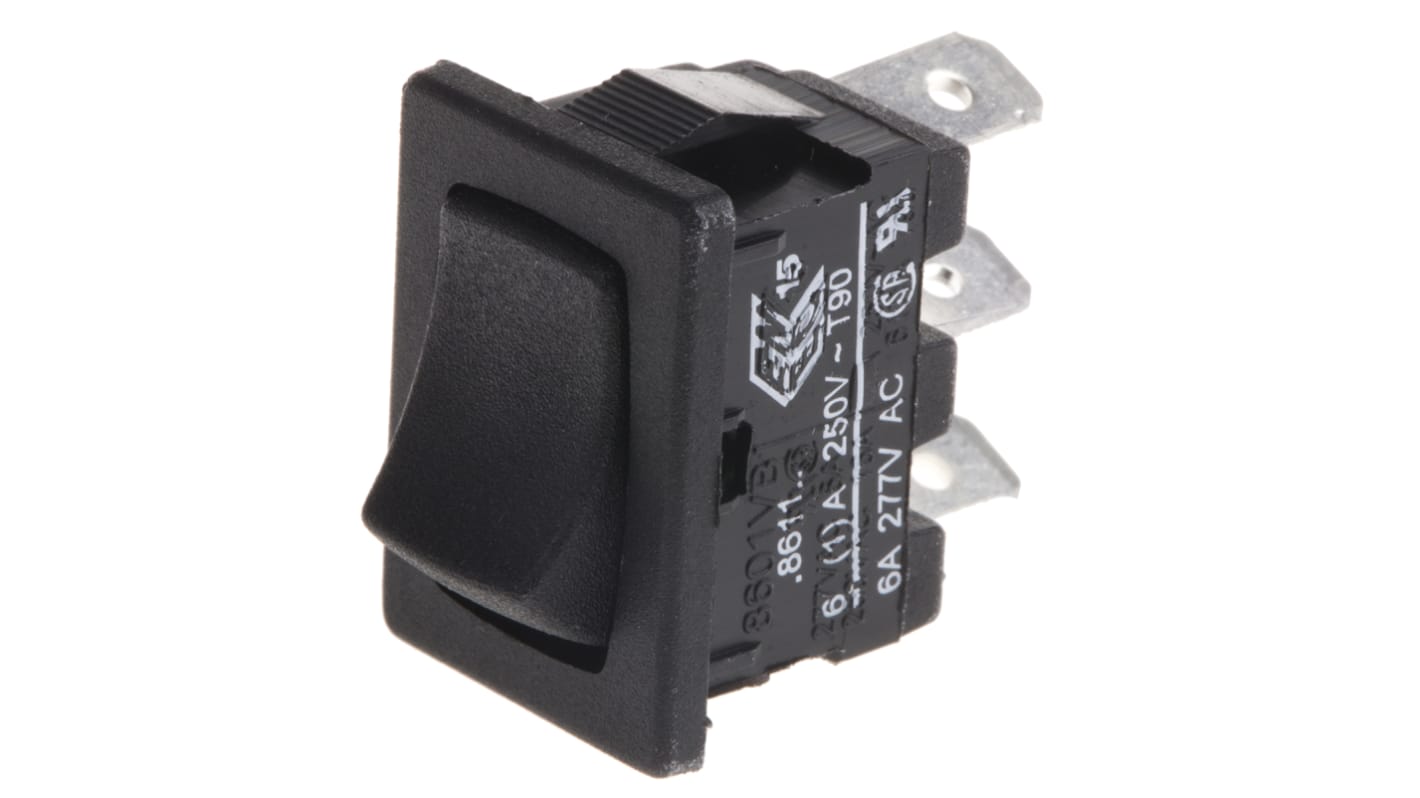

Curved Rocker Switches

The single throw types have 3mm contact separation
Electrical life: >10⁴ operations at full load
Maximum operating temperature: +90°C
Connection is by 4.8x0.8mm blade terminals
Dimensions: H21, W15 (SP), W24 (DP), depth behind panel 12.5 (19.9 with terminals), max. panel thickness 3 mm

Note

Stk no 318-064 features red illumination, stk no. 318-070 features green illumination.

Approvals

ENEC, UL, CSA

Specifications

Attribute	Value
Contact Configuration	Single Pole Single Throw (SPST)
Switch Operation	(On)-On
Panel Cut Out Width	12.9mm
Panel Cut Out Height	19.4mm
Contact Current Rating	6 A @ 277 V ac
Illuminated	No
Actuator Colour	Black
Mounting Type	Panel Mount
Terminal Type	Quick Connect
Panel Cut Out Size	19.4 x 12.9mm
AC Voltage Rating	250V
Actuator Shape	Rectangular
