TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, M4 Stud Size, 2.6mm² to 6.6mm² Wire Size, Yellow

RS Stock No.:: 161-3905
Mfr. Part No.:: 34853
Brand:: TE Connectivity

TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, M4 Stud Size, 2.6mm² to 6.6mm² Wire Size, Yellow

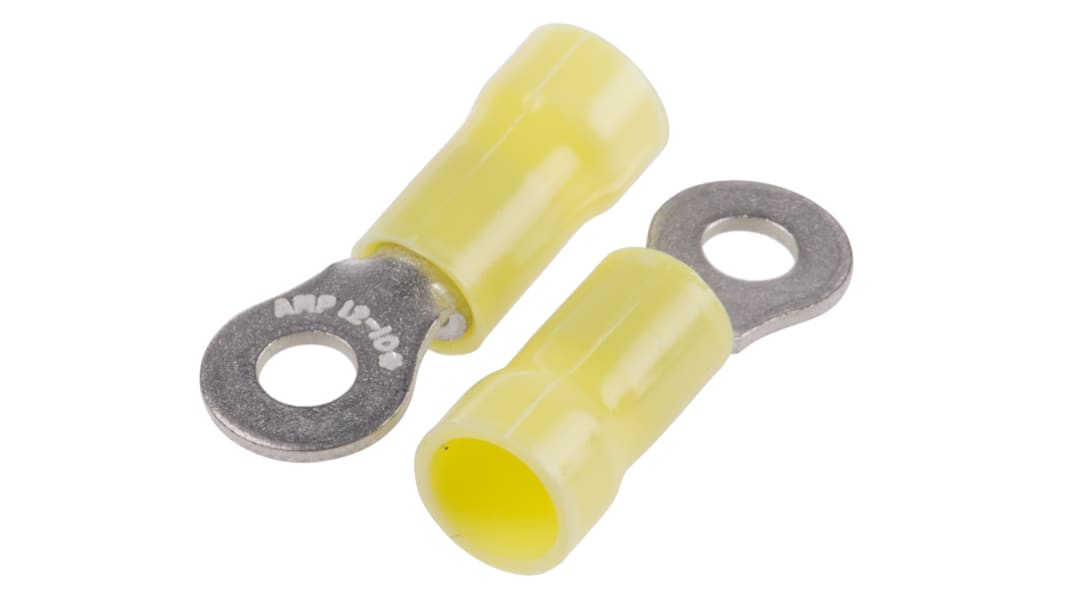

This image is representative of the product range

3500 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Box of 500)

$0.383

(exc. GST)

$0.421

(inc. GST)

Units	Per unit	Per Box*
500 - 500	$0.383	$191.50
1000 - 4500	$0.374	$187.00
5000 +	$0.336	$168.00
*price indicative

RS Stock No.:: 161-3905
Mfr. Part No.:: 34853
Brand:: TE Connectivity

Technical data sheets

Datasheet - 34853

Legislation and Compliance

Product Details

TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals

PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily.

Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²

TE Connectivity Plasti-Grip Terminals

Specifications

Attribute	Value
Series	PLASTI-GRIP
Insulation	Insulated
Insulation Material	Vinyl
Inner Ring Diameter	4.34mm
Outer Ring Diameter	9.52mm
Maximum Wire Size mm²	6.6mm²
Minimum Wire Size mm²	2.6mm²
Maximum Wire Size AWG	10AWG
Minimum Wire Size AWG	12AWG
Stud Size	M4
Colour	Yellow
Contact Material	Copper
Contact Plating	Tin
Overall Length	27.89mm
