Quectel BG96MA-MINIPCIE RFID Module 1900 MHz 4.3 V
- RS Stock No.:
- 206-9149
- Mfr. Part No.:
- BG96MA-MINIPCIE
- Brand:
- Quectel
Bulk discount available
Subtotal (1 unit)*
$82.69
(exc. GST)
$90.96
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Last RS stock
- Plus 43 unit(s) shipping from 09 February 2026
- Final 11 unit(s) shipping from 16 February 2026
Units | Per unit |
|---|---|
| 1 - 4 | $82.69 |
| 5 - 9 | $80.96 |
| 10 - 24 | $78.49 |
| 25 - 99 | $76.59 |
| 100 + | $74.93 |
*price indicative
- RS Stock No.:
- 206-9149
- Mfr. Part No.:
- BG96MA-MINIPCIE
- Brand:
- Quectel
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Quectel | |
| Component Type | Module | |
| Sub Type | RF Module | |
| Product Type | RFID Module | |
| Maximum RF Data Rate | 375kbps | |
| Frequency | 1900MHz | |
| Maximum Output Power | 23dBm | |
| Mount Type | Surface | |
| Receiver Sensitivity | -113dBm | |
| Interface Type | UART, USB | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Supply Voltage | 4.3V | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | 75°C | |
| Width | 22.5 mm | |
| Series | BG96 | |
| Length | 26.5mm | |
| Standards/Approvals | No | |
| Height | 2.3mm | |
| Select all | ||
|---|---|---|
Brand Quectel | ||
Component Type Module | ||
Sub Type RF Module | ||
Product Type RFID Module | ||
Maximum RF Data Rate 375kbps | ||
Frequency 1900MHz | ||
Maximum Output Power 23dBm | ||
Mount Type Surface | ||
Receiver Sensitivity -113dBm | ||
Interface Type UART, USB | ||
Minimum Supply Voltage 3.3V | ||
Maximum Supply Voltage 4.3V | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature 75°C | ||
Width 22.5 mm | ||
Series BG96 | ||
Length 26.5mm | ||
Standards/Approvals No | ||
Height 2.3mm | ||
- COO (Country of Origin):
- CN

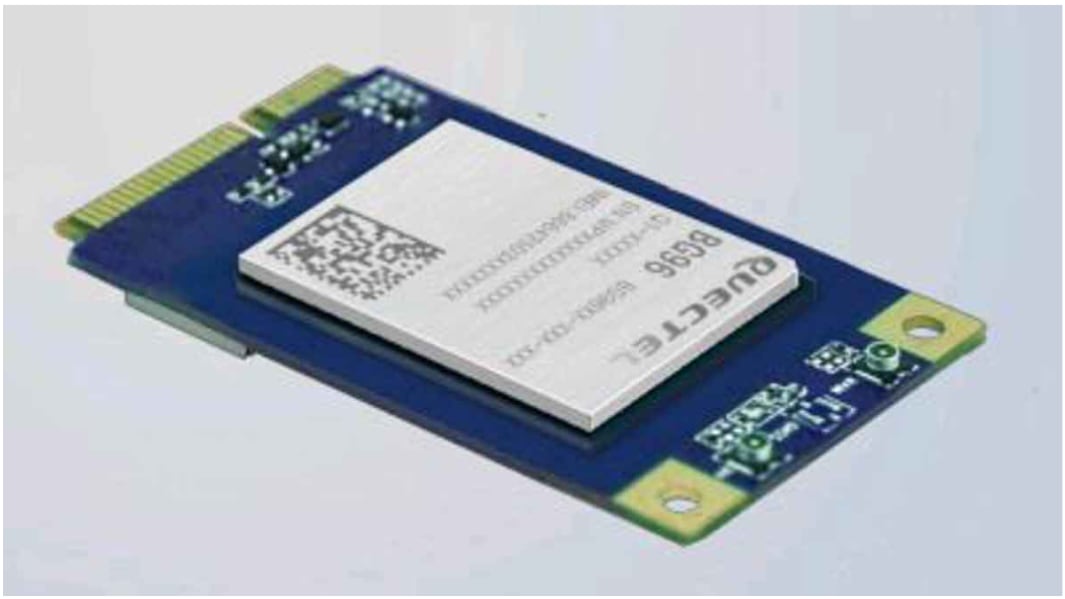

The Quectel BG96 Mini PCIe is a multi-band LTE Cat M1/Cat NB1/EGPRS module adopting standard PCI Express Mini Card form factor(Mini PCIe). It offers a maximum data rate of 375Kbps downlink and 375Kbps uplink. With high integration level and a cost-effective SMT form factor of 51.0mm x 30.0mm x 4.9mm, BG96 enables integrators and developers to easily design their applications and take advantage from the module’s low power consumption and mechanical intensity.
Multi-band LTE Cat M1/Cat NB1/EGPRS module with global coverage
Easy migration from Quectel LTE Mini PCIe modules
Robust mounting and interfaces
