RF Attenuator Straight N Plug to N Socket 10dB, Operating Frequency 12.4GHz
- RS Stock No.:
- 261-6996
- Mfr. Part No.:
- 6810.17.A
- Brand:
- Huber+Suhner
18 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$280.75
(exc. GST)
$308.83
(inc. GST)
| Units | Per unit |
| 1 - 4 | $280.75 |
| 5 - 9 | $259.16 |
| 10 - 19 | $240.65 |
| 20 - 49 | $224.60 |
| 50 + | $210.57 |
- RS Stock No.:
- 261-6996
- Mfr. Part No.:
- 6810.17.A
- Brand:
- Huber+Suhner
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details

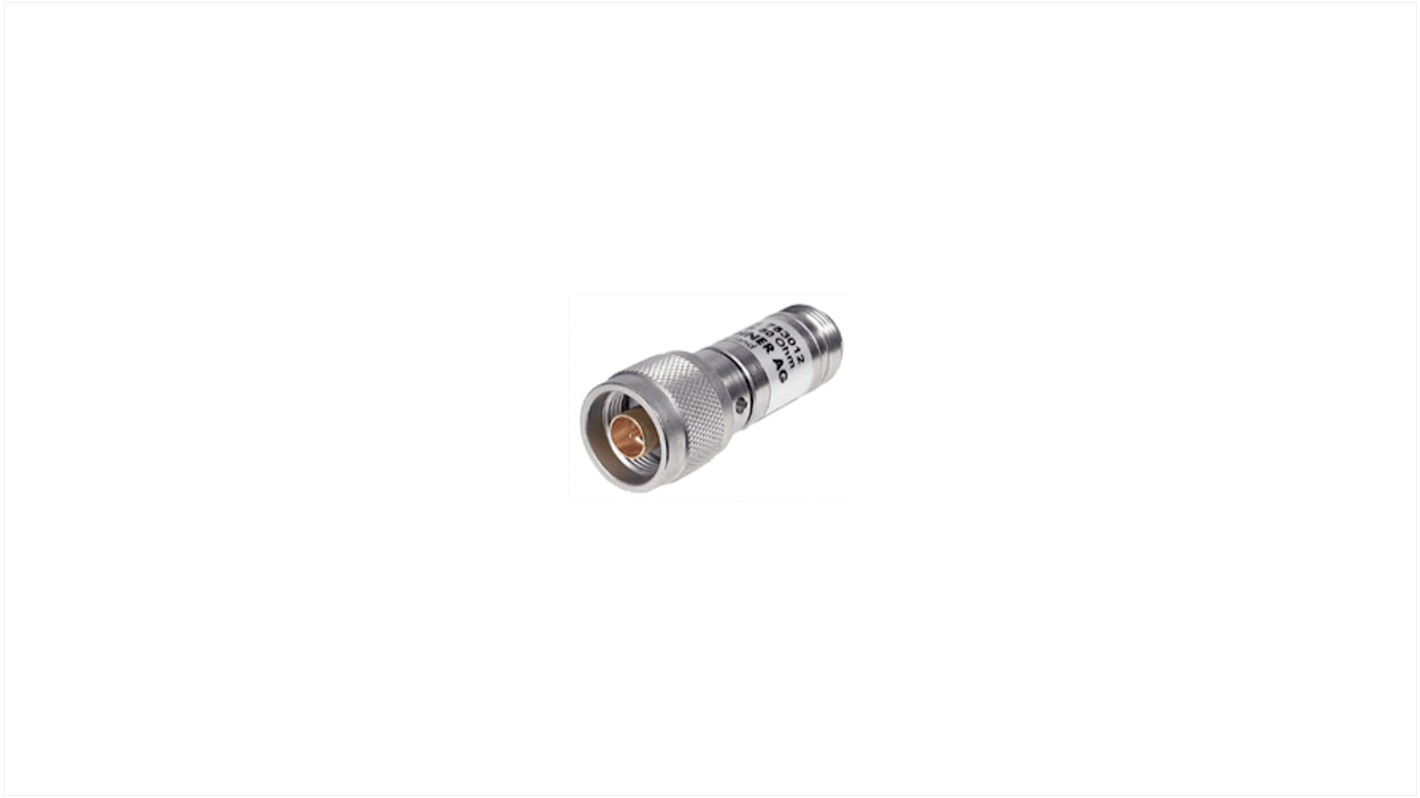

The Huber & Suhner attenuator consist of a N plug to N jack. It weights around 0.069 kg and has a operating temperature of -55°C to 130°C. The body of the plug and jack is made up of brass.
Nominal impedance is 50 Ω
Nominal attenuation is 10 dB
500 watt peak power, 5 μs pulse, 0.05% duty cycle
Nominal attenuation is 10 dB
500 watt peak power, 5 μs pulse, 0.05% duty cycle
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Interface Type | N Plug to N Socket |
| Attenuation | 10dB |
| Body Orientation | Straight |
| Operating Frequency | 12.4GHz |
