Saia-Burgess Illuminated Push Button Switch, Latching, Panel Mount, 16.2mm Cutout, SPDT

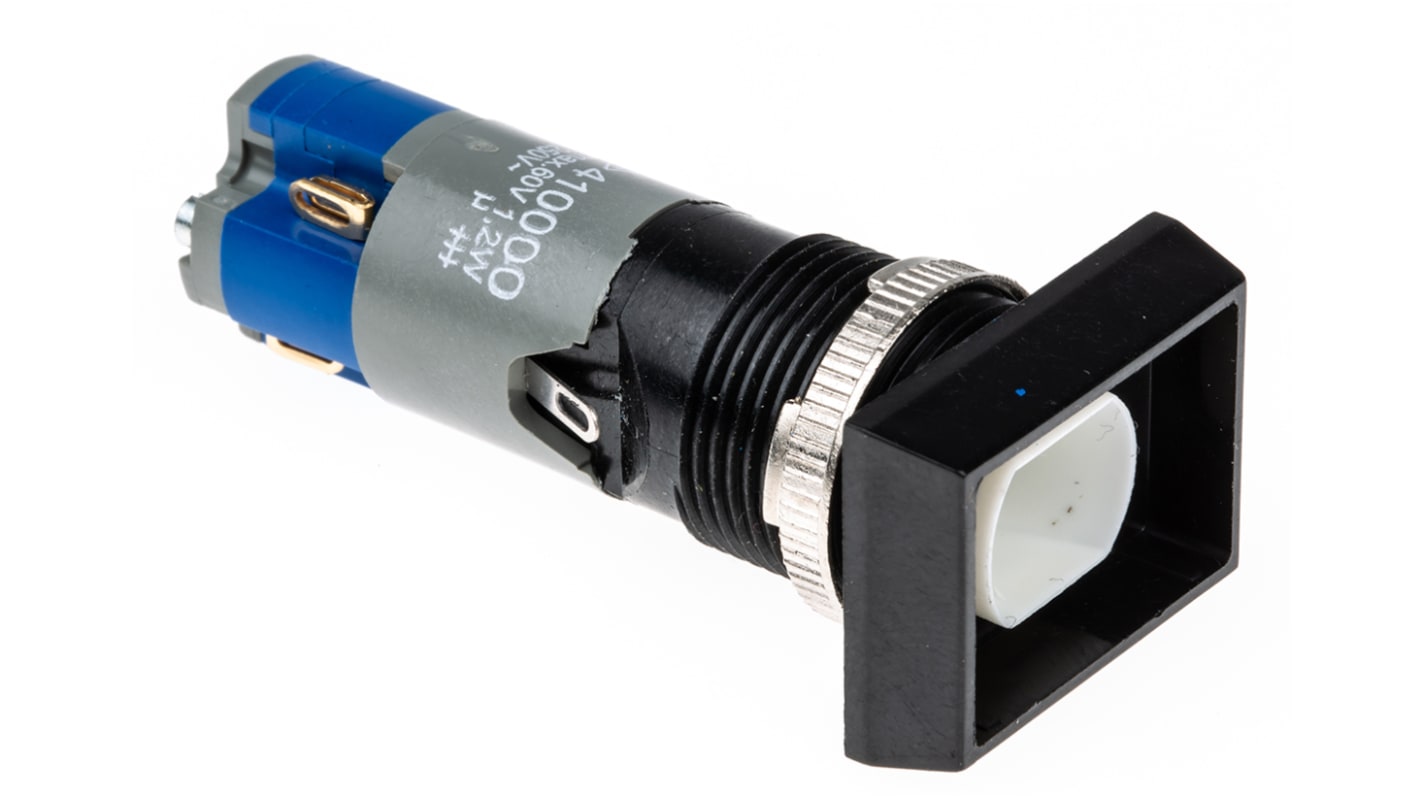

This image is representative of the product range

View all Push Button Switches
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
338-951
Mfr. Part No.:
TH401100625
Brand:
Saia-Burgess
Find similar products by selecting one or more attributes.
Select all

Brand

Saia-Burgess

Switch Operation

Latching

Illuminated

Yes

Panel Cut Out Diameter

16.2mm

Mounting Type

Panel Mount

Push Button Colour

Grey

Contact Configuration

NO/NC

Push Button Style

Rectangular

Contact Current Rating

5 A@ 250 V ac

Contact Material

Plastic

Case Colour

Black

Manufacturer Part No.

TH401100625

Push-button Switches & Indicators


Each switch is supplied with one contact block fitted, but up to two extra contact blocks may be added to make a total of three per switch maximum, see stock no 339-033 for additional contact blocks
Each contact block has one normally open and one normally closed contact
Rated 5A 250Vac, 4A 24Vdc
Mechanical life >106 operations
Dimensions: Max. depth behind panel 45mm, max. panel thickness 7mm, panel cut-out 16.2mm
For suitable lenses / lamps see stock no's (339-005) / (564-447) typically
For 16mm fitting kit consisting of a 1 x lens extraction tool, 1 x 16mm metal tubular spanner and 1 x 16mm plastic side spanner, see stock no 338-894

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.



Illuminated switches, standard


Range of illuminated panel-mounted switches available in square, rectangular and circular momentary or latching versions. Square or rectangular lamp terminals are also available. Suitable lamps: T5·5, see the Optoelectronics / Indicators section.
