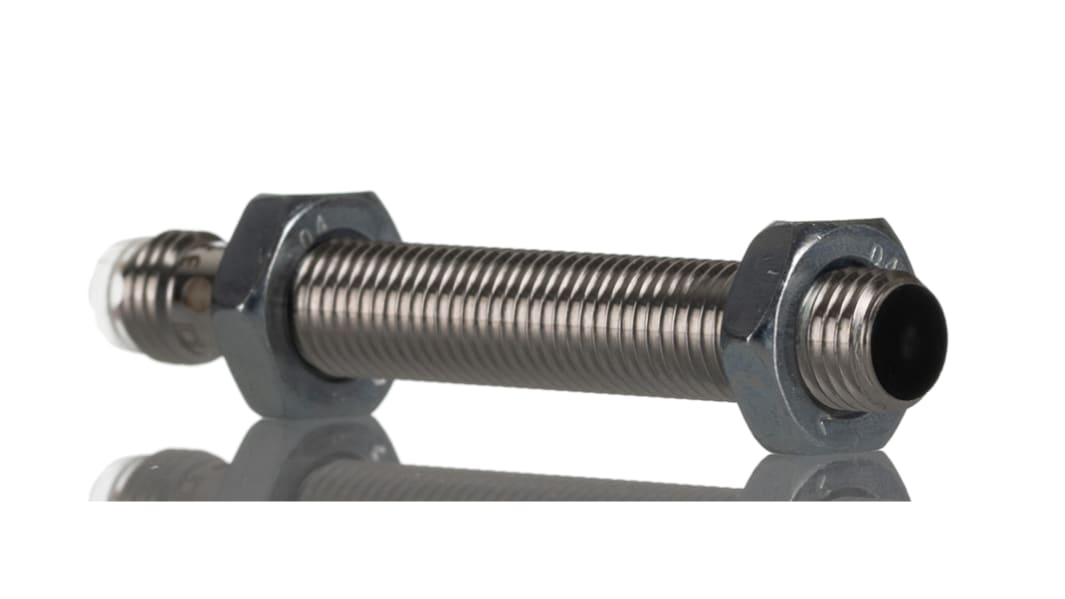

BALLUFF Inductive Barrel-Style Proximity Sensor, M8 x 1, 1.5 mm Detection, PNP Output, 12 → 30 V dc, IP67

RS Stock No.:: 814-1005
Mfr. Part No.:: BES M08MI-PSC15B-S49G
Brand:: BALLUFF

BALLUFF Inductive Barrel-Style Proximity Sensor, M8 x 1, 1.5 mm Detection, PNP Output, 12 → 30 V dc, IP67

8 In AU stock for next working day delivery

61 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$115.46

(exc. GST)

$127.01

(inc. GST)

Units	Per unit
1 +	$115.46

RS Stock No.:: 814-1005
Mfr. Part No.:: BES M08MI-PSC15B-S49G
Brand:: BALLUFF

Technical data sheets

Inductive Sensor BES M08MI-PSC15B-S49G

Legislation and Compliance

COO (Country of Origin):: HU

Product Details

BES 3-Wire M8 Inductive Proximity Sensors

This range of M8 cylindrical inductive proximity sensors from the BALLUFF BES series are designed to be used in a wide variety of metal detection applications with in industrial environments.

Features and benefits

Pre cabled or connector

Flush shielded or non-flush unshielded

3 wire DC configuration

Specifications

Attribute	Value
Body Style	Barrel
Thread Size	M8 x 1
Sensor Technology	Inductive
Output Type	PNP
Detection Range	1.5 mm
Terminal Type	3-Pin M8 Connector
Supply Voltage	12 → 30 V dc
IP Rating	IP67
Length	60mm
Maximum DC Voltage	30V
Mounting Type	Flush
Switching Current	200 mA
Maximum Operating Temperature	+70°C
Housing Material	CuZn
Shielding	Shielded
Maximum Switching Frequency	1kHz
Minimum Operating Temperature	-25°C
Short Circuit Overload Protection	Yes
Reverse Polarity Protection	Yes
