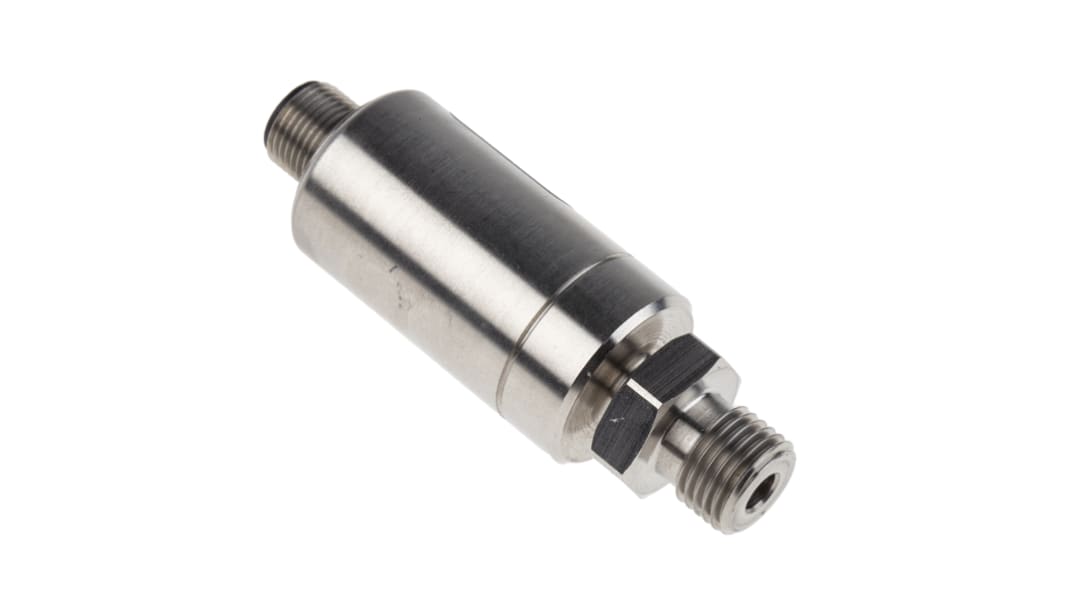

RS PRO Pressure Sensor, 0bar Min, 400bar Max, Analogue Output, Relative Reading

RS Stock No.:: 175-5000
Brand:: RS PRO

RS PRO Pressure Sensor, 0bar Min, 400bar Max, Analogue Output, Relative Reading

1 / 5

Bulk discount available

Subtotal (1 unit)**

$272.75

(exc. GST)

$300.03

(inc. GST)

3 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 4	$272.75
5 +	$224.46

**price indicative

RS Stock No.:: 175-5000
Brand:: RS PRO

RS PRO Pressure Sensors

Introducing RS PRO pressure sensors, also known as pressure transmitters. These devices change pressure forces into electrical signals. They are used to measure the pressure of the specific quantity like air, water and gas by changing the pressure into electrical energy. The probe uses a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless steel housing.

Why would choose these types of pressure sensors?

Pressure sensors with 0-5 V or 4-20mA outputs are transmitters least affected with electrical noise and resistance in signal wires, perfect technology for long distance transmission.

What is the difference between a pressure transmitter and a pressure transducer?

Pressure transmitters regularly get confused with a pressure transducer. A pressure sensor with a current loop output such as 4-20 mA is technical a pressure transmitter. If a pressure sensor provides an mV voltage output or a non-amplified output then it’s a pressure transducer.

Characteristics

The electronics incorporate a microprocessor-based amplifier, requiring no adjustments and giving stable electronics, especially for industrial applications. The device is temperature compensated and supplied with a traceable serial number.

Features and Benefits

• Piezo-resistive thick film ceramic sensor
• Compact and rugged
• Stainless steel body
• Accuracy <±0.25%
• Output 4-20 mA
• Pressure rating: -1 to +9 Bar G
• Threaded mounting
• BSP 1/ 4
• M12 4-pin connector
• CE Compliant

Material Specifications

• Housing: Stainless Steel 316L

• O ring seals: Viton

• Diaphragm: Ceramic Al₂ O₃ 96%

• Media wetted parts: Housing & connection, O ring seal, diaphragm

• Weight: 100 g

• Installation position: Flexible

• Operational Life: >100x 10₆ cycles

• Insulation resistance >50 hms at 50 V dc

• IP67

RS PRO Range IPS-M12 Series Industrial Pressure Sensor Options

4-20mA Pressure Sensor Range

• RS Stock no: 175-4983 = Pressure Transmitter 0-1barG 4-20mA M12
• RS Stock no: 175-5001 = Pressure Transmitter 0-6barG 4-20mA M12
• RS Stock no: 175-5003 = Pressure Transmitter -1 to +9barG 4-20mA M12
• RS Stock no: 175-4985 = Pressure Transmitter 0-10barG 4-20mA M12
• RS Stock no: 175-4990 = Pressure Transmitter 0-16barG 4-20mA M12
• RS Stock no: 175-4981 = Pressure Transmitter -1 to +24barG 4-20m M12
• RS Stock no: 175-4992 = Pressure Transmitter 0-25barG 4-20mA M12
• RS Stock no: 175-4999 = Pressure Transmitter 0-400barG 4-20mA M12
• RS Stock no: 175-4987 = Pressure Transmitter 0-100barG 4-20mA M12
• RS Stock no: 175-4995 = Pressure Transmitter 0-250barG 4-20mA M12

0-5 V Pressure Sensor Range

• RS Stock no: 175-4984 = Pressure Transmitter 0-1barG 0-5V M12
• RS Stock no: 175-5002 = Pressure Transmitter 0-6barG 0-5V M12
• RS Stock no: 175-5005 = Pressure Transmitter -1 to +9barG 0-5V M12
• RS Stock no: 175-4986 = Pressure Transmitter 0-10barG 0-5V M12
• RS Stock no: 175-4991 = Pressure Transmitter 0-16barG 0-5V M12
• RS Stock no: 175-4982 = Pressure Transmitter -1 to +24barG 0-5V M12
• RS Stock no: 175-4993 = Pressure Transmitter 0-25barG 0-5V M12
• RS Stock no: 175-4998 = Pressure Transmitter 0-40barG 0-5V M12
• RS Stock no: 175-4989 = Pressure Transmitter 0-100barG 0-5V M12
• RS Stock no: 175-4996 = Pressure Transmitter 0-250barG 0-5V M12
• RS Stock no: 175-5000 = Pressure Transmitter 0-400barG 0-5V M12

Applications Information

• Temperature testing facilities
• Process control
• Automation
• Industrial measurement

RS PRO Pressure Sensor Gauge

The RS PRO IPS-M12 series pressure sensor has an operating pressure ranging between 0bar and 400bar G(Sealed Gauge). The sensor requires process connection of BSP 1/4 and the housing made from 316L stainless steel with Viton O-ring seals. It uses a piezo-electric thick film ceramic sensor. It has a 4-pin connector.

Features and Benefits

• Service temperature ranges between -20°C and 80°C
• Accuracy is less than ±0.25% FS BFSL
• Analogue output voltage ranges between 0V and 5V
• Nominal pressure output ranges between -1bar to 400bar
• Threaded mount
• Least affected by electrical noise
• Compact and robust
• Includes mating cable and plug assemblies

Applications

• Temperature testing facilities
• Process control
• Automation
• Industrial measurement

Certifications

• CE certified

Pressure Sensors, RS PRO

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Pressure Reading Type	Relative
	Minimum Pressure Reading	0bar
	Maximum Pressure Reading	400bar
	Accuracy	±0.25 %
	Output Type	Analogue
	Process Connection	G1/4
	Electrical Connection	M12 4-pin
	Analogue Output	0 → 5 V
	Series	IPS
	Supply Voltage	9 → 32 V dc
	Housing Material	Stainless Steel
	Maximum Operating Temperature	+80°C
	Mounting Type	Threaded
	Minimum Operating Temperature	-20°C

	Select all
	Brand RS PRO
	Pressure Reading Type Relative
	Minimum Pressure Reading 0bar
	Maximum Pressure Reading 400bar
	Accuracy ±0.25 %
	Output Type Analogue
	Process Connection G1/4
	Electrical Connection M12 4-pin
	Analogue Output 0 → 5 V
	Series IPS
	Supply Voltage 9 → 32 V dc
	Housing Material Stainless Steel
	Maximum Operating Temperature +80°C
	Mounting Type Threaded
	Minimum Operating Temperature -20°C
