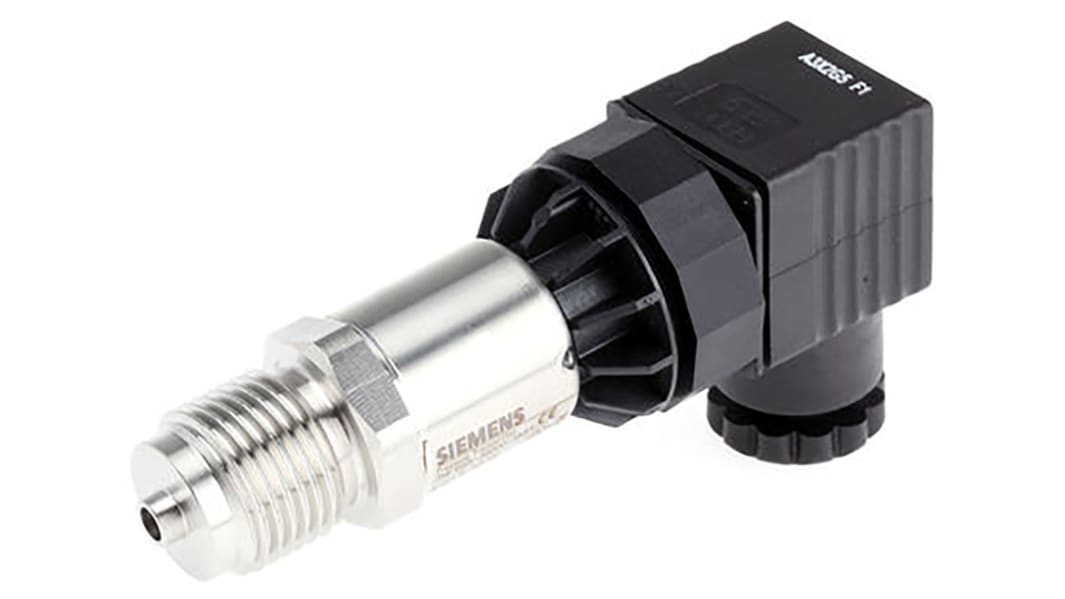

Siemens Gauge for Various Media Pressure Sensor, 40bar Max Pressure Reading , 7 → 33 V dc, IP65, IP67

  • RS Stock No. 125-3720
  • Mfr. Part No. 7MF1565-3CE00-1AA1
  • Manufacturer Siemens
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

Siemens SITRANS P200 Series Pressure Transmitters

Siemens SITRANS P200 pressure transmitter measures the gauge and absolute pressure of liquids, gases and vapours. Featuring a ceramic measuring cell with a thin-film resistance bridge that the operating pressure is transmitted through. The P200 pressure sensors consist of a piezoresistive measuring cell with a diaphragm installed in a stainless steel enclosure.

High measuring accuracy
Rugged stainless steel enclosure
High overload withstand capability
For aggressive and non-aggressive media
For measuring the pressure of liquids, gases and vapours
Compact design

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading 0bar
Maximum Pressure Reading 40bar
Accuracy 0.25 %
Output Type Analogue
Media Measured Aggressive Media, Gas, Liquid, Non-Aggressive Media, Vapour
Process Connection G1/2
Electrical Connection DIN EN 175301 Connector, M16
Analogue Output 4 → 20 mA
Response Time <5 ms
Maximum Current 20 mA
Supply Voltage 7 → 33 V dc
Housing Material Stainless Steel
IP Rating IP65, IP67
Minimum Operating Temperature -25°C
Mounting Type Threaded
Maximum Operating Temperature +85°C
5 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 296.01
(exc. GST)
$ 325.61
(inc. GST)
units
Per unit
1 +
$296.01
