Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Bourns
	Sensor Type	Absolute Pressure Sensor
	Product Type	Absolute Pressure Sensor
	Mount Type	Manifold
	Pin Count	3
	Minimum Supply Voltage	4.5V
	Maximum Operating Pressure	100 psi
	Accuracy	0.25 %FS
	Maximum Supply Voltage	5.5V
	Port Type	Single
	Maximum Operating Temperature	150°C
	Length	12.8mm
	Standards/Approvals	RoHS Compliant
	Series	BPS130
	Width	8.9 mm
	Height	1mm
	Minimum Operating Pressure	0psi
	Minimum Operating Temperature	-40°C
	Automotive Standard	No

	Select all
	Brand Bourns
	Sensor Type Absolute Pressure Sensor
	Product Type Absolute Pressure Sensor
	Mount Type Manifold
	Pin Count 3
	Minimum Supply Voltage 4.5V
	Maximum Operating Pressure 100 psi
	Accuracy 0.25 %FS
	Maximum Supply Voltage 5.5V
	Port Type Single
	Maximum Operating Temperature 150°C
	Length 12.8mm
	Standards/Approvals RoHS Compliant
	Series BPS130
	Width 8.9 mm
	Height 1mm
	Minimum Operating Pressure 0psi
	Minimum Operating Temperature -40°C
	Automotive Standard No

Datasheet BPS130-HA100P-3S

COO (Country of Origin):: US

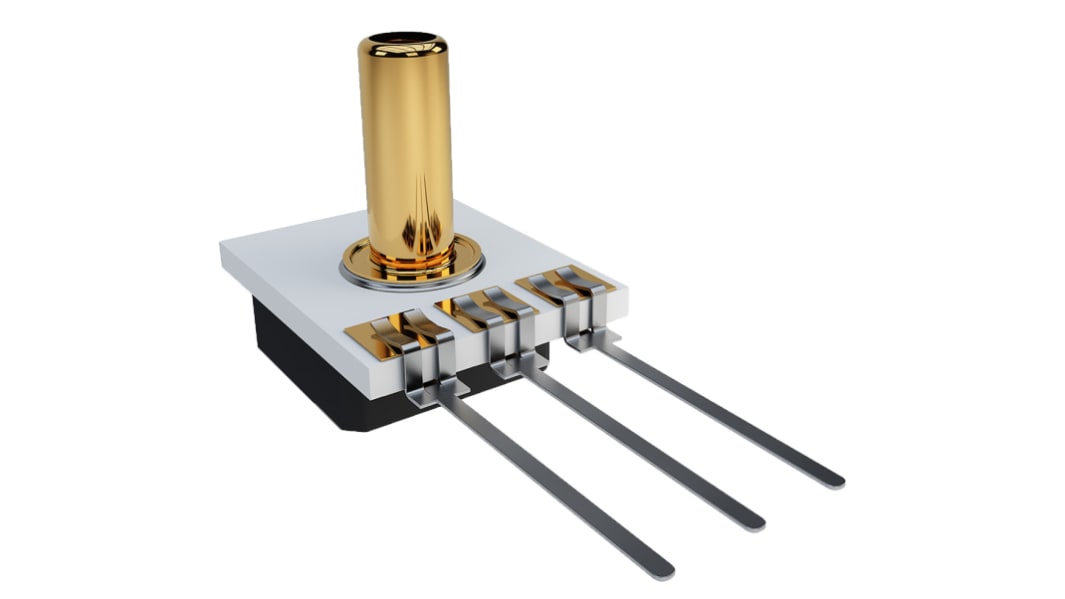

BPS pressure sensors are based on innovative MEMS technology which provides extremely accurate condition readings in a miniature package size. The sensing element is comprised of embedded piezoresistive elements bonded to a chemically etched silicon diaphragm.

Compensated output

Direct-media monitoring

Gauge and absolute types

Isolated on board electronics

Gold-plated Kovar™ port option

Applications

Industrial:

Refrigerant systems

Water level & pressure monitoring

Medical Devices(low/medium risk):

Diagnostic/analysis equipment

Heavy Equipment:

Oil & fuel systems

Exhaust gas pressure sensing

Bourns Absolute Pressure SensorManifold 3
