- RS Stock No.:
- 253-0348
- Mfr. Part No.:
- MAT3-D20.B59
- Brand:
- Bourdon
2 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$22.06
(exc. GST)
$24.27
(inc. GST)
Units | Per unit |
1 + | $22.06 |
- RS Stock No.:
- 253-0348
- Mfr. Part No.:
- MAT3-D20.B59
- Brand:
- Bourdon
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details

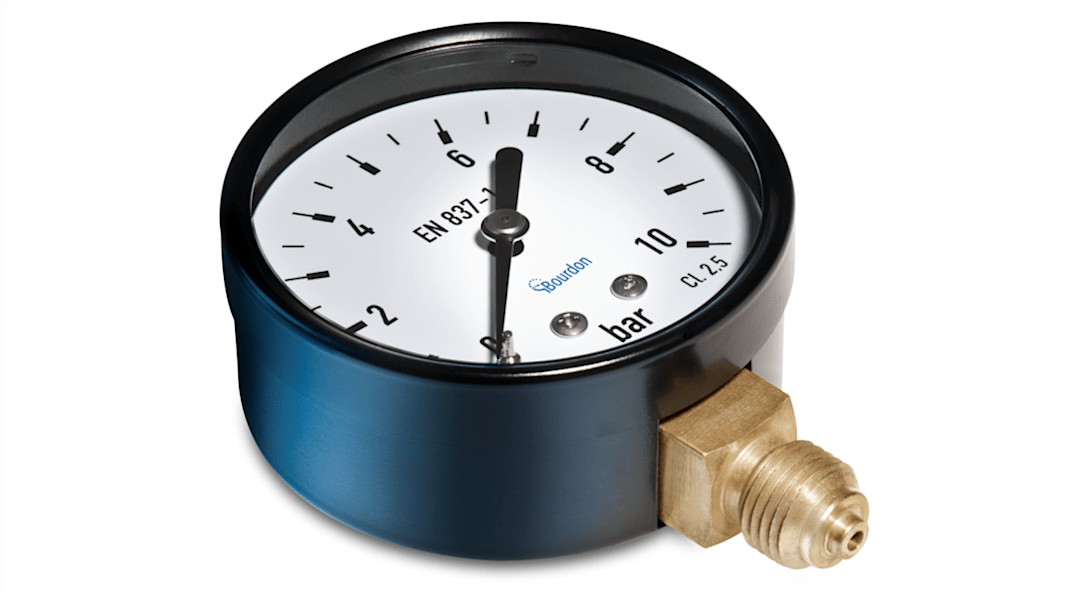

The Bourdon MAT3 is pressure gauge ecoline dry steel case which has nominal size of Ø 63 with G1/4 connection. It is protected with IP32 rating.
Class 2.5 according to EN 837-1
Wetted parts Brass
OEM applications Technical
Wetted parts Brass
OEM applications Technical
Specifications
Attribute | Value |
---|---|
Maximum Pressure Measurement | 0bar |
Mounting Type | Bottom Entry |
Minimum Pressure Measurement | -1bar |
Display Type | Analogue |
Connection Size | G 1/4 |
Gauge Outside Diameter | 63mm |
