- RS Stock No.:
- 894-7058
- Mfr. Part No.:
- TS1110-20ITQ1633
- Brand:
- Silicon Labs
Available for back order.
Added
Price (ex. GST) Each (In a Pack of 4)
$2.593
(exc. GST)
$2.852
(inc. GST)
Units | Per unit | Per Pack* |
4 - 16 | $2.593 | $10.372 |
20 - 76 | $2.565 | $10.26 |
80 - 196 | $2.54 | $10.16 |
200 - 396 | $2.515 | $10.06 |
400 + | $2.49 | $9.96 |
*price indicative |
- RS Stock No.:
- 894-7058
- Mfr. Part No.:
- TS1110-20ITQ1633
- Brand:
- Silicon Labs
Technical data sheets
Legislation and Compliance
Product Details

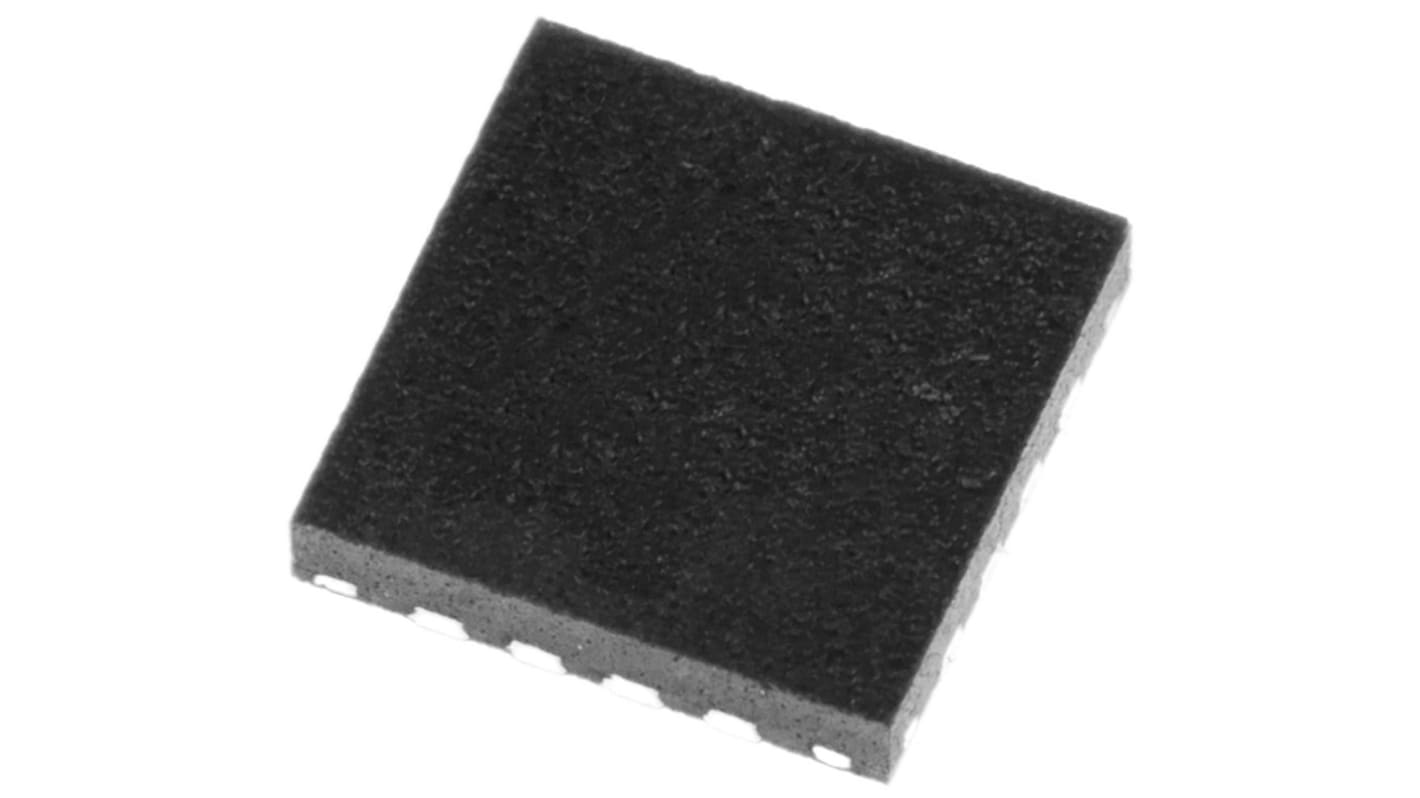

Current Sensing Amplifiers, Silicon Labs
The range of unidirectional and bi-directional, voltage-output current-sense amplifiers from Silicon Labs consume just 1 μA supply current. These high-side current-sense amplifiers exhibit a maximum 100-μV VOS and a 0.6% gain error. Both specifications are optimised for precision current measurement.
For high-side bidirectional current-sensing applications, the current sense amplifier devices are self-powered and feature a wide input common-mode voltage range from 2 V to 25 V.
For high-side bidirectional current-sensing applications, the current sense amplifier devices are self-powered and feature a wide input common-mode voltage range from 2 V to 25 V.
Current Sensing Amplifiers have a voltage output that is proportional to the volt drop across a very low value resistor, usually in a high-current power rail. Hence they measure the current flowing in that power rail.
Specifications
Attribute | Value |
---|---|
Mounting Type | Surface Mount |
Package Type | QFN |
Pin Count | 16 |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Dimensions | 3 x 3 x 0.75mm |
