Aratas PCB Power Relay, 12V ac Coil, 5A Switching Current, DPDT

RS Stock No.:: 205-1879
Mfr. Part No.:: G2R-2 AC12
Brand:: Aratas

Aratas PCB Power Relay, 12V ac Coil, 5A Switching Current, DPDT

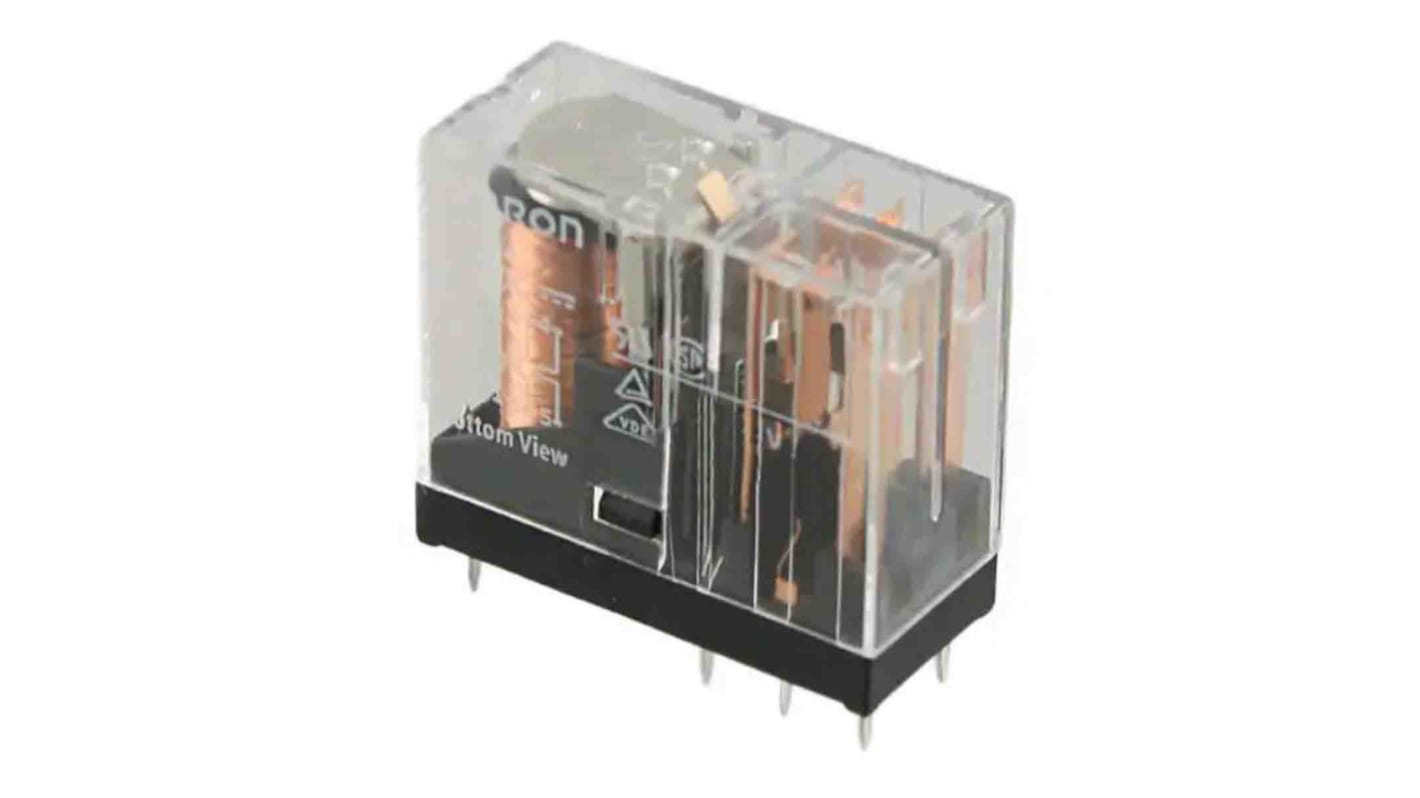

This image is representative of the product range

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

RS Stock No.:: 205-1879
Mfr. Part No.:: G2R-2 AC12
Brand:: Aratas

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Aratas
	Product Type	Power Relay
	Coil Voltage	12V ac
	Contact Configuration	DPDT
	Mount Type	PCB
	Series	G2R
	Terminal Type	PCB Pin
	Switching Current	5A
	Switching DC Voltage	125V dc
	Switching AC Voltage	380V ac
	Minimum Operating Temperature	-40°C
	Coil Resistance	65Ω
	Maximum Operating Temperature	70°C
	Standards/Approvals	RoHS
	Width	13mm
	Length	29mm
	Height	29.5mm
	Coil Power	900mW
	Contact Material	Silver Alloy
	Contact Resistance	50mΩ

	Select all
	Brand Aratas
	Product Type Power Relay
	Coil Voltage 12V ac
	Contact Configuration DPDT
	Mount Type PCB
	Series G2R
	Terminal Type PCB Pin
	Switching Current 5A
	Switching DC Voltage 125V dc
	Switching AC Voltage 380V ac
	Minimum Operating Temperature -40°C
	Coil Resistance 65Ω
	Maximum Operating Temperature 70°C
	Standards/Approvals RoHS
	Width 13mm
	Length 29mm
	Height 29.5mm
	Coil Power 900mW
	Contact Material Silver Alloy
	Contact Resistance 50mΩ

Datasheet - G2R-2 AC12

COO (Country of Origin):: ID

The Omron Electronic Components PCB Power Relay with 1 general purpose power relays of single pole 10A and double pole 5 A. AC and DC types are both available for operational coils.

50mO maximum contact resistance

-40°C to 70°C operating temperature

100000 operations minimum electrical durability

8mm clearance between coil and contacts
