Infineon EVAL-1EDS20I12SV IGBT Gate Driver for 1EDS20I12SV for DC-DC Converter, Drives, UPS, Welding
- RS Stock No.:
- 234-2077
- Mfr. Part No.:
- EVAL1EDS20I12SVTOBO2
- Brand:
- Infineon
3 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$358.47
(exc. GST)
$394.32
(inc. GST)
Units | Per unit |
|---|---|
| 1 - 2 | $358.47 |
| 3 - 4 | $354.90 |
| 5 + | $351.36 |
- RS Stock No.:
- 234-2077
- Mfr. Part No.:
- EVAL1EDS20I12SVTOBO2
- Brand:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details

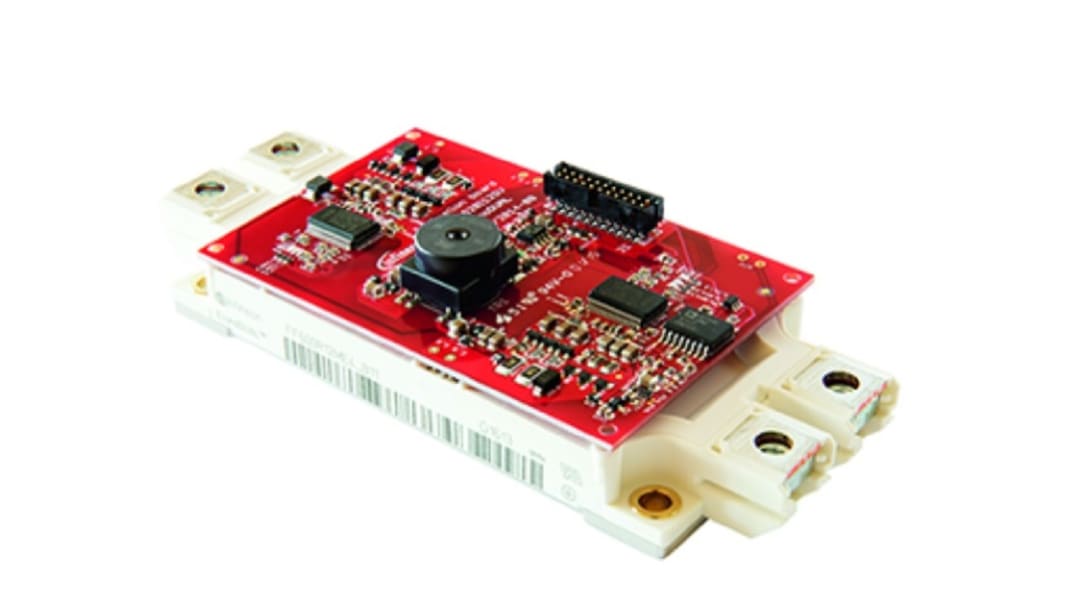

The Infineon evaluation board is use to offer a reliable platform for evaluation of the product features provided by the EiceDRIVER 1EDS20I12SV in combination with EconoDUAL3 modules from Infineon.
Soft turn-off shut down
Two-level turn-off
Signature check of driver IC
Overcurrent protection for sense IGBTs and conventional IGBTs
Read out of each gate drive status
Two-level turn-off
Signature check of driver IC
Overcurrent protection for sense IGBTs and conventional IGBTs
Read out of each gate drive status
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Power Management Function | IGBT Gate Driver |
| For Use With | DC-DC Converter, Drives, UPS, Welding |
| Kit Classification | Evaluation Board |
| Featured Device | 1EDS20I12SV |
| Kit Name | EVAL-1EDS20I12SV |
