STMicroelectronics USB Power Controller for STCH03 for To develop adapters
- RS Stock No.:
- 199-1236
- Mfr. Part No.:
- EVLSTCH03-45WPD
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 199-1236
- Mfr. Part No.:
- EVLSTCH03-45WPD
- Brand:
- STMicroelectronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Power Management Development Kit | |
| Power Management Function | USB Power Controller | |
| For Use With | To develop adapters | |
| Kit Classification | Development Kit | |
| Featured Device | STCH03 | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Power Management Development Kit | ||
Power Management Function USB Power Controller | ||
For Use With To develop adapters | ||
Kit Classification Development Kit | ||
Featured Device STCH03 | ||
- COO (Country of Origin):
- IT

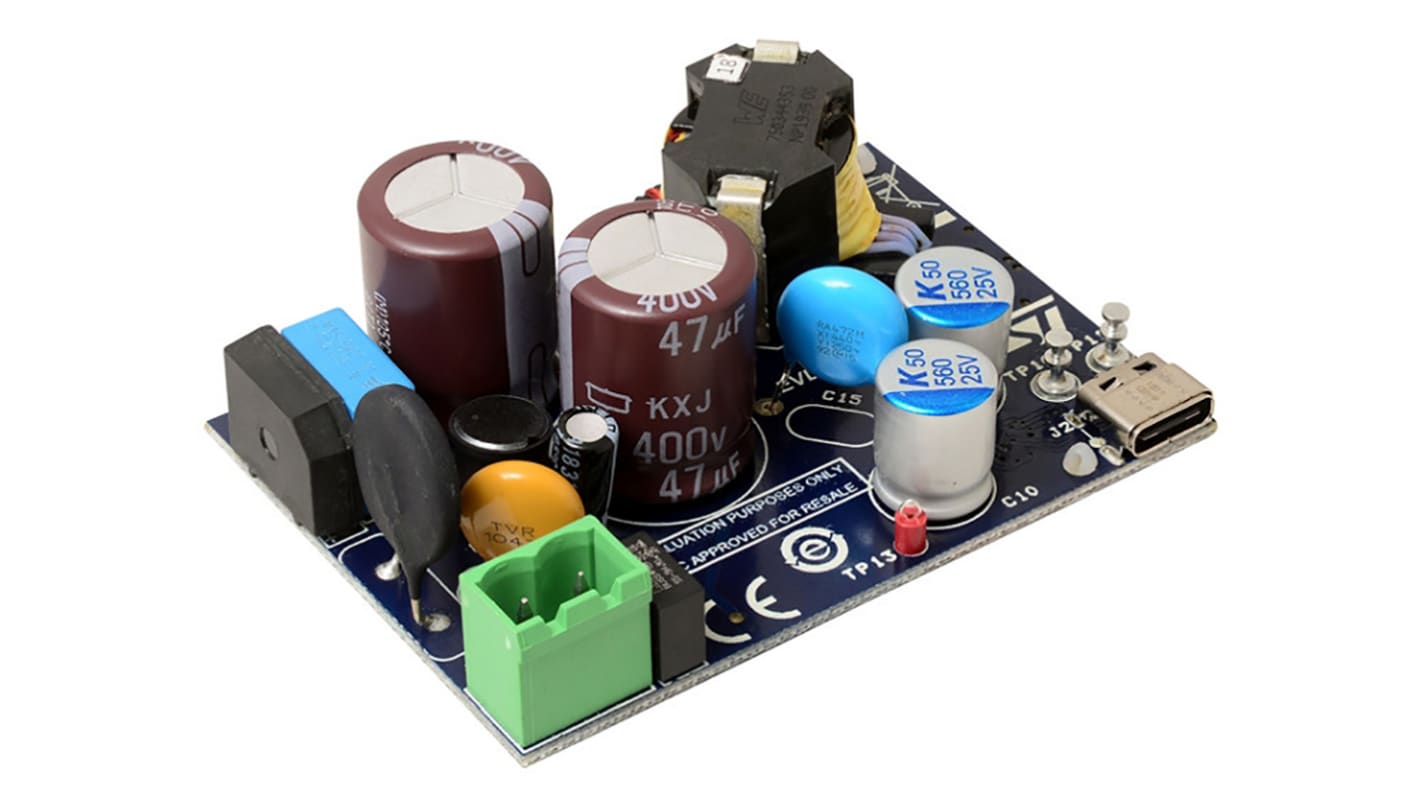

The STM Electronics EVLSTCH03 45W USB Type-C® Power Delivery 3.0 adapter is USB-IF certified. It is an isolated power supply with a standalone USB PD controller. This evaluation board implements a quasi-resonant fly back converter based on the STCH03 controller with optocoupler feedback for voltage regulation at the primary side. To increase the system efficiency, the rectification is based on the SRK1001 adaptive synchronous rectification controller at the secondary side.
Maximum efficiency at full load
No-load consumption (no cable plug-in)
Safety according to EN60065
EMI according to EN55022 - Class B
RoHS compliant
