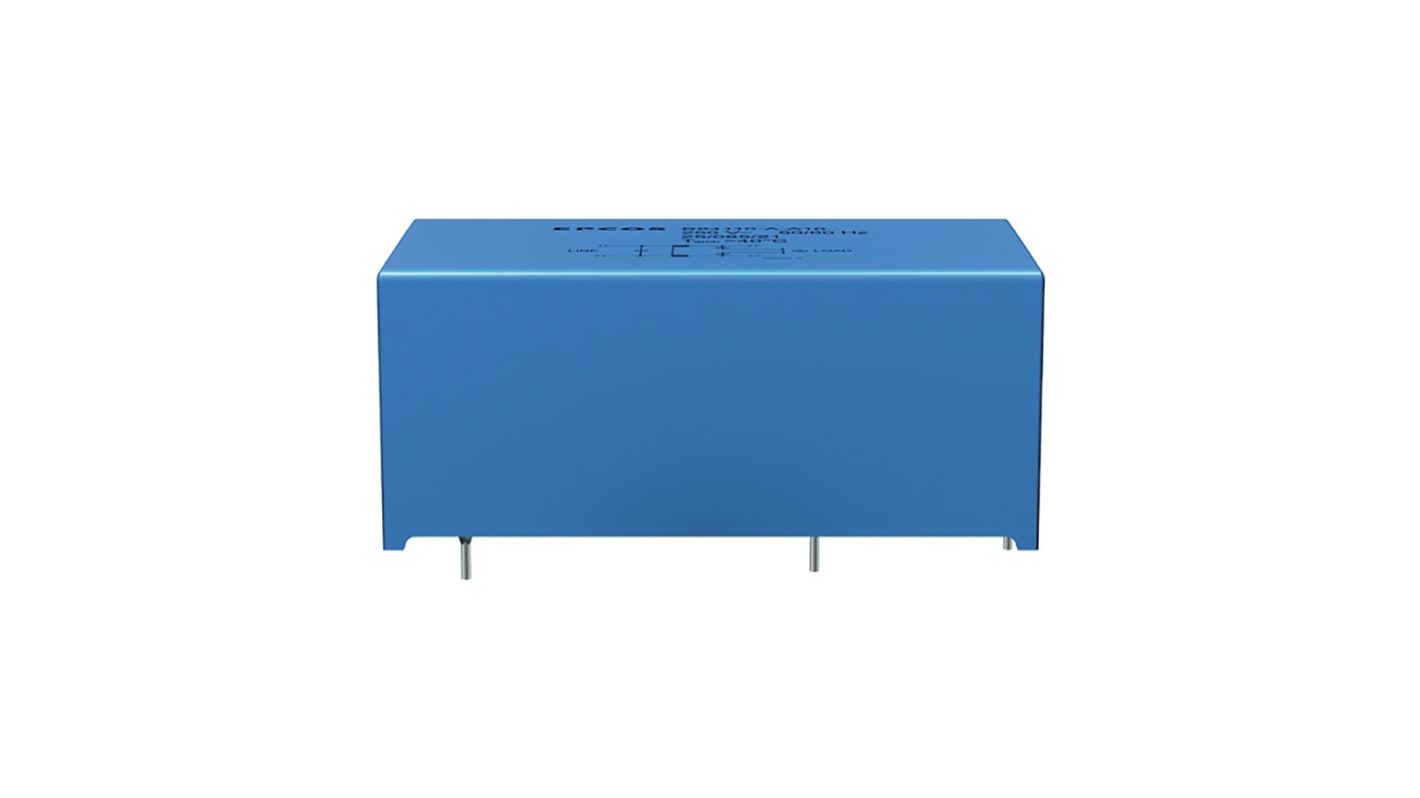

EPCOS, B84110A 6A 250 V ac/dc 50/60Hz, Through Hole Power Line Filter, Pin, Single Phase

  • RS Stock No. 191-9735
  • Mfr. Part No. B84110A0000A060
  • Manufacturer EPCOS
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): HU
Product Details

High insertion loss
For PCB mounting
Cost-effective EMC solution

Applications
Low and medium switch-mode power supplies
Data systems, gambling machines, small-size equipment, industrial electronics
DC applications

Specifications
Attribute Value
Maximum Current Rating 6A
Maximum Voltage Rating 250 V ac/dc
Mounting Type Through Hole
Termination Style Pin
Number of Phases 1
Series B84110A
Operating Frequency 50/60Hz
Length 56mm
Depth 30mm
Height 23mm
Dimensions 56 x 30 x 23mm
Minimum Operating Temperature -25°C
Maximum Operating Temperature +100°C
256 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each
$ 16.70
(exc. GST)
$ 18.37
(inc. GST)
units
Per unit
1 - 9
$16.70
10 - 24
$15.77
25 - 49
$13.11
50 - 99
$12.69
100 +
$12.27
