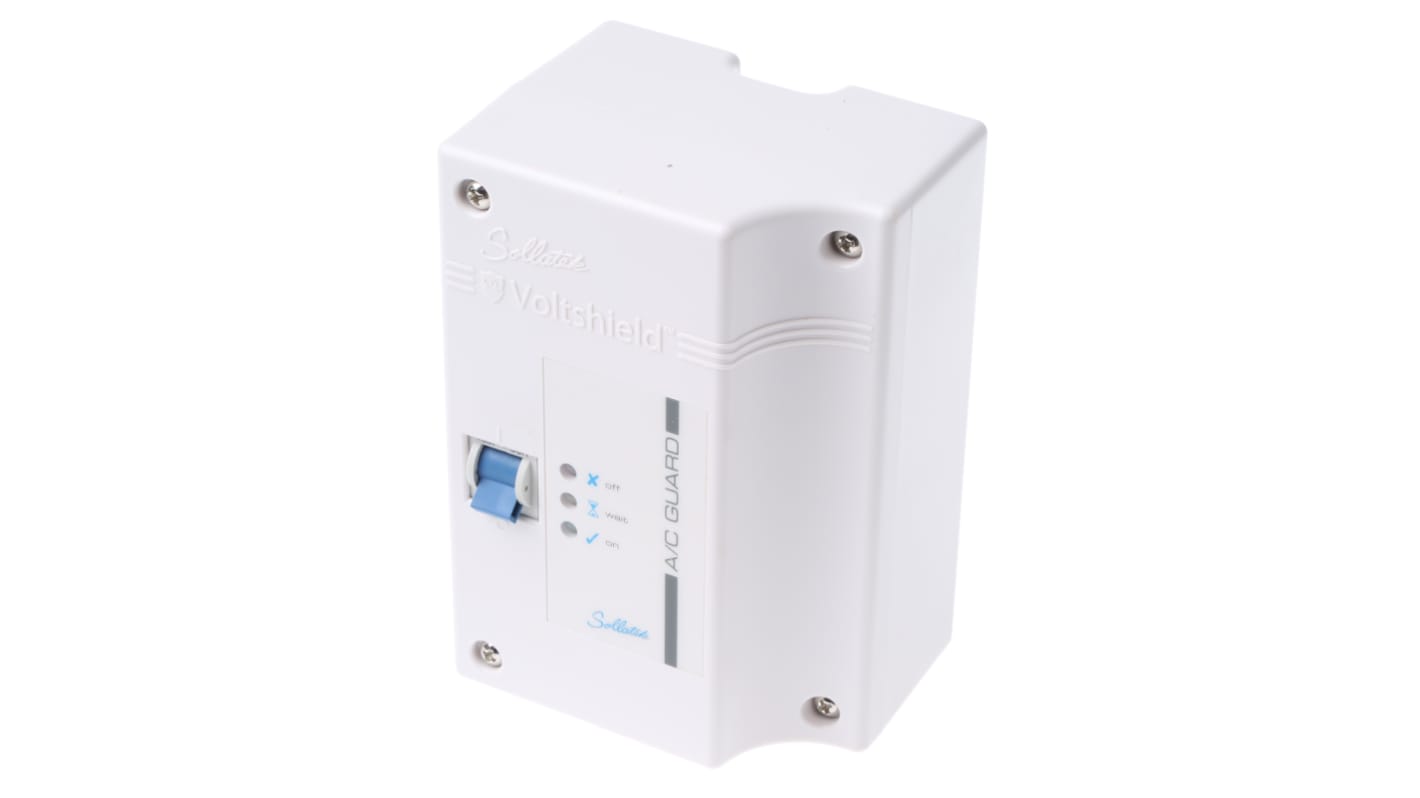

Sollatek Voltage Switcher 20A Varistor, 4600VA, Wall Mount

  • RS Stock No. 707-9851
  • Mfr. Part No. 92622020
  • Manufacturer Sollatek
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Voltshield A/C Guard Microprocessor Voltage Switcher, Air conditioning and Commercial Fridges

Sollatek Voltshield AC Guards have been developed for use with office and home Air Conditioning equipment (including split units) and commercial and industrial refrigeration equipment. Voltshield AC Guards protect Air Conditioning and refrigeration units from low voltage ’brownouts’, power fluctuations, power back surges, surges and spikes. When a problem occurs, the AC Guard instantly switches off the Air Conditioning unit and once the mains supply has stabilised, it reconnects.

These voltage switchers automatically provide complete protection when wired between your appliance and the mains. Voltshield AC guards can cater for voltage fluctuations across a large range, and the output voltage is accurate to within fine tolerances.

All electronic construction with no moving parts
Single phase
Overload and short circuit protection is provided by the circuit breaker
Direct wiring adds extra security
Overload protection
4 min intelligent start-up delay before power reconnection protects against back surges, prevents frequent start stops and avoids unnecessary down time
16A, 20A and 25A options are available in this range

Standards

BS EN60730

Specifications
Attribute Value
Input Voltage 230V ac
Output Power 4600VA
Output Current 20A
Mounting Type Wall Mount
Maximum Operating Frequency 75Hz
Maximum Temperature +55°C
Minimum Operating Frequency 45Hz
Minimum Temperature 0°C
Protection Type Varistor
Voltage Protection Mode Differential
Wiring Configuration L N E
Standards Met ISO9001:2008
Electrical Phase 1
On back order for despatch 01/11/2019, delivery within 5 working days from despatch date.
Price (ex. GST) Each
$ 62.77
(exc. GST)
$ 69.05
(inc. GST)
units
Per unit
1 - 4
$62.77
5 - 14
$60.35
15 - 29
$58.19
30 +
$56.26
