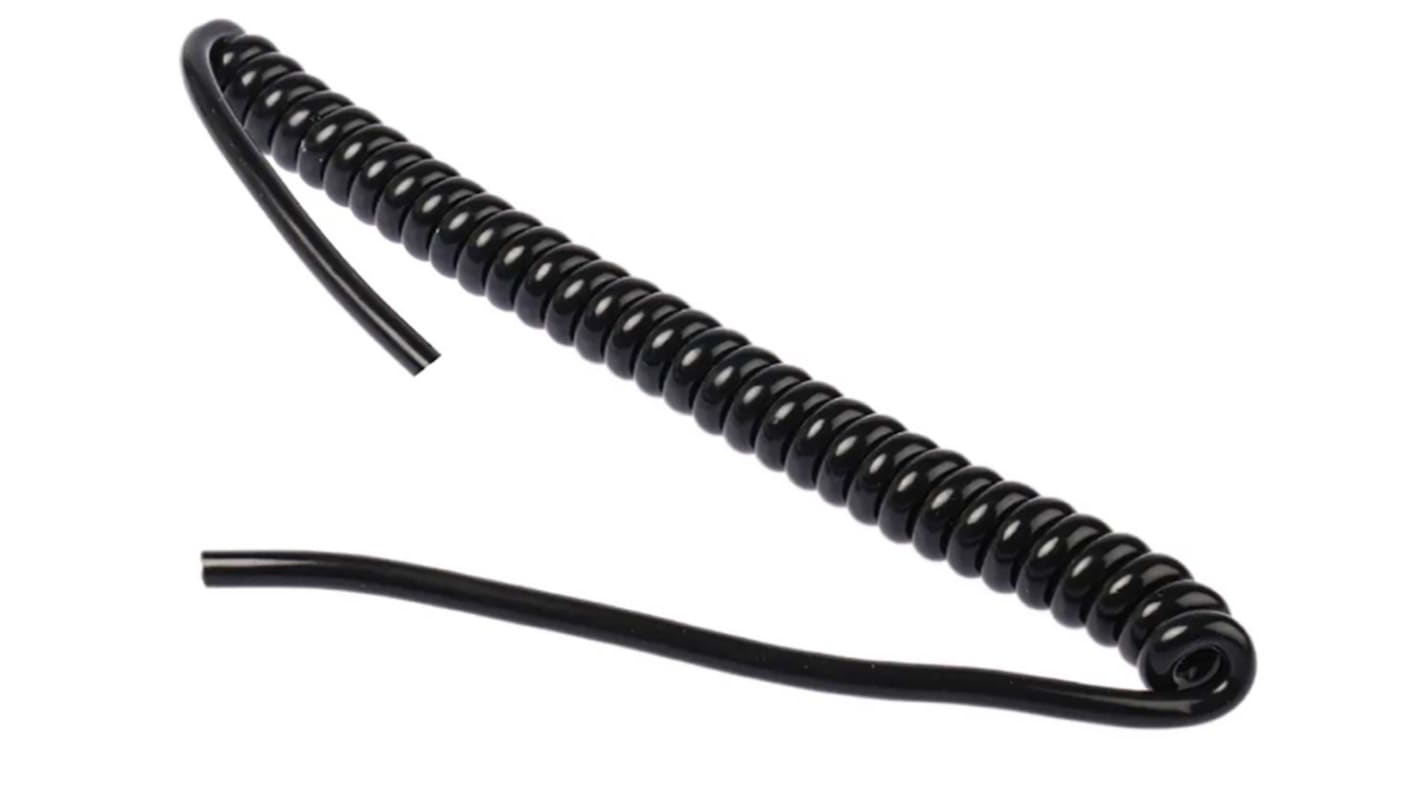

RS PRO, Coiled, 0.5m 18 Core, Black TPU Power Cable +50°C
- RS Stock No.:
- 208-0195
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)**
$132.46
(exc. GST)
$145.71
(inc. GST)
116 In Global stock for delivery within 10 working day(s)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Real time qty checker
Units | Per unit |
---|---|
1 - 4 | $132.46 |
5 + | $109.04 |
**price indicative
- RS Stock No.:
- 208-0195
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cross Sectional Area | 0.14 mm² | |
Number of Cores | 18 | |
Sheath Colour | Black | |
Length | 0.5m | |
Cable Type | Coiled | |
Sheath Material | TPU | |
Outer Diameter | 8mm | |
Voltage Rating | 250 V | |
Size of Strands | 0.49 mm | |
Minimum Operating Temperature | -5°C | |
Maximum Operating Temperature | +50°C | |
Cable Shape | Coiled Multicore | |
Uncoiled Length | 2 m | |
Conductor Resistance | 130 Ω/km@20°C | |
Coil Diameter | 29mm | |
Insulation Material | PVC | |
Conductor Material | Stranded Bare Copper | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.14 mm² | ||
Number of Cores 18 | ||
Sheath Colour Black | ||
Length 0.5m | ||
Cable Type Coiled | ||
Sheath Material TPU | ||
Outer Diameter 8mm | ||
Voltage Rating 250 V | ||
Size of Strands 0.49 mm | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +50°C | ||
Cable Shape Coiled Multicore | ||
Uncoiled Length 2 m | ||
Conductor Resistance 130 Ω/km@20°C | ||
Coil Diameter 29mm | ||
Insulation Material PVC | ||
Conductor Material Stranded Bare Copper | ||
