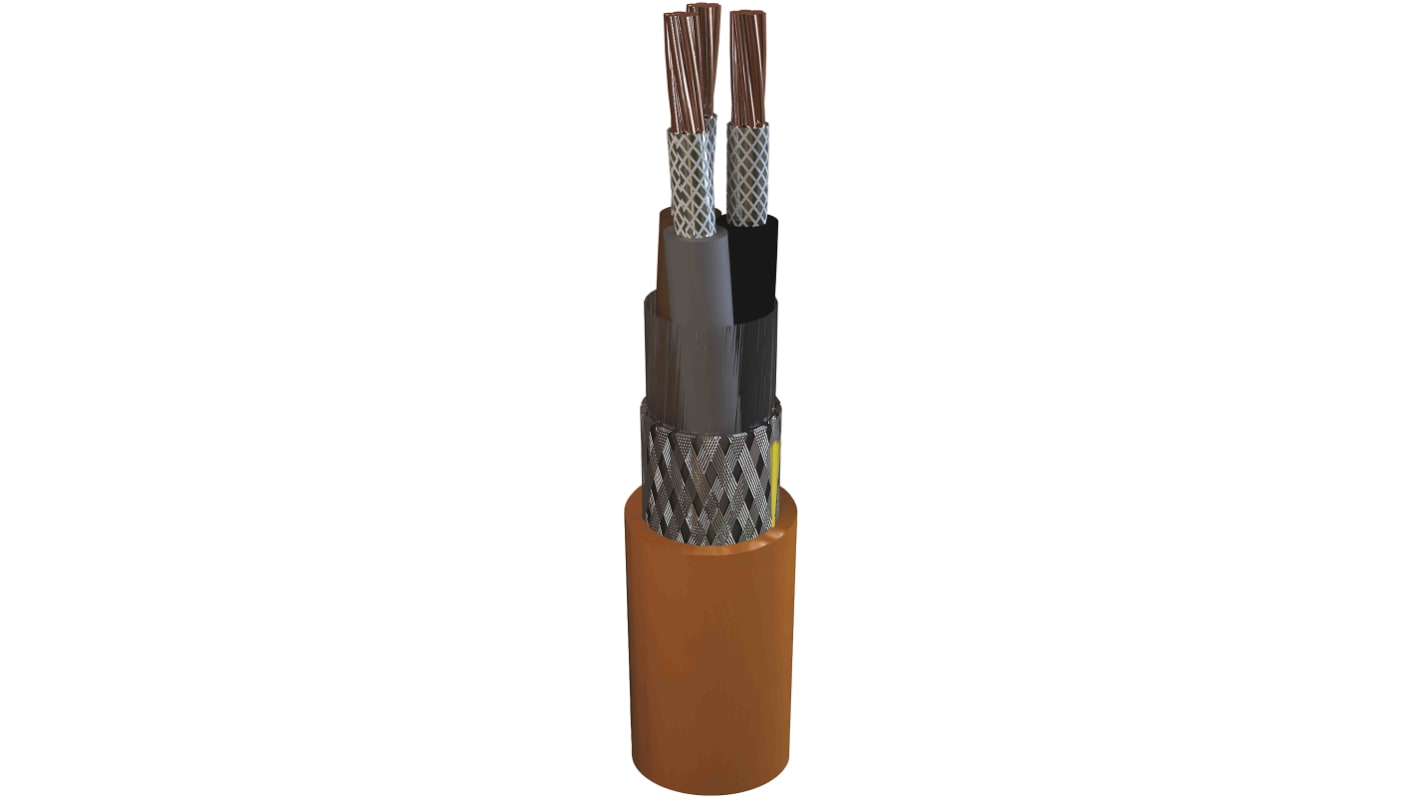

AXINDUS 3 Core Power Cable, 1.5 mm², 100m Armoured, Grey, 600 , 1000 V
- RS Stock No.:
- 201-0612
- Mfr. Part No.:
- 27102
- Brand:
- AXINDUS
On back order for despatch 06/08/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) 1 Reel of 100 Metre(s)
$3,903.89
(exc. GST)
$4,294.28
(inc. GST)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | $3,903.89 | $39.039 |
| *price indicative | ||
- RS Stock No.:
- 201-0612
- Mfr. Part No.:
- 27102
- Brand:
- AXINDUS
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- NL
Product Details
The CAE Multimedia Connect lightweight, fire resistant, armoured, reduced diameter low voltage power cables for power and lighting applications in all ship areas.
Class 2 conductors
Lightweight, reduced diameter
Halogen free and low smoke
Fire resistant according IEC60331 1/2
Tinned copper wire braid armouring
Lightweight, reduced diameter
Halogen free and low smoke
Fire resistant according IEC60331 1/2
Tinned copper wire braid armouring
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 1.5 mm² |
| Number of Cores | 3 |
| Sheath Colour | Grey |
| Length | 100m |
| Armoured | Yes |
| Outer Diameter | 10.1mm |
| Voltage Rating | 600 , 1000 V |
| Series | MarineLine YZp 0 |
| American Wire Gauge | 15 AWG |
| Standards Met | IEC 60092-350/-360/-353 |
| Conductor Material | Copper |
| Fire Behaviour | Flame Retardant, Halogen Free |
