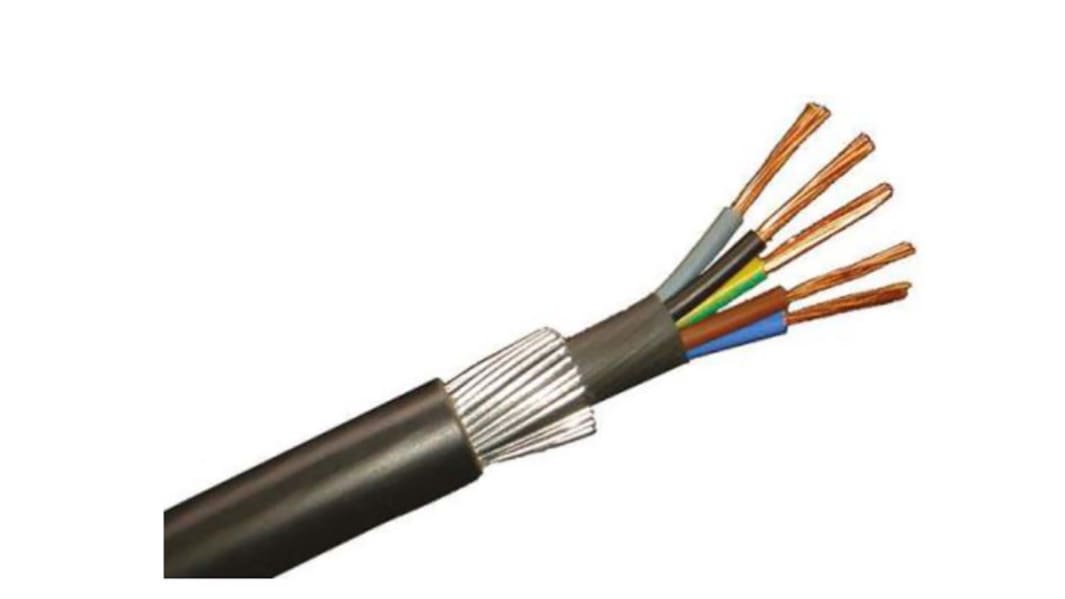

RS PRO 2.5 mm² 5 Core Power Cable, Black PVC, 50m

View all Power Cable
Bulk discount available

Subtotal (1 reel of 50 metres)*

$761.09

(exc. GST)

$837.20

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 - 4$761.09$15.222
5 +$626.39$12.528

*price indicative

RS Stock No.:
196-4697
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

2.5 mm²

Number of Cores

5

Sheath Colour

Black

Length

50m

Armoured

Yes

Sheath Material

PVC

Outer Diameter

14.5mm

CPR Certification

Eca

Voltage Rating

600/1000 V

Conductor Material

Annealed Copper

Maximum Operating Temperature

+90°C

Standards Met

BASEC

Core Strands

7/0.67 mm

Minimum Operating Temperature

-15°C

American Wire Gauge

13 AWG

COO (Country of Origin):
GB

RS PRO 5-Core Screened Industrial BASEC Cable, Black, 2.5 mm², 50 m Reel


This heavy-duty, durable 5-core cable from RS PRO has been created to work in industrial environments and workspaces. The annealed copper cores allow a high degree of flexibility, while the polyvinyl chloride (PVC) sheathe protects it from chemical, heat and mechanical damage.
This cable's five colour-coded cores are screened with steel wire to prevents electromagnetic interference and keep the cable working at all times. The screened steel has been galvanised, which reduces the chances of the wire rusting and provides long-lasting protection from corrosion.
The hardness and durability of this cable make it suitable for both underground and outdoor cabling. It's most commonly used for industrial wiring and mains distribution.

Features and Benefits


• Annealed copper conductor material
• Core strand size of 0.67 mm
• Cross-sectional area of 2.5 mm²
• Length of 50 m
• Operating temperature range of -15°C to +90°C
• Five cores
• Outer diameter of 14.5 mm
• Galvanised steel braid screen type
• Screened
• Black sheath colour
• Polyvinyl chloride (PVC) sheath material
• Shielded
• Meets British Approvals Service for Cables (BASEC) standards
• Voltage rating of 600 V, 1000 V
