Alps Alpine 50kΩ Rotary Potentiometer 1-Gang Through Hole, RK09D1130A1L

RS Stock No.:: 729-3644
Mfr. Part No.:: RK09D1130A1L
Brand:: Alps Alpine

Alps Alpine 50kΩ Rotary Potentiometer 1-Gang Through Hole, RK09D1130A1L

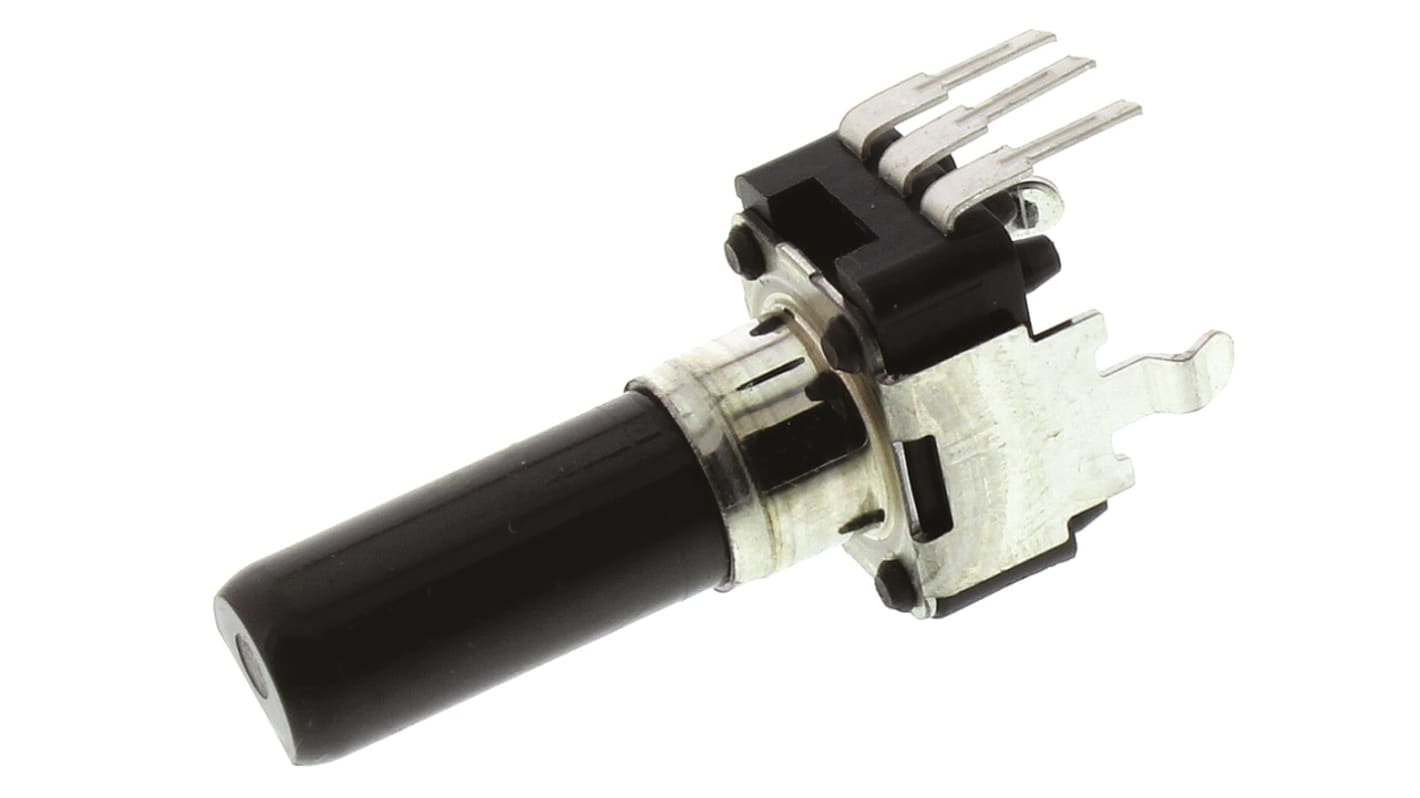

This image is representative of the product range

17 In AU stock for next working day delivery

50 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

Was $3.60

You pay

$2.34

(exc. GST)

$2.57

(inc. GST)

Units	Per unit
1 +	$2.34

RS Stock No.:: 729-3644
Mfr. Part No.:: RK09D1130A1L
Brand:: Alps Alpine

Technical data sheets

Insulated Shaft Potentiometer 9mm Size Insulated Shaft Snap-in Type RK09K/RK09D Series Data Sheet

Legislation and Compliance

COO (Country of Origin):: JP

Product Details

9mm Snap-In Insulated Shaft Potentiometers RK09K/RK09D Series

Brought to you by Alps, the RK09K and RK09D series of potentiometers features convenient snap in mounting and an insulated shaft. These compact type potentiometers are ideal for designing high density sets, and are available in a vertical or horizontal mounting direction. The RK09K and RK09D series are commonly used in audio applications.

Features and Benefits:
• Compact type potentiometer with 9.8mm width is ideal for designing high density sets
• Vertical and Horizontal mounting direction
• Total rotation angle 280° (RK09K) and 300° (RK09D)
• Flat, knob, and driver shaft types

Note

For vertical type Shaft Length shown in heading is measured from the PCB surface to the tip of the shaft, for horizontal type Shaft Length is measured from the mounting tag to the end of the shaft, see datasheet for dimensions.

Specifications

Attribute	Value
Potentiometer Type	Rotary
Maximum Resistance	50kΩ
Number of Gangs	1
Number of Turns	1
Power Rating	0.05W
Electrical Taper	Linear
Mounting Type	Through Hole
Termination Style	Pin
Shaft Length	25mm
Shaft Diameter	6 mm
Series	RK09D
Actuator Type	Flatted Shaft
Tolerance	±20%
