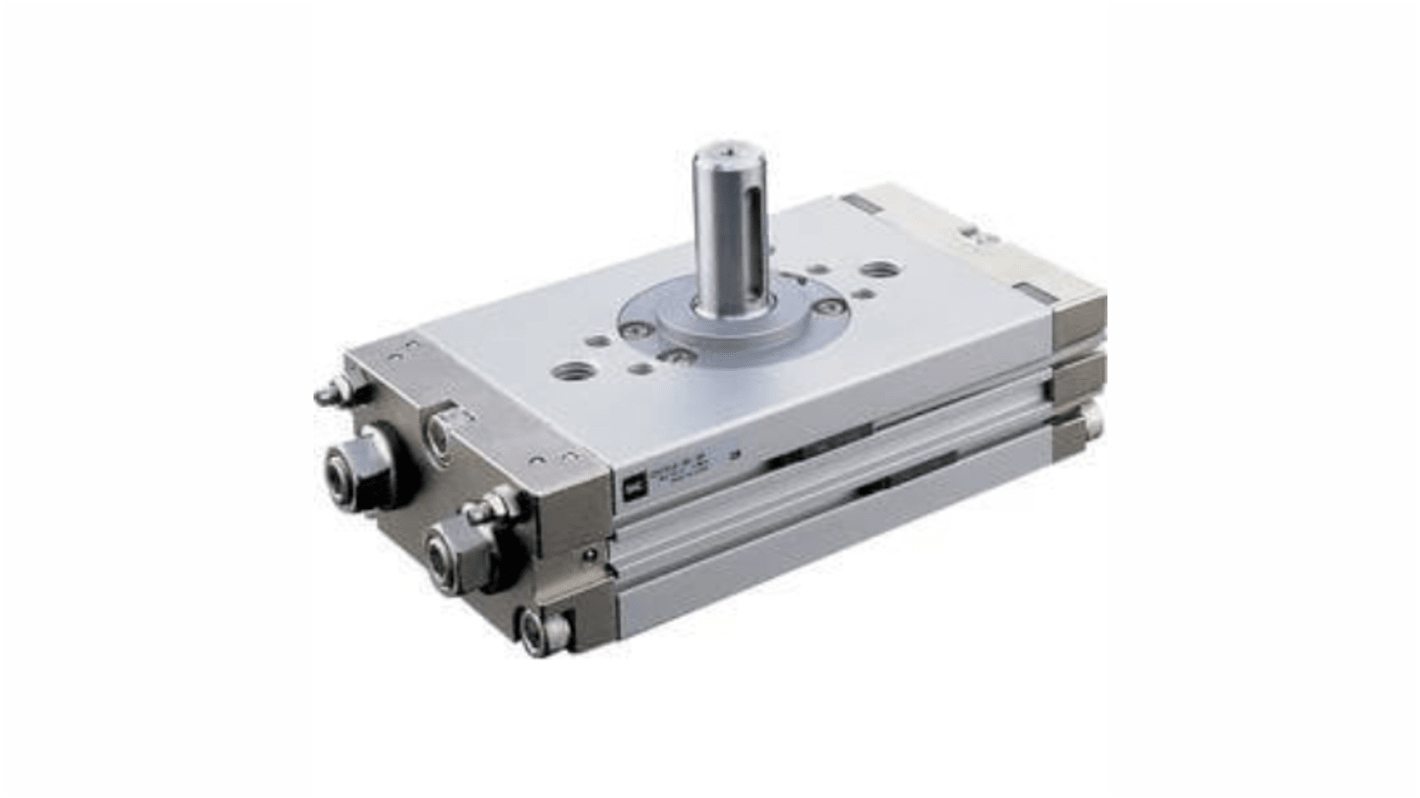

SMC CRQ2 Series Single Action Rotary Actuator, 180° Rotary Angle, 15mm Bore
- RS Stock No.:
- 254-6174
- Mfr. Part No.:
- CDRQ2BW15-180
- Brand:
- SMC
On back order for despatch 18/06/2024, delivery within 10 working days from despatch date.
Price (ex. GST) Each
$416.34
(exc. GST)
$457.97
(inc. GST)
| Units | Per unit |
| 1 + | $416.34 |
- RS Stock No.:
- 254-6174
- Mfr. Part No.:
- CDRQ2BW15-180
- Brand:
- SMC
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
The SMC compact rotary, rack and pinion style actuator. Single and double shaft types are available in all sizes. This product uses internal cushioning and the body can be used as a flange. The use of a double piston eliminates backlash. Auto switches are
Low profile
Both single shaft and double shaft are available in all sizes
2 auto switches are mountable on the same side
Rotating angle adjusting range 350° to 370°
Both single shaft and double shaft are available in all sizes
2 auto switches are mountable on the same side
Rotating angle adjusting range 350° to 370°
Specifications
Attribute | Value |
|---|---|
| Rotary Angle | 180° |
| Action | Single |
| Bore | 15mm |
| Manufacturer Series | CRQ2 |
| Maximum Input Pressure | 10bar |
