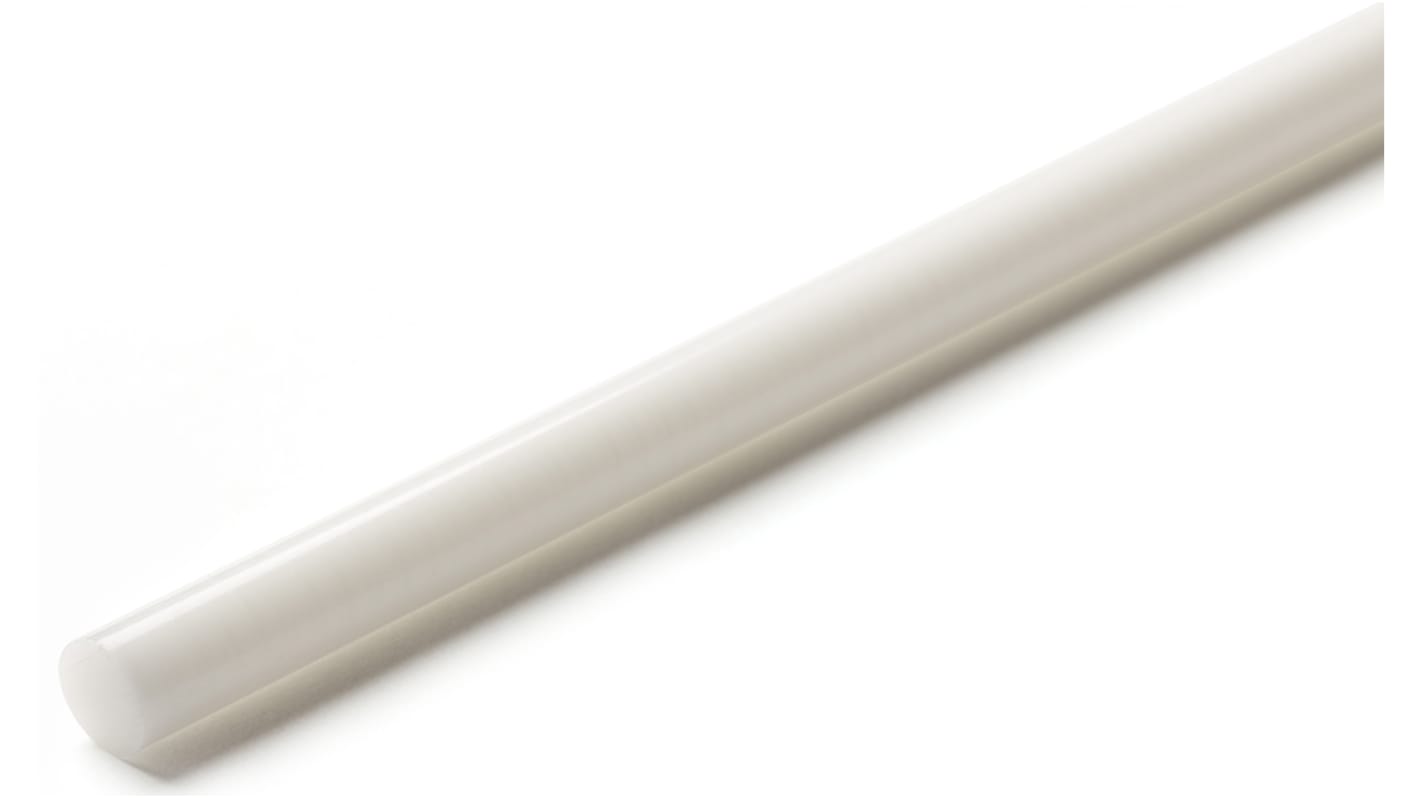

RS PRO White Acetal Rod, 1 m x 20 mm Diameter

RS Stock No.:: 770-305
Brand:: RS PRO

RS PRO White Acetal Rod, 1 m x 20 mm Diameter

Bulk discount available

Subtotal (1 lot of 2 units)*

$93.11

(exc. GST)

$102.42

(inc. GST)

FREE delivery for orders over $60.00 ex GST

Stock information currently inaccessible

Lot(s)	Per Lot	Per unit*
1 - 14	$93.11	$46.555
15 - 74	$91.55	$45.775
75 +	$75.36	$37.68

*price indicative

RS Stock No.:: 770-305
Brand:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Acetal Rod
	Colour	White
	Length	1m
	Material	Delrin
	Rod Diameter	20mm
	Density	1.42g/cm³
	Tensile Strength	70MPa
	Standards/Approvals	RoHS, EU 10/2011, REACH, Aerospace, ISO 9001, FDA
	Flammability Rating	UL94 HB
	Maximum Operating Temperature	100°C
	Elongation	0.25%
	Water Absorption	0.5%
	Thermal Conductivity	0.43W/mK
	Hardness	M 90 Rockwell

	Select all
	Brand RS PRO
	Product Type Acetal Rod
	Colour White
	Length 1m
	Material Delrin
	Rod Diameter 20mm
	Density 1.42g/cm³
	Tensile Strength 70MPa
	Standards/Approvals RoHS, EU 10/2011, REACH, Aerospace, ISO 9001, FDA
	Flammability Rating UL94 HB
	Maximum Operating Temperature 100°C
	Elongation 0.25%
	Water Absorption 0.5%
	Thermal Conductivity 0.43W/mK
	Hardness M 90 Rockwell

COO (Country of Origin):: DE

RS PRO Acetal Rods – High-Performance Engineering Plastic

RS PRO Acetal Rods are precision-engineered using high-quality black DuPont™ Delrin® resin, renowned for its superior strength and durability. These rods deliver excellent performance across various demanding applications, thanks to their combination of mechanical resilience, chemical resistance, and machinability.

Why Would You Choose These Acetal Rods?

Built for heavy-duty use, these rods offer exceptional tensile strength and durability, making them ideal for load-bearing applications. Acetal’s low friction and excellent wear resistance make it suitable for applications requiring smooth motion, such as gears, rollers, and bearings. RS PRO Acetal Rods allow for precise shaping, drilling, and other modifications, providing versatile use across complex mechanical designs.

Features and Benefits

Manufactured using black DuPont™ Delrin® resin

High Strength

Difficult to bond

Good slide and wear properties

Good machinability

Available in Black or White

Not hot water resistant over 60 °C

Good chemical resistance

Easy to polish

Applications

Automotive

Aerospace
