Bulk discount available
Subtotal (1 pack of 3 units)*
$85.479
(exc. GST)
$94.026
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 12 unit(s) shipping from 30 January 2026
- Plus 60 unit(s) shipping from 10 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 3 - 42 | $28.493 | $85.48 |
| 45 - 222 | $27.703 | $83.11 |
| 225 + | $22.797 | $68.39 |
*price indicative
- RS Stock No.:
- 514-596
- Brand:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance

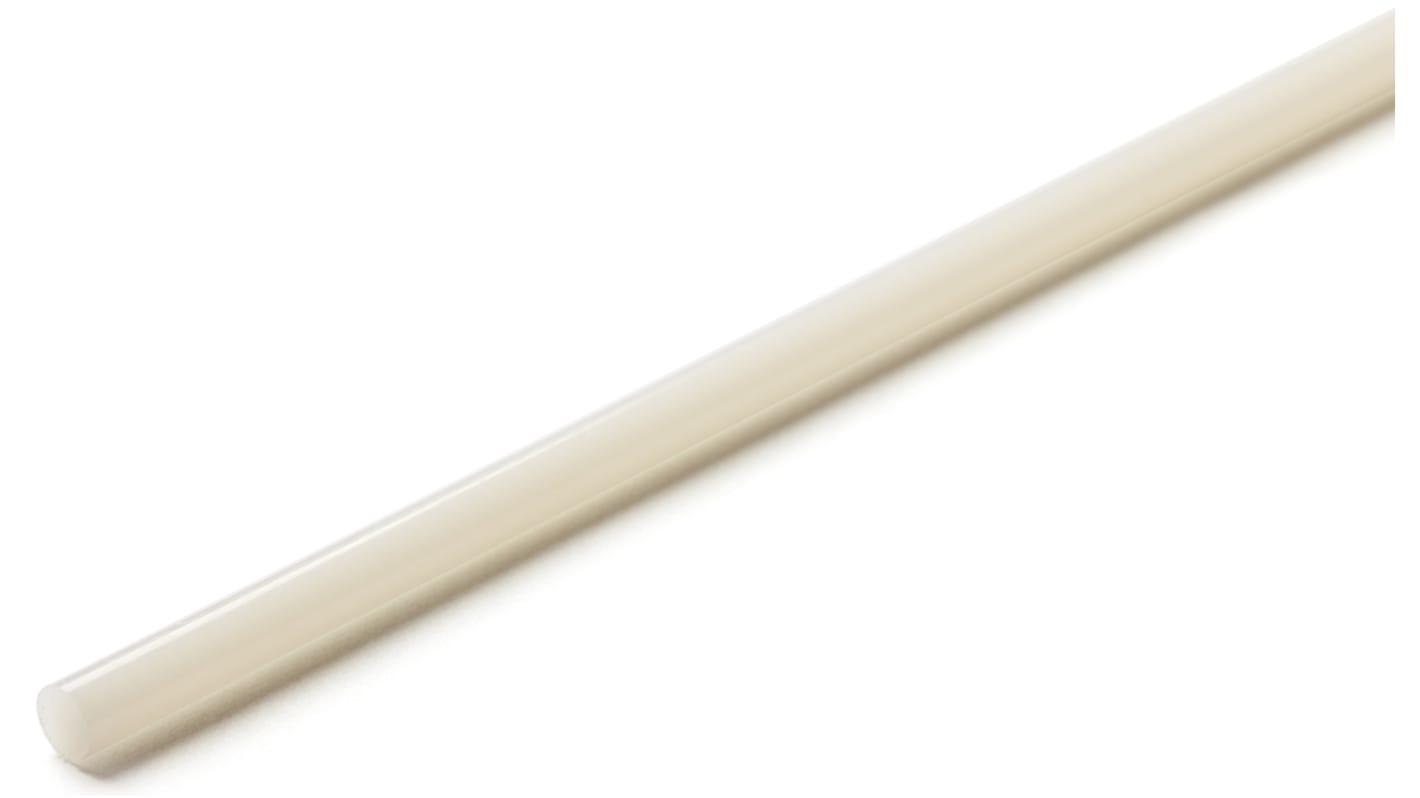

Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Colour | White | |
| Length | 1m | |
| Material | Nylon | |
| Form | Rod | |
| Rod Diameter | 18mm | |
| Density | 1.14g/cm³ | |
| Tensile Strength | 60 (Wet) MPa, 80 (Dry) MPa | |
| Maximum Operating Temperature | +170°C | |
| Flammability Rating | UL HB | |
| Elongation | 150% | |
| Hardness | 170 Ball Indentation | |
| Water Absorption | 8.5% | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Colour White | ||
Length 1m | ||
Material Nylon | ||
Form Rod | ||
Rod Diameter 18mm | ||
Density 1.14g/cm³ | ||
Tensile Strength 60 (Wet) MPa, 80 (Dry) MPa | ||
Maximum Operating Temperature +170°C | ||
Flammability Rating UL HB | ||
Elongation 150% | ||
Hardness 170 Ball Indentation | ||
Water Absorption 8.5% | ||
- COO (Country of Origin):
- DE
Nylon 66
"High melting point Nylon 66
Good electrical characteristics
High chemical resistance
Impact resistant
Easily machined to make gears
White in colour"
Natural & Cast Nylon
