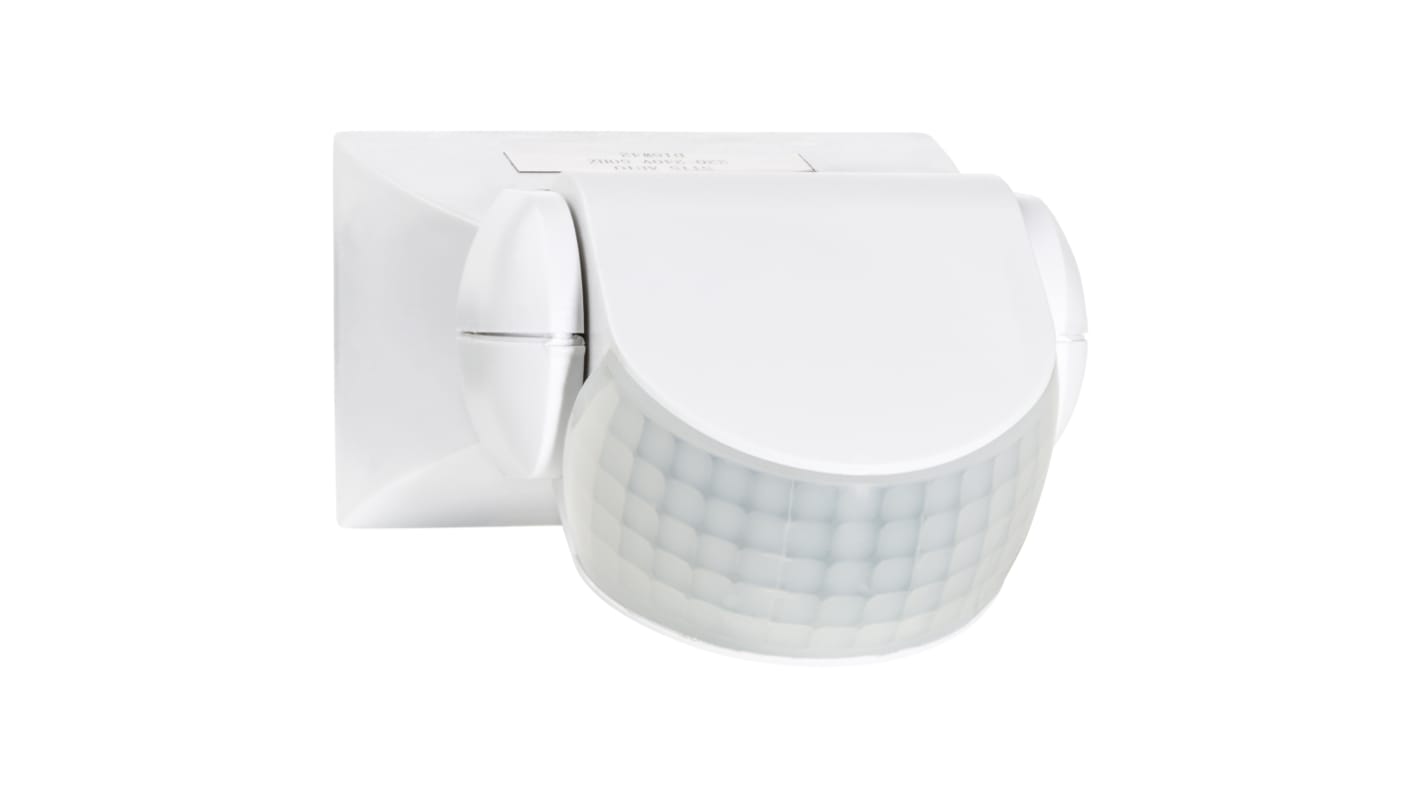

HPM PIR Motion Detector PIR Sensor, 12 m Sensor Range
- RS Stock No.:
- 273-1047
- Mfr. Part No.:
- 630SM01WE
- Brand:
- HPM
Subtotal (1 unit)*
$66.88
(exc. GST)
$73.57
(inc. GST)
FREE delivery for orders over $80.00 ex GST
Stocked by manufacturer
- Ready to ship from 29 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $66.88 |
*price indicative
- RS Stock No.:
- 273-1047
- Mfr. Part No.:
- 630SM01WE
- Brand:
- HPM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HPM | |
| Detector Type | PIR Motion Detector | |
| Product Type | PIR Sensor | |
| Sensor Radius | 12m | |
| Diameter | 90mm | |
| Depth | 80mm | |
| Mount Type | Wall, Ceiling | |
| Colour | Black, White | |
| Series | Cat. No. 630S | |
| Supply Voltage | 230, 240V ac | |
| IP Rating | IP44 | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand HPM | ||
Detector Type PIR Motion Detector | ||
Product Type PIR Sensor | ||
Sensor Radius 12m | ||
Diameter 90mm | ||
Depth 80mm | ||
Mount Type Wall, Ceiling | ||
Colour Black, White | ||
Series Cat. No. 630S | ||
Supply Voltage 230, 240V ac | ||
IP Rating IP44 | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- HK
The HPM movement sensor is passive infrared sensor that has view angle of 360 degree and protected with IP20. Sensor locations to be avoided near water features such as swimming pools or ponds. The movement and reflections are likely to create nuisance switching.
Lux adjustment range 3 lux to 2000 lux
IP44 protection rating
