Texas Instruments 2 Peripheral Driver 8-Pin SOIC
- RS Stock No.:
- 168-4878
- Mfr. Part No.:
- SN75452BD
- Brand:
- Texas Instruments

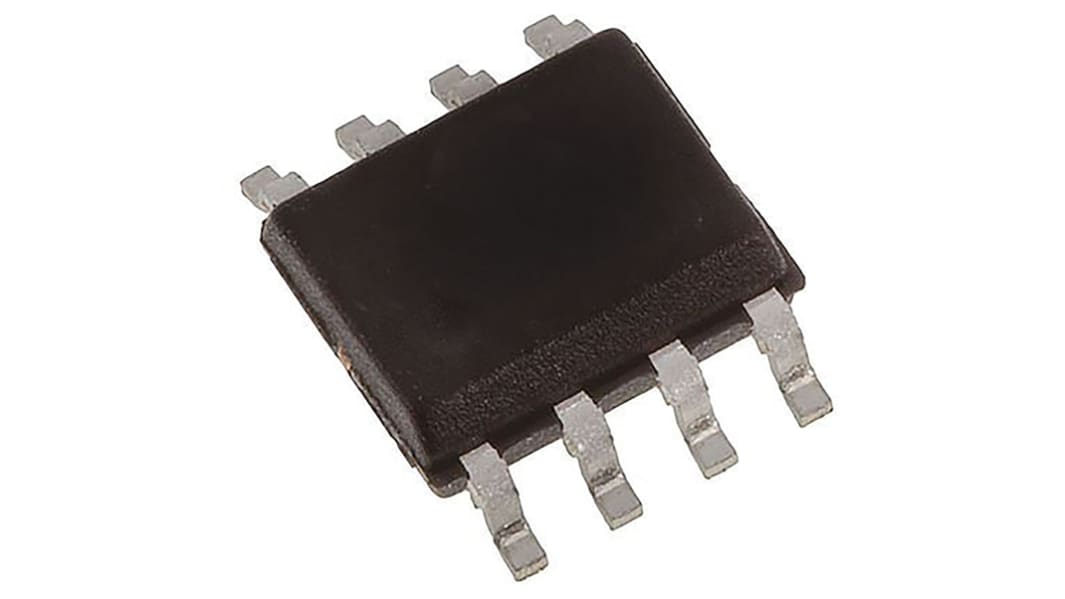

This image is representative of the product range
Subtotal (1 tube of 75 units)*
$67.05
(exc. GST)
$73.725
(inc. GST)
Add 75 units to get free delivery
In Stock
- Plus 900 unit(s) shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 75 + | $0.894 | $67.05 |
*price indicative
- RS Stock No.:
- 168-4878
- Mfr. Part No.:
- SN75452BD
- Brand:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Number of Drivers | 2 | |
| Product Type | Peripheral Driver | |
| Maximum Turn-On Delay Time | 8ns | |
| Maximum Turn-Off Delay Time | 12ns | |
| Supply Current | 71mA | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Maximum Power Dissipation Pd | 725mW | |
| Minimum Supply Voltage | 5.5V | |
| Maximum Supply Voltage | 7V | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Series | SN75452 | |
| Length | 4.9mm | |
| Width | 3.91 mm | |
| Height | 1.58mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Number of Drivers 2 | ||
Product Type Peripheral Driver | ||
Maximum Turn-On Delay Time 8ns | ||
Maximum Turn-Off Delay Time 12ns | ||
Supply Current 71mA | ||
Mount Type Surface | ||
Package Type SOIC | ||
Pin Count 8 | ||
Maximum Power Dissipation Pd 725mW | ||
Minimum Supply Voltage 5.5V | ||
Maximum Supply Voltage 7V | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Series SN75452 | ||
Length 4.9mm | ||
Width 3.91 mm | ||
Height 1.58mm | ||
Automotive Standard No | ||
Peripheral Drivers, Texas Instruments
Darlington Transistor Drivers
