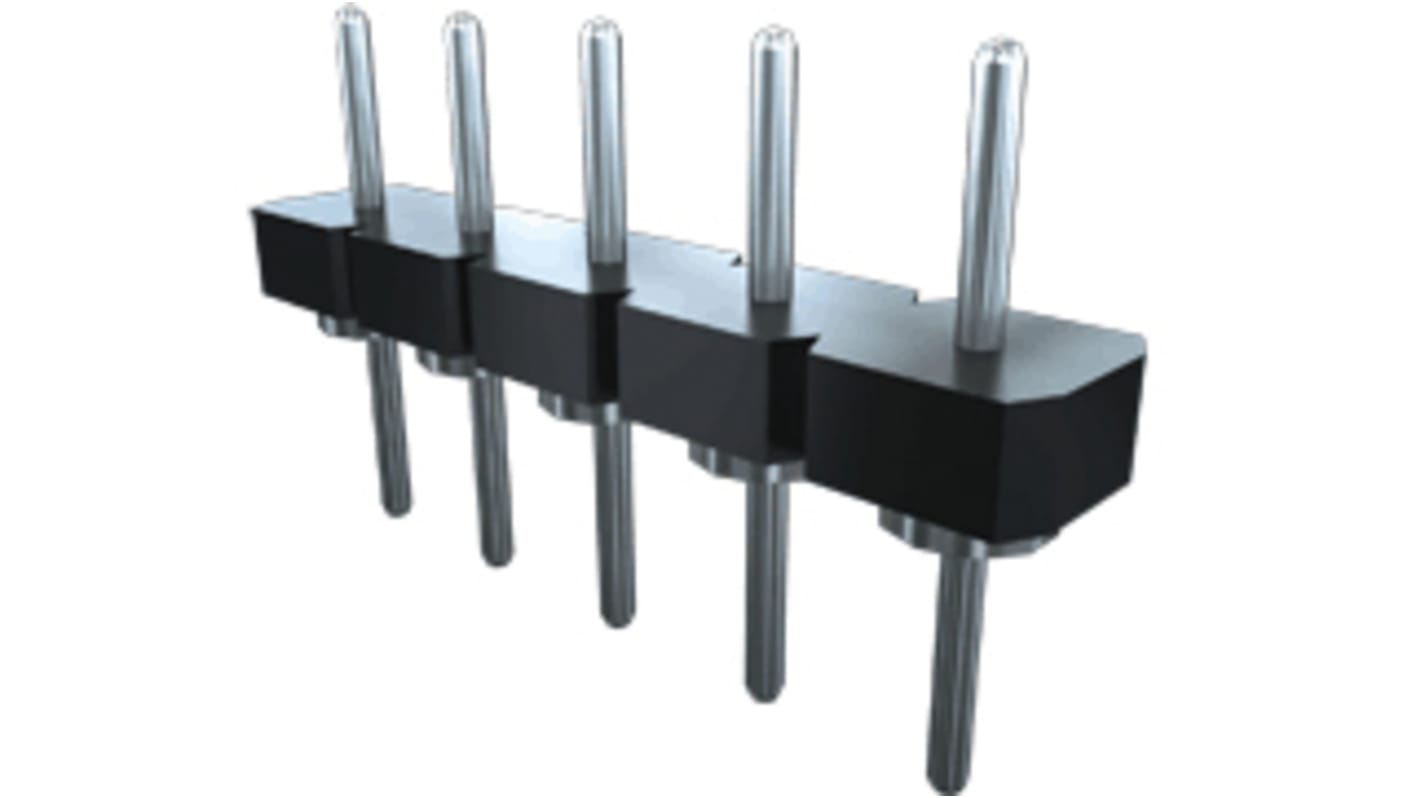

Samtec BBL Series Straight Through Hole Pin Header, 32 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 159-2945
- Mfr. Part No.:
- BBL-132-T-E
- Brand:
- Samtec
On back order for despatch 24/05/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Tube of 7)
$7.673
(exc. GST)
$8.44
(inc. GST)
| Units | Per unit | Per Tube* |
| 7 - 7 | $7.673 | $53.711 |
| 14 - 21 | $7.50 | $52.50 |
| 28 + | $7.369 | $51.583 |
| *price indicative | ||
- RS Stock No.:
- 159-2945
- Mfr. Part No.:
- BBL-132-T-E
- Brand:
- Samtec
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
.100" Low Profile Single Row, Screw Machine Terminal Strip
Application: Low profile single row to 32 positions
Contact System: Machined terminal
Pitch: .100" (2.54 mm)
Contact System: Machined terminal
Pitch: .100" (2.54 mm)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Series | BBL |
| Pitch | 2.54mm |
| Number of Contacts | 32 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board to Board |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Plating | Tin |
| Contact Material | Phosphor Bronze |
