- RS Stock No.:
- 787-4322
- Mfr. Part No.:
- 0464001.DR
- Brand:
- Littelfuse
On back order for despatch 03/10/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Pack of 5)
$2.232
(exc. GST)
$2.455
(inc. GST)
Units | Per unit | Per Pack* |
5 - 20 | $2.232 | $11.16 |
25 - 45 | $2.204 | $11.02 |
50 - 245 | $2.156 | $10.78 |
250 - 495 | $2.092 | $10.46 |
500 + | $2.038 | $10.19 |
*price indicative |
- RS Stock No.:
- 787-4322
- Mfr. Part No.:
- 0464001.DR
- Brand:
- Littelfuse
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details

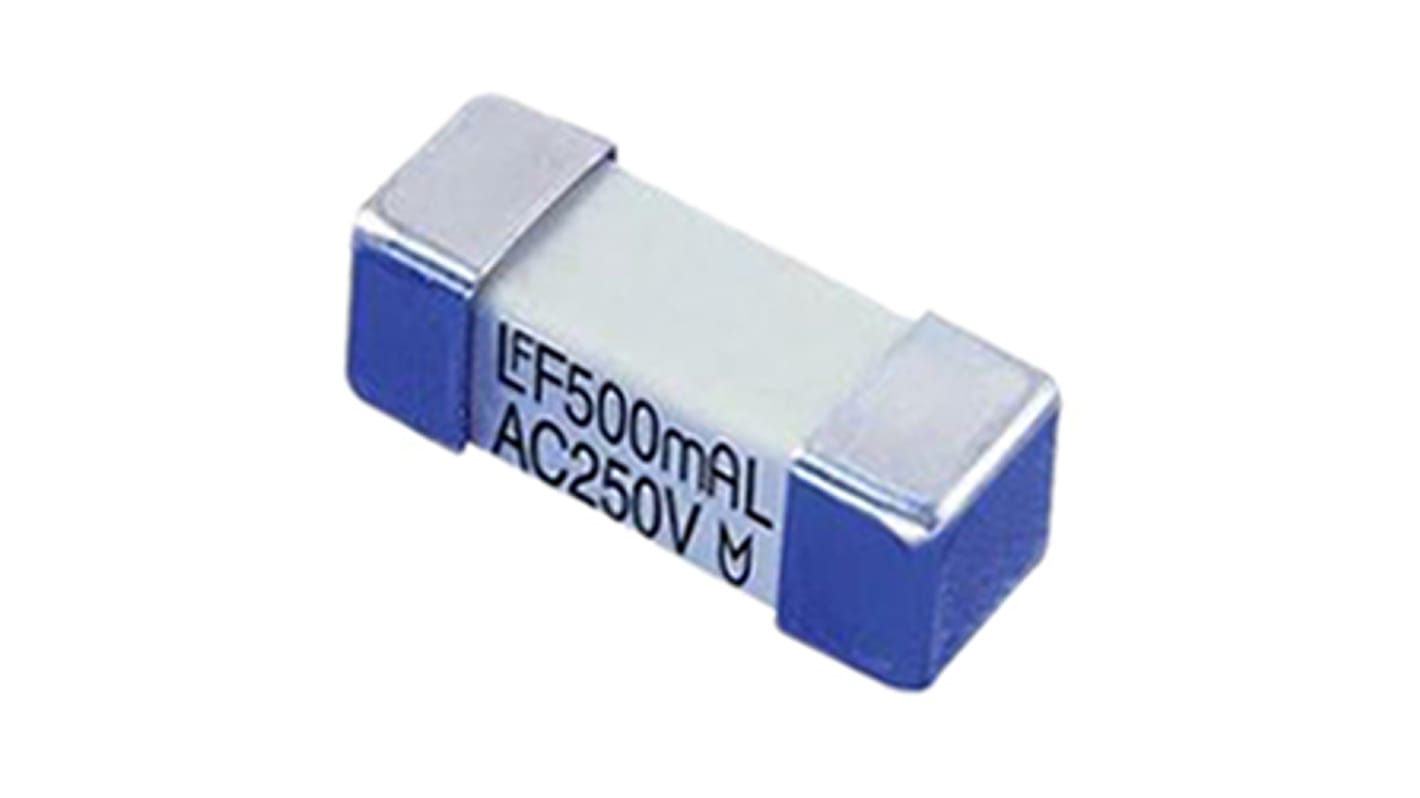

Littelfuse 464 Series NANO2 Surface Mount Fuses
Littelfuse 464 series NANO2 surface mount fuses are small high current devices designed to support higher current requirements of various applications. The 464 series of surface mount fuses are also fully compatible with lead free solder alloys and higher temperature profiles associated with lead free assembly, allowing for greater flexibility and ease of use.
Very fast acting
Small size
Small size
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Surface Mount Technology
Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.
Specifications
Attribute | Value |
---|---|
Current Rating | 1A |
Voltage Rating | 250V |
Fuse Speed | F |
Body Material | Ceramic |
Body Length | 12.1mm |
Body Width | 4.5mm |
Body Height | 4.5mm |
Breaking Capacity at Maximum Voltage Rating | 100 A @ 250 V ac |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +125°C |
Terminal Material | Silver Plated |
Dimensions | 12.1 x 4.5 x 4.5mm |
