SchurterSMD Non Resettable Fuse 630mA, 125V ac/dc

RS Stock No.:: 777-7511
Mfr. Part No.:: 3404.0008.11
Brand:: Schurter

SchurterSMD Non Resettable Fuse 630mA, 125V ac/dc

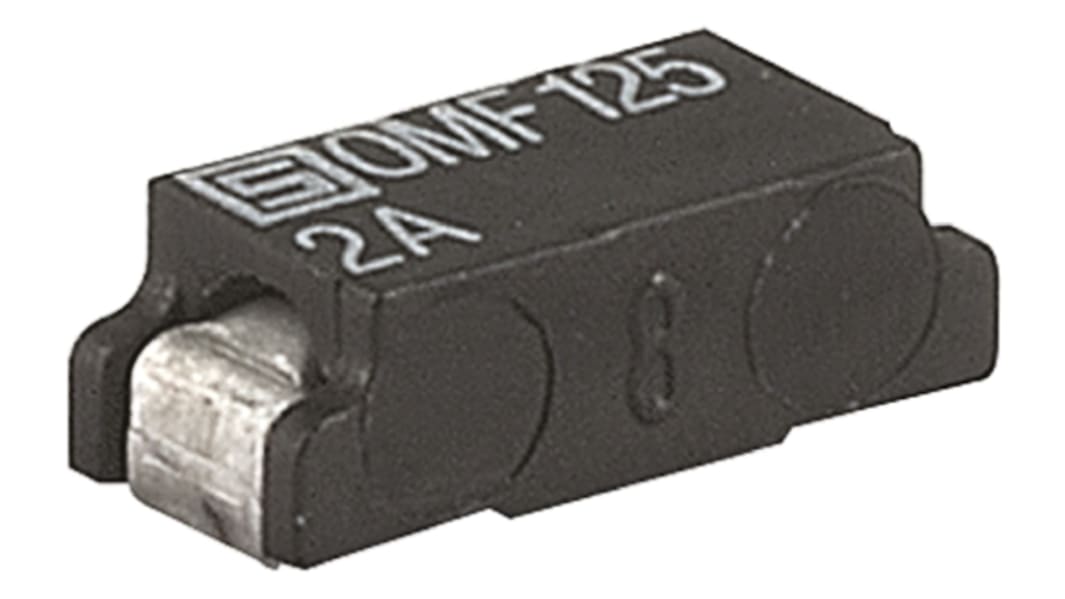

This image is representative of the product range

28 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$1.34

(exc. GST)

$1.47

(inc. GST)

Units	Per unit
1 - 99	$1.34
100 - 249	$1.29
250 - 499	$1.25
500 +	$1.23

RS Stock No.:: 777-7511
Mfr. Part No.:: 3404.0008.11
Brand:: Schurter

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: CH

Product Details

Schurter OMF 125 Series Surface Mount Fuses

Schurter OMF 125 series surface mount high breaking capacity fuses are quick acting and compact. The OMF 125 fuse series is suitable for a wide range of applications, including industrial and domestic electronics, medical equipment and power supplies.

Directly solderable on printed circuit boards
Low melting l2t values
Fast interruption
Compact design

Surface Mount Technology

Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.

Specifications

Attribute	Value
Current Rating	630mA
Voltage Rating	125V ac/dc
Fuse Speed	F
Body Material	Thermoplastic
Body Length	7.4mm
Body Width	3.1mm
Body Height	2.6mm
Breaking Capacity at Maximum Voltage Rating	100 A @ 125 V ac/dc
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+125°C
Dimensions	7.4 x 3.1 x 2.6mm
Terminal Material	Copper Alloy
