RS PRO Unmanaged 5 Port Ethernet Switch

RS Stock No.:: 144-8673
Distrelec Article No.:: 303-90-802
Brand:: RS PRO

Bulk discount available

Price Each**

$141.34

(exc. GST)

$155.47

(inc. GST)

34 In AU stock for next working day delivery*

415 In Global stock for delivery within 10 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $80.00 ex GST

Units	Per unit
1 - 4	$141.34
5 +	$116.32

**price indicative

RS Stock No.:: 144-8673
Distrelec Article No.:: 303-90-802
Brand:: RS PRO

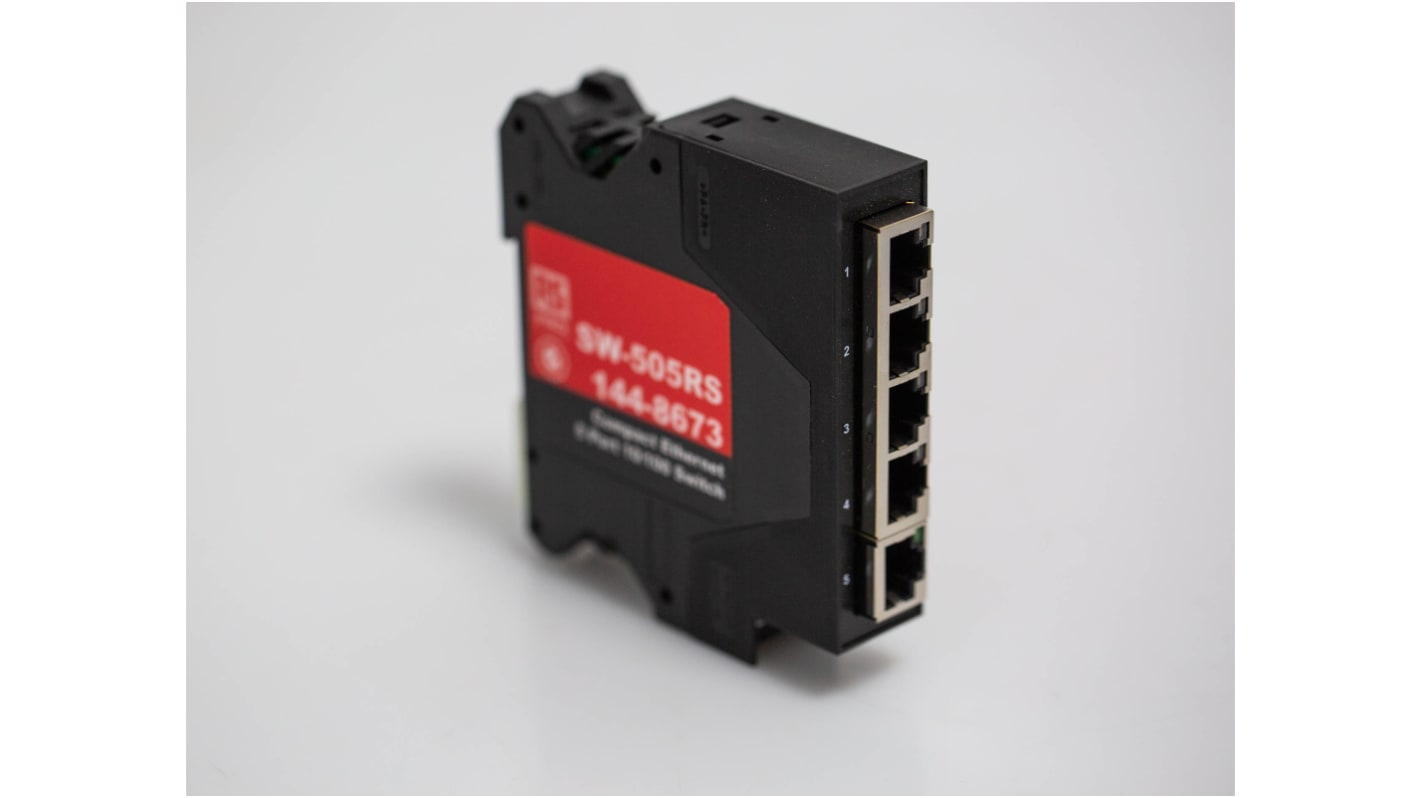

RS PRO DIN Rail Mount 5 Port Compact Ethernet Switch

A reliable and efficient industrial compact Ethernet 5 Port unmanaged switch with galvanically isolated ethernet ports capable of 10/100 Mbps. Ethernet switches, also known as LAN (local area network) switches, are an integral part of any computer network interface.
The ethernet switches industrial temperature range is from -40°C to +80°C and the dual input redundant power supply with wide voltage range means it can be powered from a USB or by 24V power supply. The power terminal is removable with numbered pins for easy wiring. No software is required, you just plug in and connect.

Features and Benefits:

5 Port Compact 10/100 Mbs Ethernet Switch
Ethernet speed - 10/100 fast Ethernet
Integrated DIN Rail Mount with grounding - compact design takes up minimal cabinet space
Redundant dual power inputs: +5V to +30V DC - enables device to be run from a standard car battery
Industrial operating temp range -40°C to +80°C / -40°F to +176°F
Small Footprint Case, only 22.5mm wide, 94mm deep
Non-conducting polyamide casing with removable numbered power terminal for easy wiring
No software required - just plug in any ethernet cable and connect
Power Consumption: 1.35 Watts Max: 260 mAmps@ +5VDC/45mAmps@ +30VDC
Ethernet Ports: 5 x RJ45 jack, 10/100Mhz autosensing, crossover auto sensing (Auto MDIX)
Housing: IP-20 rated non-conducting polyamide case with Easy Wire Removable screw terminal block
Weight: 0.115 kg

Typical Applications:

Industrial hubs are the devices used to connect several Ethernet devices together at one time. They then function as a single network together. They can be used in the following areas:
Automation industries
Energy industries
Machinery & robotics industries
Transportation industries
These RS PRO unmanaged Ethernet switches are suitable for factory floors, vehicle and marine applications.

SW-5XX

The black numbered power terminal block is removable. Two separate sets of power supply inputs terminals are provided, one to +VA and -V and the other to +VB and -V. This provides redundancy; the second power supply automatically takes over in the event of a failure of the first one. If only one power supply is connected then the negative must be connected to one of the -V pairs. The positive can be connected to either the +VA or +VB pins. Power LED will light green when correctly connected.

Pin 1: -V
Pin 2: +VA
Pin 3: +VB
Pin 4: -V
Pin 5: Functional Earth

FAQs

What is the difference between managed and unmanaged switches.

Unmanaged switches let you immediately plug and play devises into your network and cannot be modified or managed. They are usually used in home networks and small businesses.

Managed switches allow for greater control and ideal for larger businesses with a large and growing network.

How many ports do I need on my switch?

Switches can have a different number of port configurations. To help choose the right number of ports you should consider the number of users your network supports. In general, the bigger your business and organisation is, the more ports you will require.

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Attribute	Value
Number of Ports	5
Switch Type	Unmanaged
RJ45 Ports	5
Height	99mm
Depth	94mm
Dimensions	99 x 94 x 23mm
Width	23mm
