- RS Stock No.:
- 123-8854
- Mfr. Part No.:
- 1908P
- Brand:
- Aim-TTi
6 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$1,148.54
(exc. GST)
$1,263.39
(inc. GST)
Units | Per unit |
1 + | $1,148.54 |
- RS Stock No.:
- 123-8854
- Mfr. Part No.:
- 1908P
- Brand:
- Aim-TTi
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

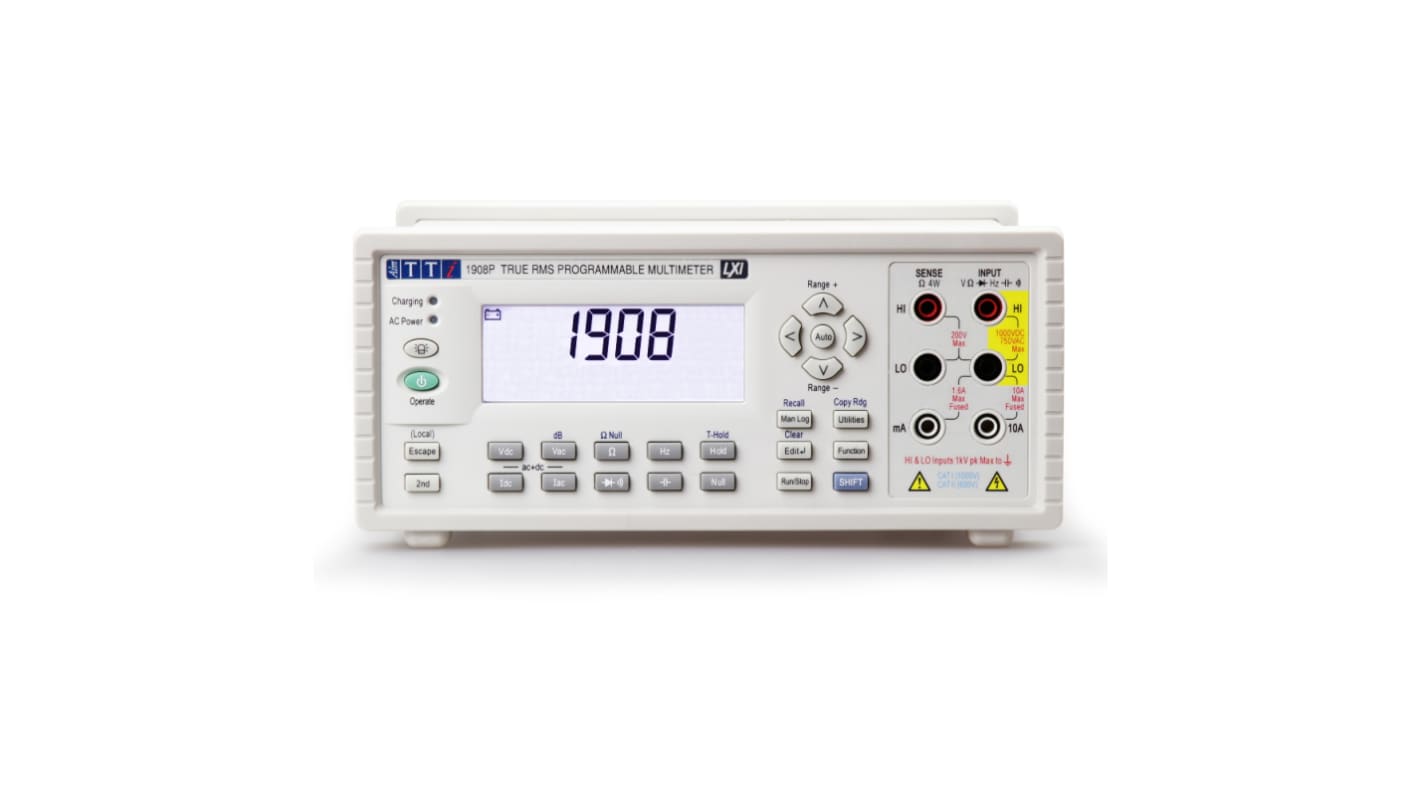

Aim-TTI 1908P Series Dual Measurement Bench Multimeter
Aim-TTi 1908 Series is a dual measurement, dual display bench-top/portable multimeter. It features continuity and diode test, automatic or manual ranging, linear scaling with offset, dB measurements, limits comparison, percentage deviation (%), min-max storage, power measurement in watts or VA, automatic data logging and external triggering. The logger function can store up to 500 readings from the main display in non-volatile memory. The two displays can be used to display a measurement along with the selected range (e.g. 100 Vdc), a measurement in two different units (e.g. AC volts and dBm), the result of a calculated function (e.g. value and % deviation), two parameters of one signal (e.g. AC and DC volts) or two different signals (e.g. AC volts and DC current). Software 1908-PC Link provides remote control of main functions and logging function with graphical and tabular displays (logged data can be exported to a CSV file). Model 1908P can be remotely controlled via its RS232, USB or LAN interface. Model 1908 (non P) can only be controlled via USB.
For an optional GPIB module see stock number 144-5481.
Features and Benefits
Affordable 5.5 digit high performance bench/portable multimeter, 120 000 counts
Dual display (main display and secondary display) and dual measurement capability
Mains power or Internal rechargeable batteries for true portability
High accuracy and resolution 0.02%, 1 μV, 0.1 μA, 1 mΩ
Manual or Auto-ranging
True RMS AC and AC+DC measurement
DC and AC volts, DC and AC current, resistance, capacitance, frequency, and temperature measurement
Measurement post-processing
Continuity and diode checks
Two or four wire selectable ohms measurement
Display nulling and ohms null
Selectable measurement speed
Touch hold mode - holds onto a stable reading until updated
500 point data logger with timer
Temperature measurement for PT100 or PT1000 sensors
Wide range of computing functions e.g. Ax + B
External input/output remote triggering
Closed case calibration
USB interface standard (1908 & 1908P) plus RS232, LAN/LXI
Kensington security slot incorporated
Dimensions 250 x 97 x 295 mm
Weight 3.2 kg
Note
In dual measurement mode a completely independent but complementary measurement can be made and displayed on the secondary display. The two independent measurements are made alternately, not simultaneously, and the display update rate for each measurement is consequently reduced (this is not the same as dual display mode, where both a measurement and a modified version of that measurement are displayed e.g. ac Volts and the dB equivalent).
Standards
EN61010-1, EN61010-2-030 & EN61010-2-033, EN61326-1 EMC
Supplied with
IVI driver, LV/CVI driver, USB driver
Specifications
Attribute | Value |
---|---|
Multimeter Type | Bench |
Display Type | Digital |
Model Number p | 1908P |
Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature |
Absolute Maximum DC Current Measurement | 10A dc |
Absolute Maximum AC Voltage Measurement | 1000V ac |
Absolute Maximum Resistance Measurement | 1kΩ |
Absolute Maximum AC Current Measurement | 10A ac |
Absolute Maximum DC Voltage Measurement | 1000V dc |
Absolute Maximum Temperature Measurement | +400°C |
Absolute Maximum Capacitance Measurement | 100µF |
Maximum Frequency | 100kHz |
DC Current Measurement Resolution | 100nA dc |
AC Current Measurement Resolution | 100nA ac |
Resistance Measurement Resolution | 1mΩ |
DC Voltage Measurement Resolution | 1µV dc |
AC Voltage Measurement Resolution | 1µV ac |
Capacitance Measurement Resolution | 10pF |
Safety Category Level | CAT II |
Temperature Measurement Resolution | 0.1°C |
Safety Category Voltage | 600V |
Maximum Operating Temperature | +40°C |
Battery Type | Rechargeable NiMH |
Height | 88mm |
Best Resistance Measurement Accuracy | 0.05 % |
Best DC Current Accuracy | 0.05 % |
Dimensions | 260 x 235 x 88mm |
Best DC Voltage Accuracy | 0.02 % |
Best AC Current Accuracy | 0.35 % |
Width | 235mm |
Length | 260mm |
Best Temperature Measurement Accuracy | 0.05 % |
Best AC Voltage Accuracy | 0.3 % |
Weight | 2kg |
Minimum Operating Temperature | +5°C |
Best Capacitance Measurement Accuracy | 2 % |
