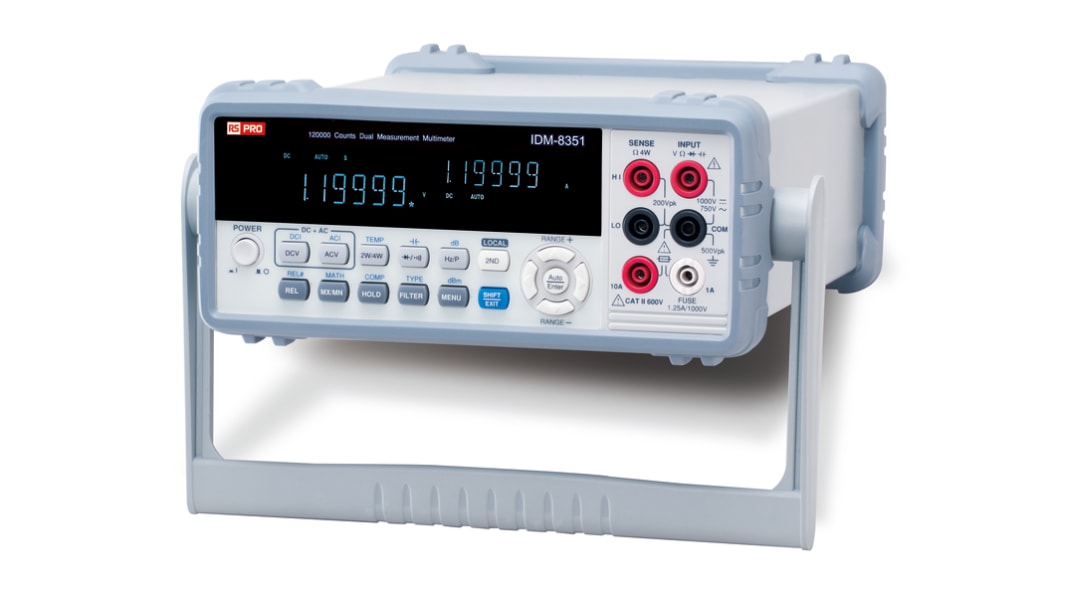

RS PRO IDM8351 Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max

RS Stock No.:: 123-3537
Distrelec Article No.:: 304-20-970
Brand:: RS PRO

RS PRO IDM8351 Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max

1 / 2

Bulk discount available

Subtotal (1 unit)**

$932.80

(exc. GST)

$1,026.08

(inc. GST)

Stock check temporarily unavailable - call for stock availability

FREE delivery for orders over $60.00 ex GST

Units	Per unit
1 - 4	$932.80
5 +	$767.70

**price indicative

RS Stock No.:: 123-3537
Distrelec Article No.:: 304-20-970
Brand:: RS PRO

RS PRO IDM-8351 Dual Measurement Digital Multimeter (DMM)

RS PRO IDM-8351 offers unprecedented functionality plus the fastest measurement speed in its class. This instrument can measure 12 functions including AC/DC voltage, AC/DC current, AC+DC voltage/current, two-wired and four-wired resistance tester, continuity beeper, diode test, capacitance, frequency and temperature.

Its auxiliary functions include maximum/minimum values, dB, dBm, compare, reading hold and algorithms. RS PRO IDM-8351 features include a VFD display, maximum 120 000 counts, 0.012% basic DC voltage accuracy and USB/RS232C interface. When using the USB interface, the operator can select either USBCDC or USBTMC mode and, when selecting USBTMC, can control the multimeter in exactly the same way as with a GPIB interface.

What are the key features of the RS Pro IDM-8351?

• 120 000 counts, VFD display
• Dual measurement, dual display
• Basic precision of DC voltage 0.012%
• Selectable measurement speeds (slow, medium, fast)
• True RMS (AC, AC+DC) measurements
• 12 different measurement functions
• Many auxiliary functions
• Digital I/O (provides dual mode)
• Dimensions 265 x 107 x 302 mm
• Weight 2.9 kg approximately
• Standard RS-232C and USB Device Interface (Support USBCDC and USBTMC Modes)

Selectable measurement speeds
RS PRO IDM-8351 has the fastest measurement speed among the same category products and three selectable measurement speeds are available-slow/medium/fast. For instance, DC voltage can reach 320 readings per second on the fast mode, which can maximize the effectiveness of each measurement.

Convenient digital i/o function
The Digital I/O of RS PRO IDM-8351 provides two different modes which are general and self-definition. With the general mode, Digital I/O will output Hi Fail, Lo Fail, Pass and EOM (measurement results) based upon the results of the compare function and, furthermore, external trigger input is also provided. Under the selfdefinition mode, users can define output conditions for four pins (SET1∼SET4) to execute the external control.

Various measurement items and functionalities
RS PRO IDM-8351 provides various measurement items and functionalities compared with that of the products of the same category. There are twelve major measurement items of IDM8351, including AC voltage/current, DC voltage/current, AC+DC voltage/current, two-wired and four-wired resistance, temperature, frequency, diode and continuity beeper test, and even the capability of measuring capacitance.

Does the RS PRO IDM-8351 come with any warranty?

You have peace of mind as the RS Pro IDM-8351 Dual Measurement Multimeter is backed by 3 years of warranty.

What is included?

User manual, driver and software on CD, safety instruction sheet, test lead, power cord

Safety guidelines

When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.

Warning

When using test leads or probes, keep your fingers behind the finger guards. Remove test lead from the meter before opening the battery door or meter case.

Note

Software Download

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Multimeter Type	Bench
	Display Type	Digital
	Model Number p	IDM8351
	Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
	Absolute Maximum AC Current Measurement	10A ac
	Absolute Maximum AC Voltage Measurement	750V ac
	Absolute Maximum Resistance Measurement	100MΩ
	Absolute Maximum DC Voltage Measurement	1000V dc
	Absolute Maximum DC Current Measurement	10A dc
	True RMS	Yes
	Absolute Maximum Capacitance Measurement	100µF
	Absolute Maximum Temperature Measurement	+300°C
	Maximum Frequency	10kHz
	DC Current Measurement Resolution	100nA dc
	AC Current Measurement Resolution	100nA ac
	Resistance Measurement Resolution	1mΩ
	DC Voltage Measurement Resolution	1µV dc
	AC Voltage Measurement Resolution	1µV ac
	Capacitance Measurement Resolution	0.01nF
	Safety Category Level	CAT II, CAT III, CAT IV
	Temperature Measurement Resolution	0.01°C
	Best Temperature Measurement Accuracy	0.2 °C
	Dimensions	265 x 302 x 107mm
	Best AC Voltage Accuracy	0.2 %
	Best Capacitance Measurement Accuracy	±2% + 4 Digits
	Minimum Operating Temperature	0°C
	Height	107mm
	Length	265mm
	Best AC Current Accuracy	±0.5% + 100 Digits
	Width	302mm
	Best DC Current Accuracy	±0.05% + 5 Digits
	Best Resistance Measurement Accuracy	±0.05% + 5 Digits
	Best DC Voltage Accuracy	±0.012% + 5 Digits
	Safety Category Voltage	600V
	Maximum Operating Temperature	+50°C
	Weight	2.9kg

	Select all
	Brand RS PRO
	Multimeter Type Bench
	Display Type Digital
	Model Number p IDM8351
	Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
	Absolute Maximum AC Current Measurement 10A ac
	Absolute Maximum AC Voltage Measurement 750V ac
	Absolute Maximum Resistance Measurement 100MΩ
	Absolute Maximum DC Voltage Measurement 1000V dc
	Absolute Maximum DC Current Measurement 10A dc
	True RMS Yes
	Absolute Maximum Capacitance Measurement 100µF
	Absolute Maximum Temperature Measurement +300°C
	Maximum Frequency 10kHz
	DC Current Measurement Resolution 100nA dc
	AC Current Measurement Resolution 100nA ac
	Resistance Measurement Resolution 1mΩ
	DC Voltage Measurement Resolution 1µV dc
	AC Voltage Measurement Resolution 1µV ac
	Capacitance Measurement Resolution 0.01nF
	Safety Category Level CAT II, CAT III, CAT IV
	Temperature Measurement Resolution 0.01°C
	Best Temperature Measurement Accuracy 0.2 °C
	Dimensions 265 x 302 x 107mm
	Best AC Voltage Accuracy 0.2 %
	Best Capacitance Measurement Accuracy ±2% + 4 Digits
	Minimum Operating Temperature 0°C
	Height 107mm
	Length 265mm
	Best AC Current Accuracy ±0.5% + 100 Digits
	Width 302mm
	Best DC Current Accuracy ±0.05% + 5 Digits
	Best Resistance Measurement Accuracy ±0.05% + 5 Digits
	Best DC Voltage Accuracy ±0.012% + 5 Digits
	Safety Category Voltage 600V
	Maximum Operating Temperature +50°C
	Weight 2.9kg
