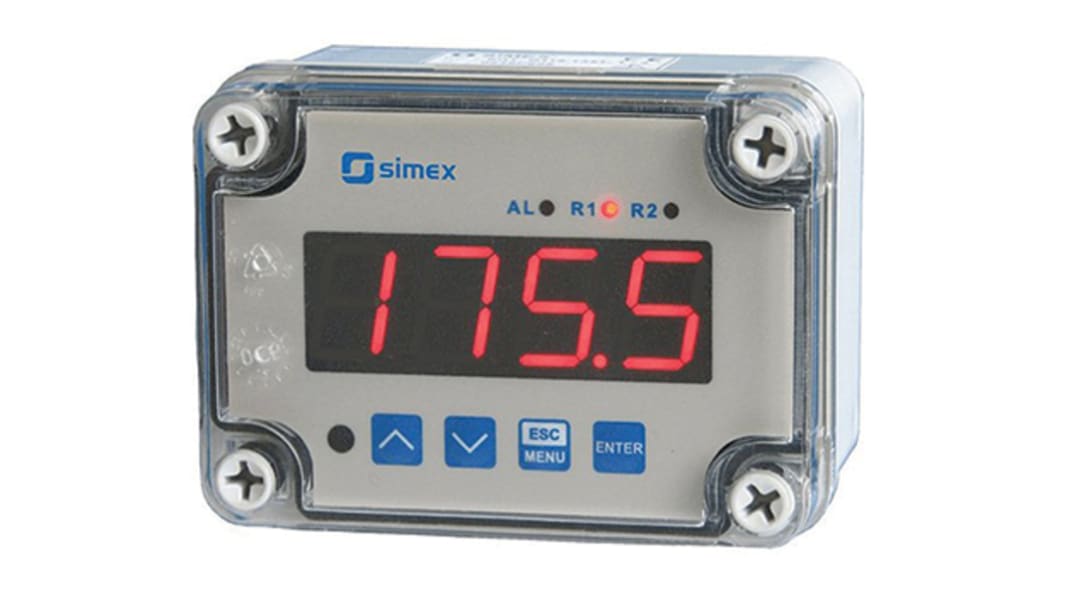

Simex LED Digital Panel Multi-Function Meter for Current, Voltage
- RS Stock No.:
- 914-8476
- Mfr. Part No.:
- SRP-N118-1821-1-4-001
- Brand:
- Simex
View this category
3 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$617.37
(exc. GST)
$679.11
(inc. GST)
| units | Per unit |
| 1 + | $617.37 |
- RS Stock No.:
- 914-8476
- Mfr. Part No.:
- SRP-N118-1821-1-4-001
- Brand:
- Simex
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
SRP-N118/N1186 Process Meter
The SRP-N118 and SRP-N1186 are process meters designed for measuring typical current or voltage signals. The readouts on these meters are presented on a large, well-readable display with standard range of 4 digits or 5/6 digits for more demanding applications.
The 24 V dc/100 mA outputs on these meters are designed to supply measuring transducers and the RS485 port enables data transmission in production process monitoring systems.
Due to the tight, IP67 protected housing, these meters are suitable for operation in harsh environments.
The 24 V dc/100 mA outputs on these meters are designed to supply measuring transducers and the RS485 port enables data transmission in production process monitoring systems.
Due to the tight, IP67 protected housing, these meters are suitable for operation in harsh environments.
• SRP-N118- 4-digit (20 mm) red LED display
• SRP-N1186- 6-digit (13 mm) red LED display
• 2 Relay Output
• Analogue output- active or passive
• 0/4-20 mA, 0/1-5 V, 0/2-10 V inputs
• Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks
• RS485/Modbus RTU communication port
• Configuration with IR remote controller (914-8502)
• Signal peak value detection
• Free configuration software S-Config
• IP67 protected housing
• 230 V ac power supply
• SRP-N1186- 6-digit (13 mm) red LED display
• 2 Relay Output
• Analogue output- active or passive
• 0/4-20 mA, 0/1-5 V, 0/2-10 V inputs
• Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks
• RS485/Modbus RTU communication port
• Configuration with IR remote controller (914-8502)
• Signal peak value detection
• Free configuration software S-Config
• IP67 protected housing
• 230 V ac power supply
Simex Multi function Meters
Specifications
| Attribute | Value |
| Properties Measured | Current, Voltage |
| Display Type | LED |
| Depth | 67mm |
| Number of Digits | 4 |
| Digit Height | 20 mm |
| Minimum Temperature | 0°C |
| Maximum Temperature | +50°C |
| Measurement Range | 0 → 20mA |
| Minimum Measurement | 0 mA, 0 V |
| Meter Type | Digital |
| Approvals | CE |
