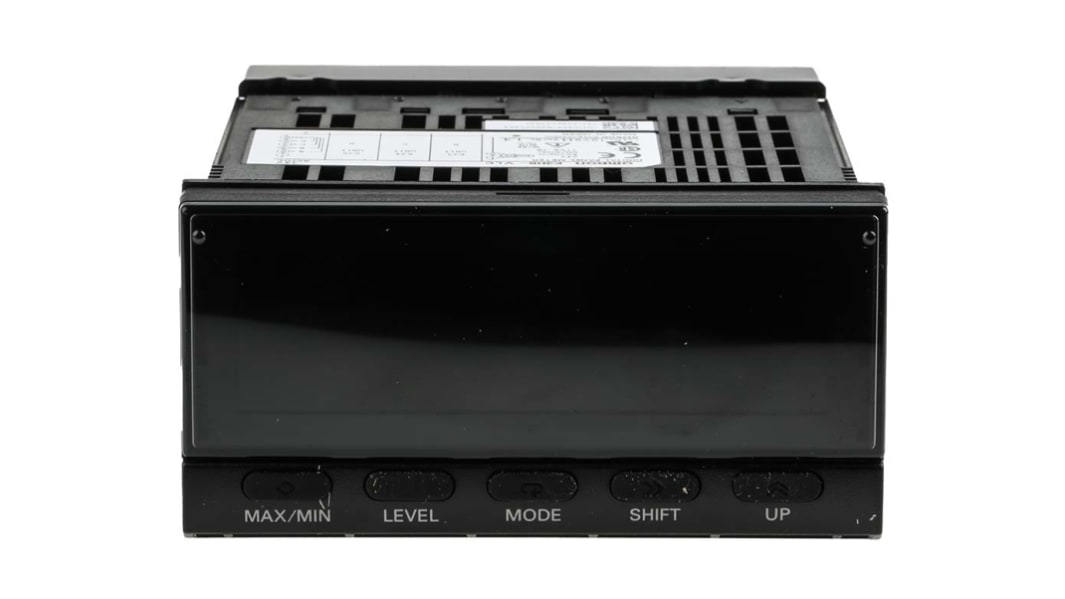

Omron K3HB-V 7 Segment LCD Digital Panel Multifunction Meter for Weight, Torque, Load, Pressure, 45 mm x 92 mm
- RS Stock No.:
- 883-7194
- Mfr. Part No.:
- K3HB-VLC 24VAC/VDC
- Brand:
- Omron
Subtotal (1 unit)*
$1,613.31
(exc. GST)
$1,774.64
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- 6 unit(s) shipping from 24 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $1,613.31 |
*price indicative
- RS Stock No.:
- 883-7194
- Mfr. Part No.:
- K3HB-VLC 24VAC/VDC
- Brand:
- Omron
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Properties Measured | Weight, Torque, Load, Pressure | |
| Product Type | Digital Panel Multifunction Meter | |
| Display Type | 7 Segment LCD | |
| Cutout Height | 45mm | |
| Cutout Width | 92mm | |
| Depth | 95mm | |
| Number of Digits | 5 | |
| Digit Height | 14.2mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | UL | |
| Series | K3HB-V | |
| Meter Type | Electromechanical | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Properties Measured Weight, Torque, Load, Pressure | ||
Product Type Digital Panel Multifunction Meter | ||
Display Type 7 Segment LCD | ||
Cutout Height 45mm | ||
Cutout Width 92mm | ||
Depth 95mm | ||
Number of Digits 5 | ||
Digit Height 14.2mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals UL | ||
Series K3HB-V | ||
Meter Type Electromechanical | ||
- COO (Country of Origin):
- JP
K3HB-X Process Panel Meter
1/8DIN (48x96mm) fascia, 100/240Vac supply. Colour change display to indicate process status and configurable bar graph for display of magnitude of input. Input ranges are scaleable linear AC current, DC current or DC voltage to cover all standard linear scales.
3 models offer standard linear scaleable inputs
K3HB-XAD – DC current, +/-199.99mA / 4-20mA
K3HB-XVD – DC voltage, +/-199.99V / 1 to 5V
K3HB-XAA - AC current, 0 to 10A
Colour change display and output indications give process status
Separate option cards available tailoring meter to the application of your choice (typical stock no. 611-7637)
Omron K3HB Series
This new range of Process Panel Meters replaces the K3N Series. K3HB series consists of process, temperature, weighing and linear sensor indicators. These indicators with analogue inputs or pulse inputs feature a clear and easy-to-use colour-change display and all have IP66 housing. Extra functionality can be added using option boards (3 maximum).
Dimensions: 101.2 x 112 x 48 mm. Panel cut-out: 92 x 45 mm
