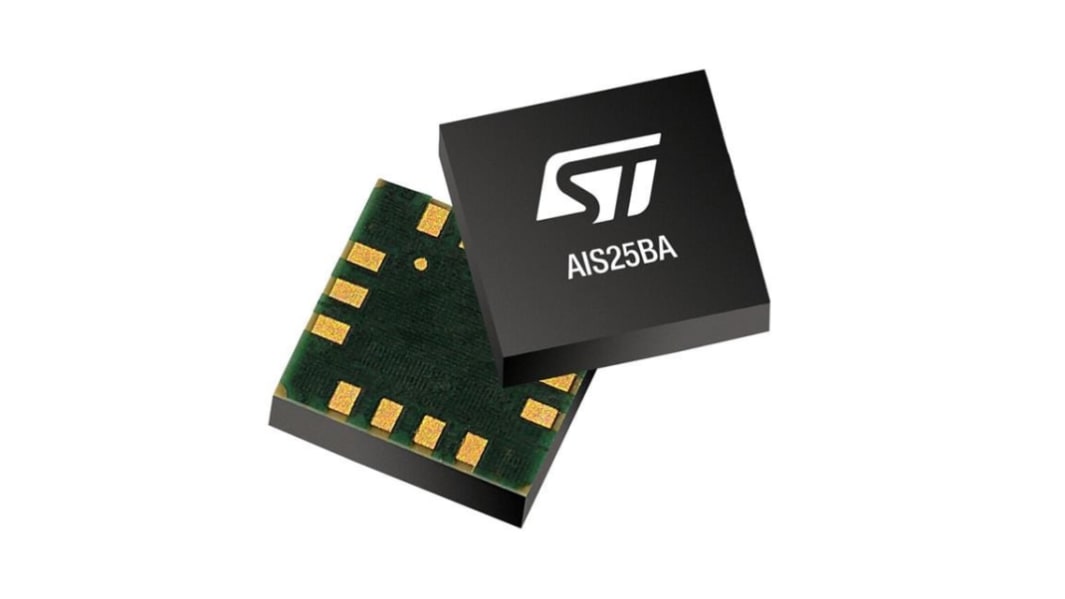

STMicroelectronics 3-Axis Surface Mount Accelerometer, I2C, TDM
- RS Stock No.:
- 252-3648
- Mfr. Part No.:
- AIS25BATR
- Brand:
- STMicroelectronics
189 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$12.90
(exc. GST)
$14.19
(inc. GST)
| Units | Per unit |
| 1 - 9 | $12.90 |
| 10 - 99 | $12.64 |
| 100 - 249 | $12.38 |
| 250 - 499 | $12.13 |
| 500 + | $11.90 |
- RS Stock No.:
- 252-3648
- Mfr. Part No.:
- AIS25BATR
- Brand:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
The STMicroelectronics MEMS digital output motion sensor: low noise, high bandwidth, 3-axis accelerometer with TDM interface is an ultralow noise, low latency, wide bandwidth, 3-axis digital accelerometer with a dedicated TDM interface designed to address automotive non-safety applications, in particular, wideband active noise control (ANC) and vibration monitoring. The AIS25BA has a user-selectable full-scale range of ±3.85/±7.7 g, a time-division multiplexing (TDM) interface for the sensor data, and an I²C interface for device configuration.
The AIS25BA is available in a small thin plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +125 °C.
The AIS25BA is available in a small thin plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +125 °C.
3-axis accelerometer with user-selectable full-scale is ±3.85/±7.7 g
Wide and flat frequency response is from dc up to 2.4 kHz (typ)
Low latency (entire reading chain) is 266 μs @ 2 kHz (typ)
Ultralow noise density (typ: 30 μg/√Hz for X and Y axes
Wide and flat frequency response is from dc up to 2.4 kHz (typ)
Low latency (entire reading chain) is 266 μs @ 2 kHz (typ)
Ultralow noise density (typ: 30 μg/√Hz for X and Y axes
50 μg/√Hz for Z-axis)
TDM (8/16/24 kHz) slave interface for sensor data and I²C interface for configuration
Supply voltage is 1.71 V to 2.1 V
Extended temperature range from -40 °C to +125 °C
Embedded self-test
TDM (8/16/24 kHz) slave interface for sensor data and I²C interface for configuration
Supply voltage is 1.71 V to 2.1 V
Extended temperature range from -40 °C to +125 °C
Embedded self-test
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Sensor Type | Accelerometer |
| Number of Axis | 3 |
| Mounting Type | Surface Mount |
| Interface Type | I2C, TDM |
