DiodesZetex DMP4025LK3 Type P-Channel MOSFET, 8.6 A, 40 V Enhancement, 3-Pin TO-252 DMP4025LK3-13

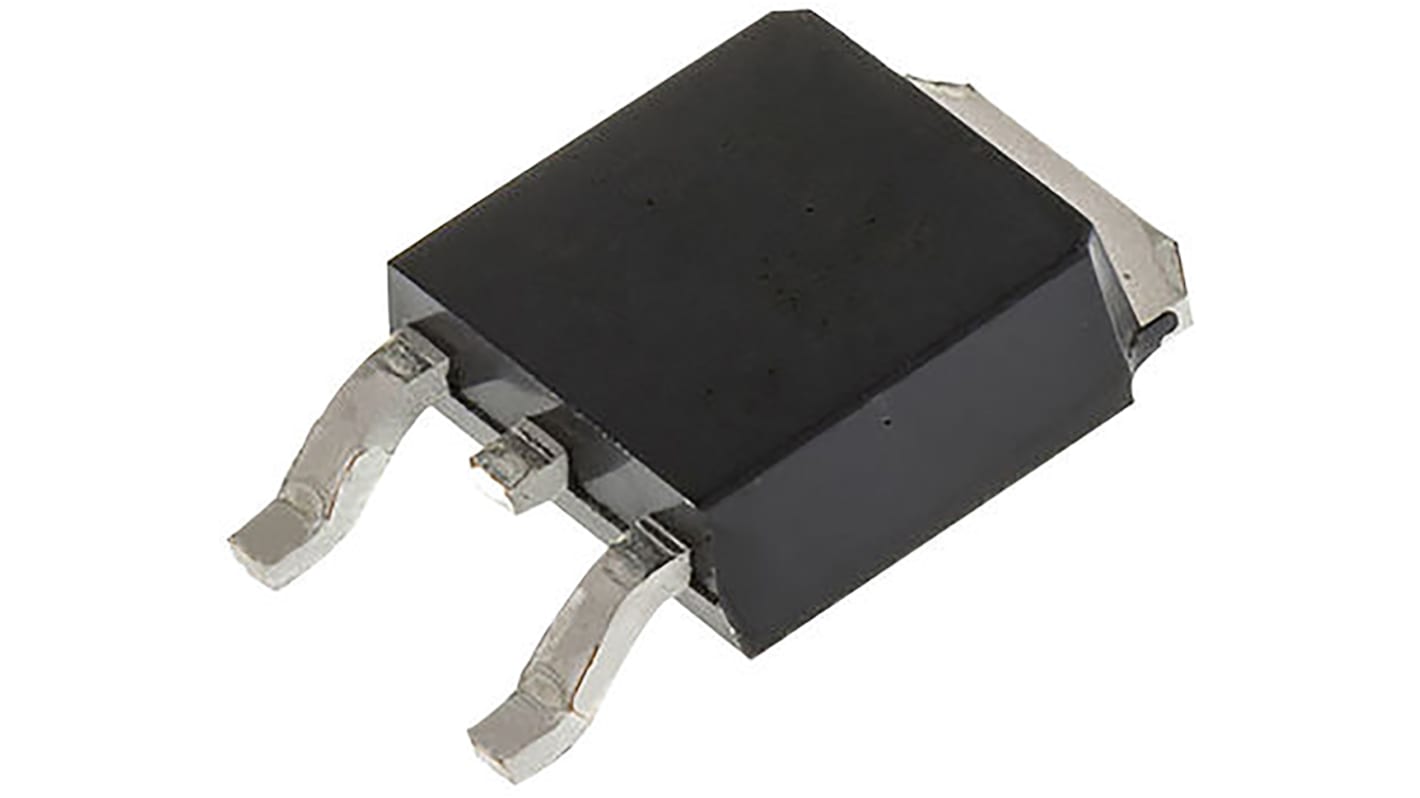

This image is representative of the product range

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 25 units)*

$21.025

(exc. GST)

$23.125

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • Plus 26,300 unit(s) shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
25 - 600$0.841$21.03
625 - 1225$0.827$20.68
1250 +$0.807$20.18

*price indicative

Packaging Options:
RS Stock No.:
823-2959
Mfr. Part No.:
DMP4025LK3-13
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Product Type

MOSFET

Channel Type

Type P

Maximum Continuous Drain Current Id

8.6A

Maximum Drain Source Voltage Vds

40V

Package Type

TO-252

Series

DMP4025LK3

Mount Type

Surface

Pin Count

3

Maximum Drain Source Resistance Rds

45mΩ

Channel Mode

Enhancement

Maximum Gate Source Voltage Vgs

20 V

Minimum Operating Temperature

-55°C

Typical Gate Charge Qg @ Vgs

33.7nC

Maximum Power Dissipation Pd

2.78W

Forward Voltage Vf

-1V

Maximum Operating Temperature

150°C

Width

6.2 mm

Length

6.7mm

Standards/Approvals

No

Height

2.26mm

Automotive Standard

AEC-Q101

P-Channel MOSFET, 40V to 90V, Diodes Inc


MOSFET Transistors, Diodes Inc.
