DiodesZetex DMN2005K Type N-Channel MOSFET, 600 mA, 20 V Enhancement, 3-Pin SOT-23 DMN2005K-7
- RS Stock No.:
- 822-2545
- Mfr. Part No.:
- DMN2005K-7
- Brand:
- DiodesZetex

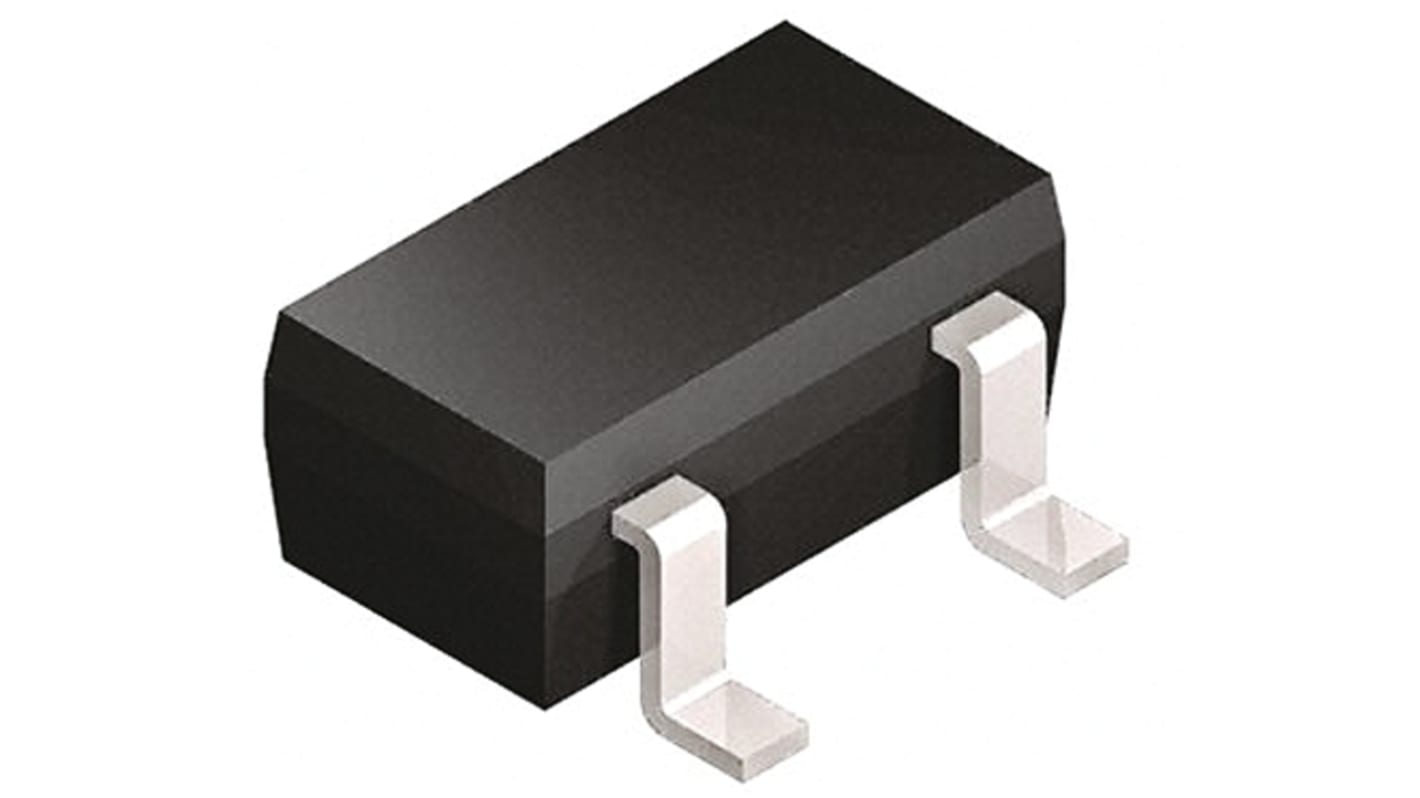

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 50 units)*
$21.85
(exc. GST)
$24.05
(inc. GST)
FREE delivery for orders over $80.00 ex GST
Temporarily out of stock
- 150 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 700 | $0.437 | $21.85 |
| 750 - 1450 | $0.435 | $21.75 |
| 1500 + | $0.432 | $21.60 |
*price indicative
- RS Stock No.:
- 822-2545
- Mfr. Part No.:
- DMN2005K-7
- Brand:
- DiodesZetex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 600mA | |
| Maximum Drain Source Voltage Vds | 20V | |
| Series | DMN2005K | |
| Package Type | SOT-23 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 3.5Ω | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 0.5nC | |
| Maximum Power Dissipation Pd | 350mW | |
| Minimum Operating Temperature | -65°C | |
| Forward Voltage Vf | 0.7V | |
| Maximum Operating Temperature | 150°C | |
| Length | 3mm | |
| Height | 1mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 600mA | ||
Maximum Drain Source Voltage Vds 20V | ||
Series DMN2005K | ||
Package Type SOT-23 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 3.5Ω | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 0.5nC | ||
Maximum Power Dissipation Pd 350mW | ||
Minimum Operating Temperature -65°C | ||
Forward Voltage Vf 0.7V | ||
Maximum Operating Temperature 150°C | ||
Length 3mm | ||
Height 1mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
N-Channel MOSFET, 12V to 28V, Diodes Inc
MOSFET Transistors, Diodes Inc.
