P-Channel MOSFET, 9.9 A, 50 V, 3-Pin DPAK Vishay IRFR9020TRPBF

RS Stock No.:: 812-0641
Mfr. Part No.:: IRFR9020TRPBF
Brand:: Vishay

P-Channel MOSFET, 9.9 A, 50 V, 3-Pin DPAK Vishay IRFR9020TRPBF

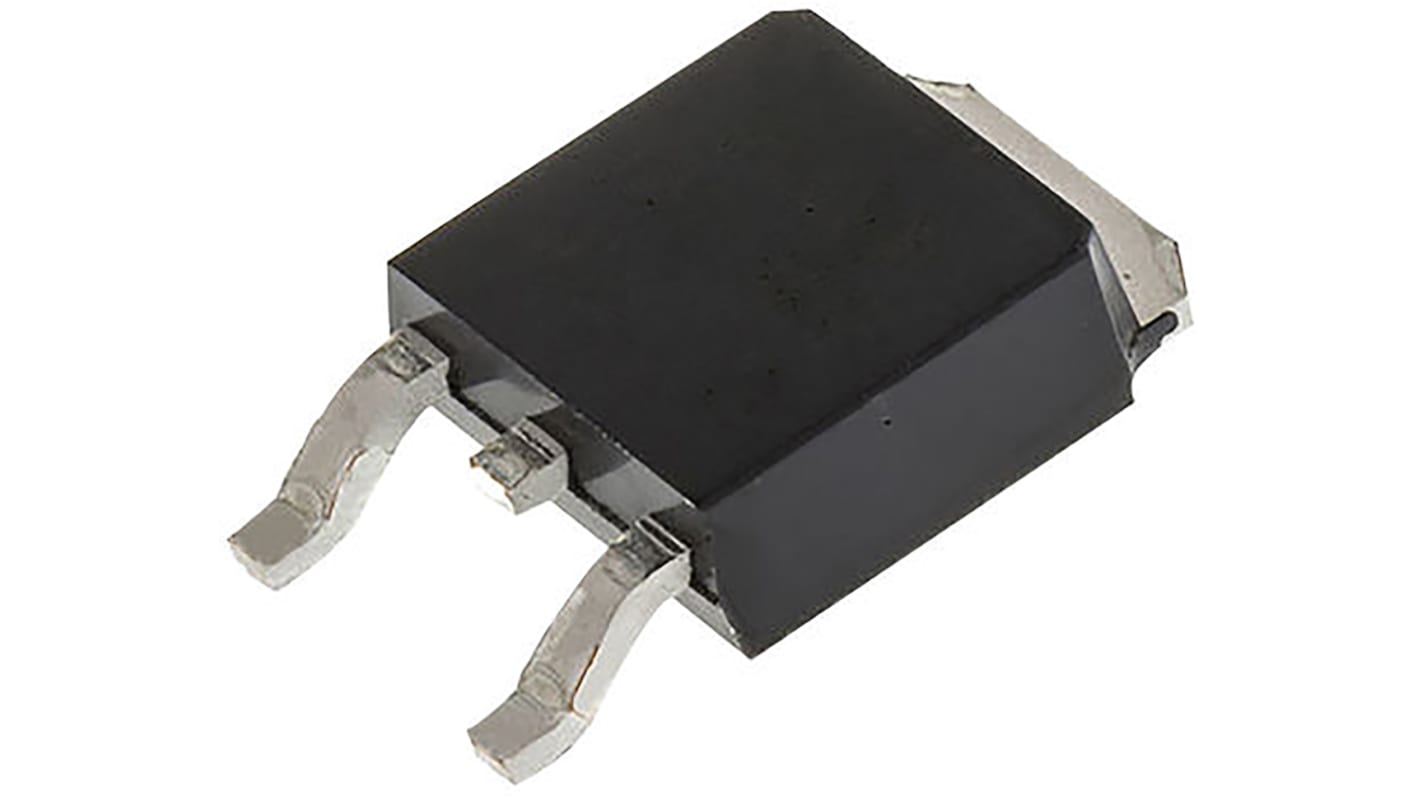

This image is representative of the product range

Subtotal (1 pack of 10 units)**

$20.50

(exc. GST)

$22.50

(inc. GST)

On back order for despatch 11/07/2025, delivery within 10 working days from despatch date.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $80.00 ex GST

Units	Per unit	Per Pack**
10 +	$2.05	$20.50

**price indicative

RS Stock No.:: 812-0641
Mfr. Part No.:: IRFR9020TRPBF
Brand:: Vishay

IRFR9020, IRFU9020, SiHFR9020, SiHFU9020, Power MOSFET
ESD Control Selection Guide V1

Attribute	Value
Channel Type	P
Maximum Continuous Drain Current	9.9 A
Maximum Drain Source Voltage	50 V
Package Type	DPAK (TO-252)
Mounting Type	Surface Mount
Pin Count	3
Maximum Drain Source Resistance	280 mΩ
Channel Mode	Enhancement
Minimum Gate Threshold Voltage	2V
Maximum Power Dissipation	42 W
Transistor Configuration	Single
Maximum Gate Source Voltage	-20 V, +20 V
Maximum Operating Temperature	+150 °C
Number of Elements per Chip	1
Typical Gate Charge @ Vgs	9.4 nC @ 10 V
Length	6.73mm
Transistor Material	Si
Width	6.22mm
Height	2.38mm
Minimum Operating Temperature	-55 °C

P-Channel MOSFET, 9.9 A, 50 V, 3-Pin DPAK Vishay IRFR9020TRPBF

FREE delivery for orders over $80.00 ex GST

P-Channel MOSFET, 30V to 80V, Vishay Semiconductor
