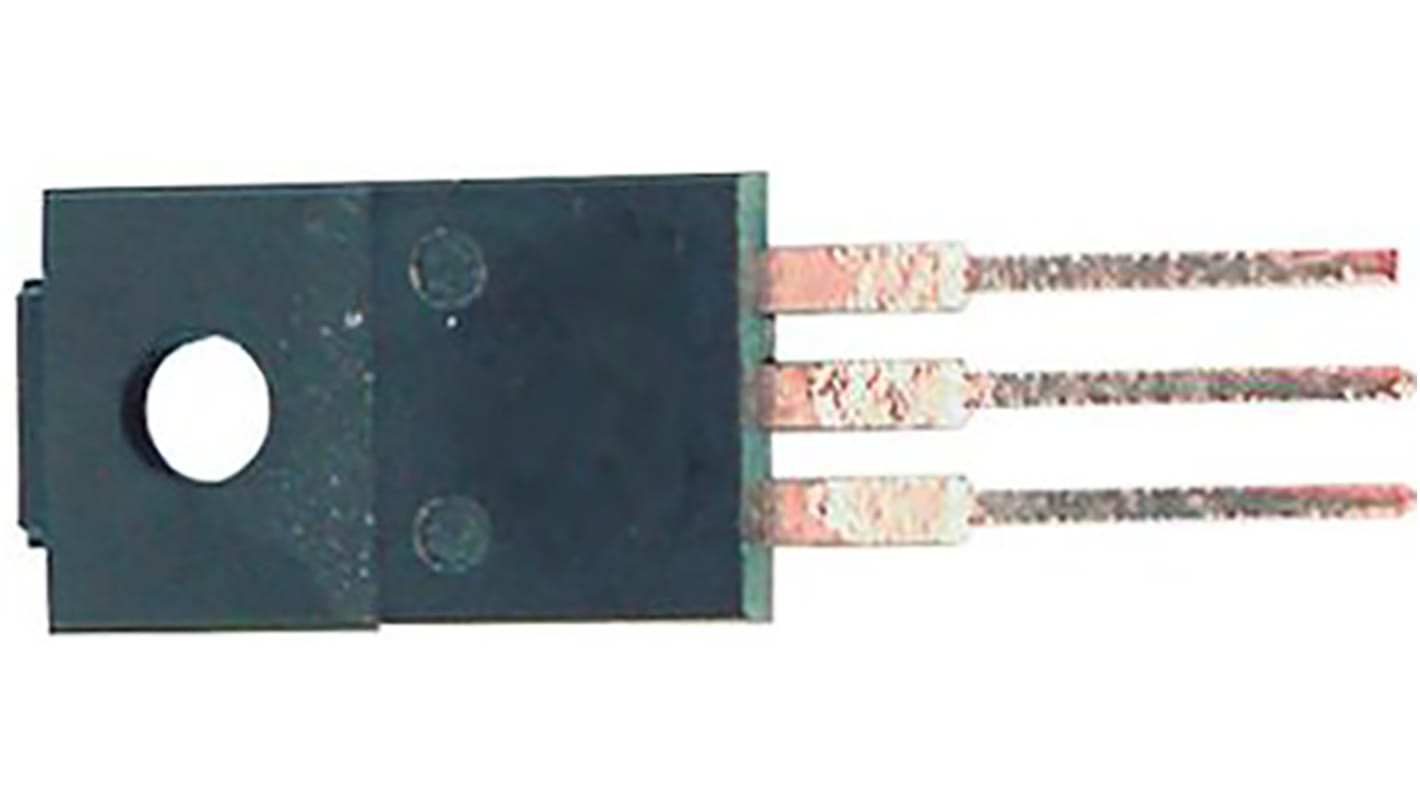

N-Channel MOSFET, 6.5 A, 1000 V, 3-Pin TO-220FP STMicroelectronics STF8NK100Z

RS Stock No.:: 761-2855
Mfr. Part No.:: STF8NK100Z
Brand:: STMicroelectronics

N-Channel MOSFET, 6.5 A, 1000 V, 3-Pin TO-220FP STMicroelectronics STF8NK100Z

Subtotal (1 unit)**

$8.62

(exc. GST)

$9.48

(inc. GST)

2 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $80.00 ex GST

Real time qty checker

Units	Per unit
1 +	$8.62

**price indicative

RS Stock No.:: 761-2855
Mfr. Part No.:: STF8NK100Z
Brand:: STMicroelectronics

N-channel 1000V - 1.60Ohm - 6.5A - TO-220 - TO-220FP
ESD Control Selection Guide V1

Attribute	Value
Channel Type	N
Maximum Continuous Drain Current	6.5 A
Maximum Drain Source Voltage	1000 V
Package Type	TO-220FP
Series	MDmesh, SuperMESH
Mounting Type	Through Hole
Pin Count	3
Maximum Drain Source Resistance	1.85 Ω
Channel Mode	Enhancement
Maximum Gate Threshold Voltage	4.5V
Minimum Gate Threshold Voltage	3V
Maximum Power Dissipation	40 W
Transistor Configuration	Single
Maximum Gate Source Voltage	-30 V, +30 V
Number of Elements per Chip	1
Typical Gate Charge @ Vgs	102 nC @ 10 V
Maximum Operating Temperature	+150 °C
Width	4.6mm
Length	10.4mm
Transistor Material	Si
Height	16.4mm
Minimum Operating Temperature	-55 °C

N-Channel MOSFET, 6.5 A, 1000 V, 3-Pin TO-220FP STMicroelectronics STF8NK100Z

FREE delivery for orders over $80.00 ex GST

N-Channel MDmesh™ SuperMESH™, 700V to 1200V, STMicroelectronics
