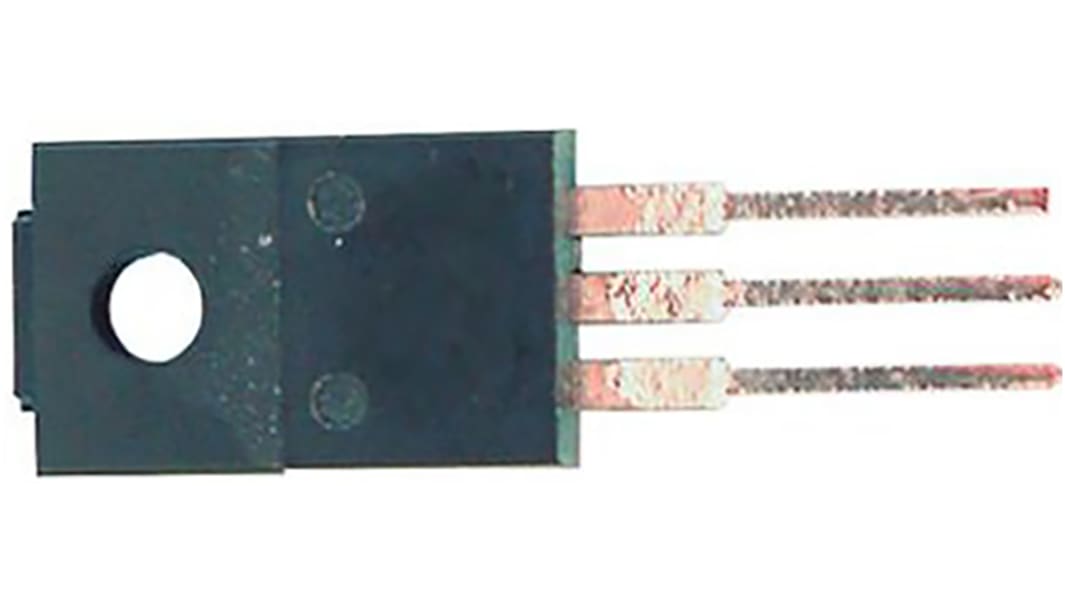

    STMicroelectronics MDmesh, SuperMESH N-Channel MOSFET, 3.5 A, 1000 V, 3-Pin TO-220FP STF5NK100Z

    Bulk discount available

    Subtotal (1 tube of 50 units)**

    $160.70

    (exc. GST)

    $176.75

    (inc. GST)

    Add to Basket
    Select or type quantity
    200 In Global stock for delivery within 10 working day(s)*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per unit
    Per Tube**
    50 - 50$3.214$160.70
    100 - 150$3.182$159.10
    200 +$3.136$156.80

    **price indicative

    RS Stock No.:
    103-1574
    Mfr. Part No.:
    STF5NK100Z
    Brand:
    STMicroelectronics
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    STMicroelectronics

    Channel Type

    N

    Maximum Continuous Drain Current

    3.5 A

    Maximum Drain Source Voltage

    1000 V

    Package Type

    TO-220FP

    Series

    MDmesh, SuperMESH

    Mounting Type

    Through Hole

    Pin Count

    3

    Maximum Drain Source Resistance

    3.7 Ω

    Channel Mode

    Enhancement

    Maximum Gate Threshold Voltage

    4.5V

    Minimum Gate Threshold Voltage

    3V

    Maximum Power Dissipation

    30 W

    Transistor Configuration

    Single

    Maximum Gate Source Voltage

    -30 V, +30 V

    Typical Gate Charge @ Vgs

    42 nC @ 10 V

    Number of Elements per Chip

    1

    Transistor Material

    Si

    Length

    10.4mm

    Width

    4.6mm

    Maximum Operating Temperature

    +150 °C

    Minimum Operating Temperature

    -55 °C

    Height

    9.3mm
