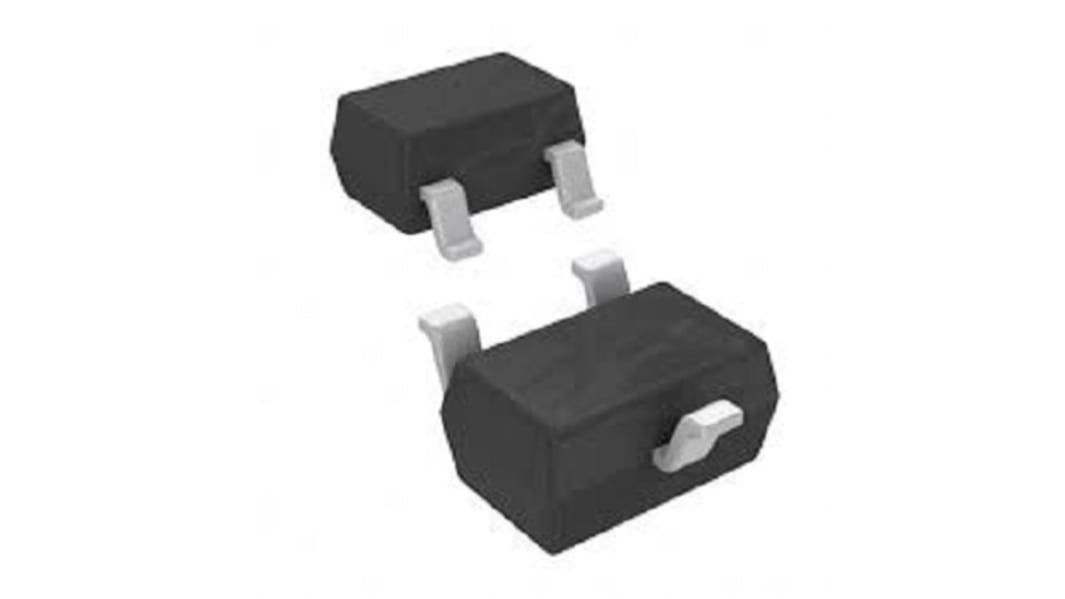

N-Channel MOSFET, 280 mA, 60 V, 3-Pin SOT-323 Infineon BSS138WH6327XTSA1
- RS Stock No.:
- 250-0542
- Mfr. Part No.:
- BSS138WH6327XTSA1
- Brand:
- Infineon
16920 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 10)
$0.411
(exc. GST)
$0.452
(inc. GST)
| Units | Per unit | Per Pack* |
| 10 - 10 | $0.411 | $4.11 |
| 20 - 90 | $0.37 | $3.70 |
| 100 - 240 | $0.332 | $3.32 |
| 250 - 490 | $0.299 | $2.99 |
| 500 + | $0.269 | $2.69 |
| *price indicative | ||
- RS Stock No.:
- 250-0542
- Mfr. Part No.:
- BSS138WH6327XTSA1
- Brand:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details
The Infineon makes SIPMOS Small-Signal-Transistor, N-channel, Enhancement mode. The device is dv /dt rated and Pb-free lead-plating. It has Vds of 60 V, Rds(on)max is 3.5 Ω and Id is 0.28 A. It is Halogen-free, P-channel Enhancement mode transistor widely used in high-switching applications. It is avalanche rated and halogen-free.
100% lead-free
Maximum power dissipation is 360mW
Maximum power dissipation is 360mW
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 280 mA |
| Maximum Drain Source Voltage | 60 V |
| Package Type | SOT-323 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
