Infineon OptiMOS 3 Type N-Channel MOSFET, 73 A, 40 V N, 8-Pin TDSON BSC059N04LSGATMA1

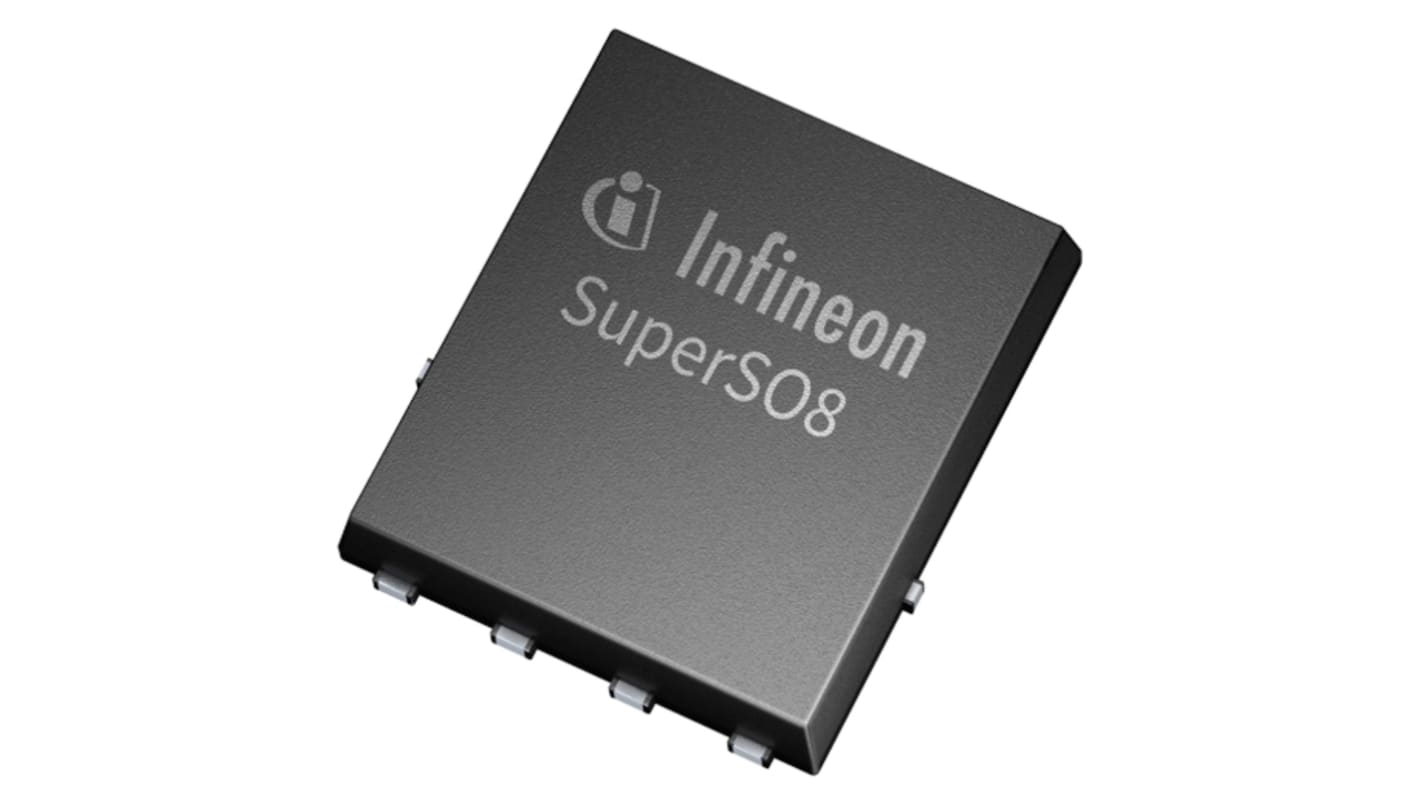

This image is representative of the product range

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 20 units)*

$22.94

(exc. GST)

$25.24

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • Plus 5,960 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
20 - 1240$1.147$22.94
1260 - 2480$1.118$22.36
2500 +$1.10$22.00

*price indicative

Packaging Options:
RS Stock No.:
218-2977
Mfr. Part No.:
BSC059N04LSGATMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

73A

Maximum Drain Source Voltage Vds

40V

Package Type

TDSON

Series

OptiMOS 3

Mount Type

Surface

Pin Count

8

Maximum Drain Source Resistance Rds

5.9mΩ

Channel Mode

N

Maximum Gate Source Voltage Vgs

20 V

Forward Voltage Vf

1.2V

Typical Gate Charge Qg @ Vgs

30nC

Maximum Power Dissipation Pd

50W

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

150°C

Standards/Approvals

No

Width

6.1 mm

Length

5.35mm

Height

1.2mm

Automotive Standard

No

Distrelec Product Id

304-39-397

The Infineon OptiMOS™ 3 N-Channel power MOSFET. The OptiMOS™ 40V is a perfect choice for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops. In addition these devices can be used for a broad range of industrial applications including motor control and fast switching DC-DC converter.

Fast switching MOSFET for SMPS

Optimized technology for DC/DC converters

Superior thermal resistance

Pb-free plating
