- RS Stock No.:
- 133-3303
- Mfr. Part No.:
- RQ5L015SPTL
- Brand:
- ROHM
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price (ex. GST) Each (In a Pack of 25)
$0.58
(exc. GST)
$0.64
(inc. GST)
Units | Per unit | Per Pack* |
25 - 100 | $0.58 | $14.50 |
125 - 225 | $0.565 | $14.125 |
250 - 1225 | $0.552 | $13.80 |
1250 - 2475 | $0.538 | $13.45 |
2500 + | $0.525 | $13.125 |
*price indicative |
- RS Stock No.:
- 133-3303
- Mfr. Part No.:
- RQ5L015SPTL
- Brand:
- ROHM
Technical data sheets
Legislation and Compliance
Product Details

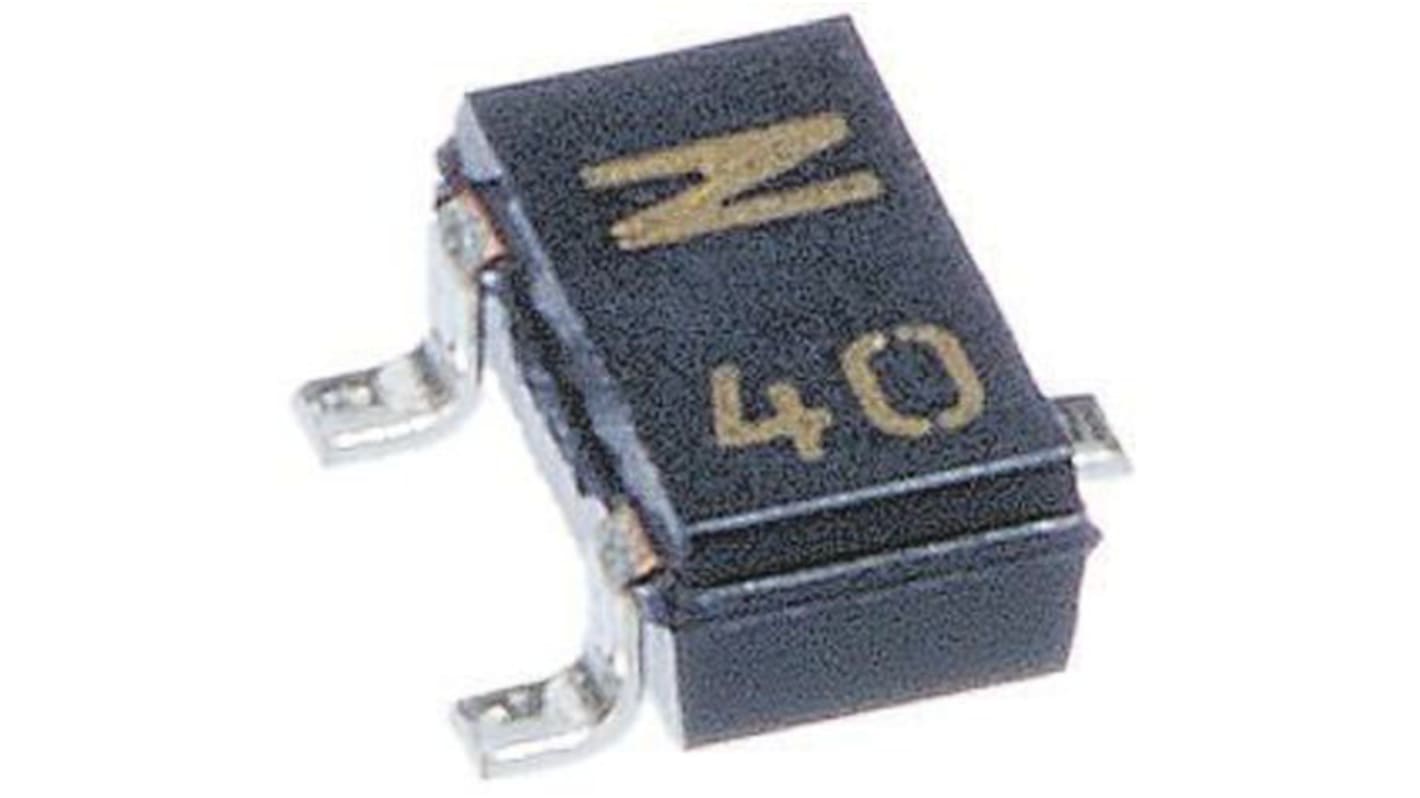

P-Channel MOSFET Transistors, ROHM
MOSFET Transistors, ROHM Semiconductor
Specifications
Attribute | Value |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 1.5 A |
Maximum Drain Source Voltage | 60 V |
Series | RQ5L015SP |
Package Type | SOT-346 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 360 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 3V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 1 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Width | 1.8mm |
Typical Gate Charge @ Vgs | 10 nC @ 10 V |
Length | 3mm |
Maximum Operating Temperature | +150 °C |
Height | 0.95mm |
Forward Diode Voltage | 1.2V |
