ROHM RSD201N10 N-Channel MOSFET, 20 A, 100 V, 3-Pin SOT-428 RSD201N10TL

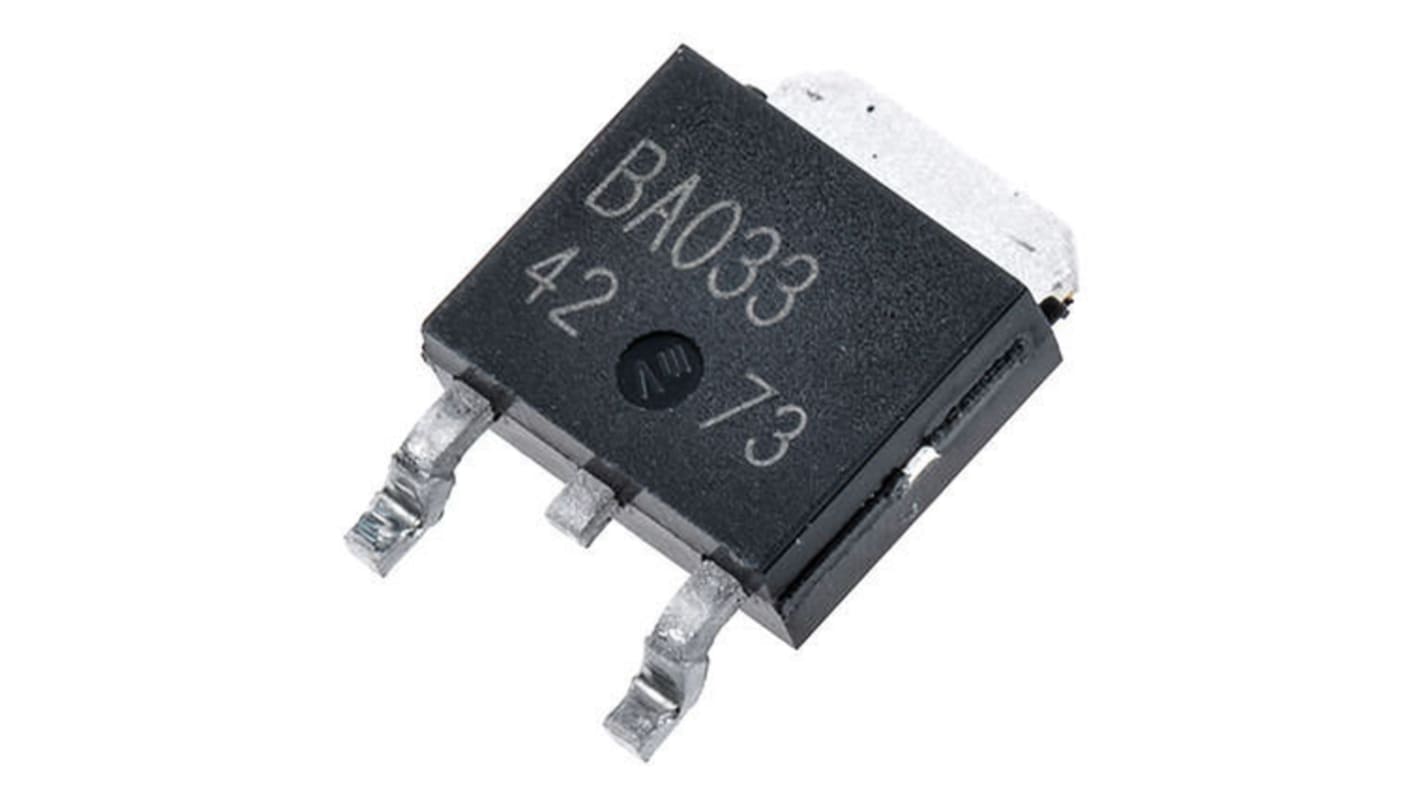

This image is representative of the product range

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 5 units)*

$10.88

(exc. GST)

$11.97

(inc. GST)

Add to Basket
Select or type quantity
Last RS stock
  • Final 310 unit(s), ready to ship from another location
Units
Per unit
Per Pack*
5 - 20$2.176$10.88
25 - 45$2.138$10.69
50 - 245$2.102$10.51
250 - 495$2.064$10.32
500 +$2.028$10.14

*price indicative

RS Stock No.:
133-2839
Mfr. Part No.:
RSD201N10TL
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Channel Type

N

Maximum Continuous Drain Current

20 A

Maximum Drain Source Voltage

100 V

Series

RSD201N10

Package Type

SOT-428

Mounting Type

Surface Mount

Pin Count

3

Maximum Drain Source Resistance

84 mΩ

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

2.5V

Minimum Gate Threshold Voltage

1V

Maximum Power Dissipation

20 W

Transistor Configuration

Single

Maximum Gate Source Voltage

-20 V, +20 V

Width

5.8mm

Number of Elements per Chip

1

Maximum Operating Temperature

+150 °C

Typical Gate Charge @ Vgs

55 nC @ 10 V

Length

6.7mm

Height

2.5mm

Forward Diode Voltage

1.5V

COO (Country of Origin):
JP

N-Channel MOSFET Transistors, ROHM



MOSFET Transistors, ROHM Semiconductor
