Nexperia BSS138BKW Type N-Channel MOSFET, 320 mA, 60 V Enhancement, 3-Pin SC-70

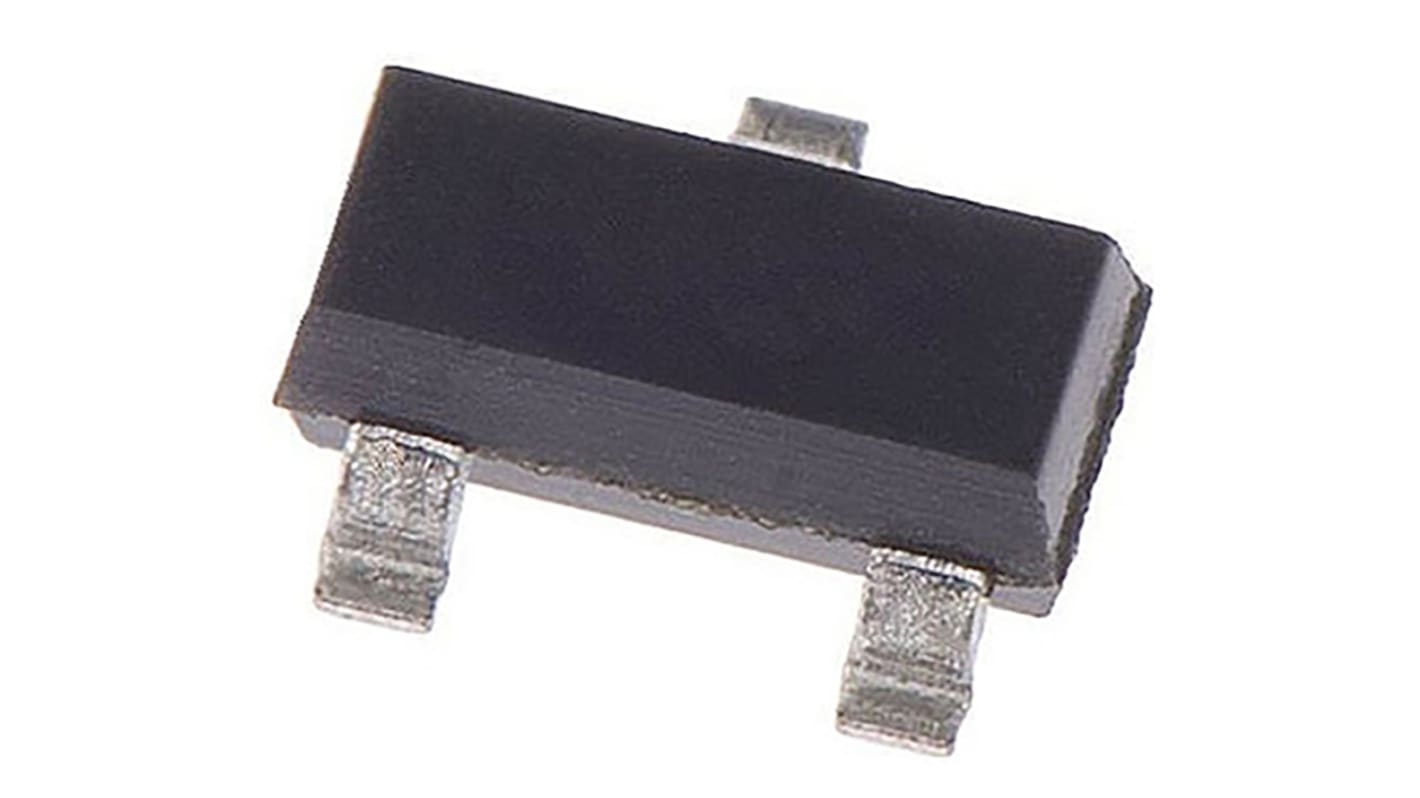

This image is representative of the product range

View all MOSFETs
Bulk discount available

Subtotal (1 reel of 3000 units)*

$246.00

(exc. GST)

$270.00

(inc. GST)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 07 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 - 3000$0.082$246.00
6000 - 27000$0.081$243.00
30000 +$0.073$219.00

*price indicative

RS Stock No.:
124-2290
Mfr. Part No.:
BSS138BKW,115
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

320mA

Maximum Drain Source Voltage Vds

60V

Package Type

SC-70

Series

BSS138BKW

Mount Type

Surface

Pin Count

3

Maximum Drain Source Resistance Rds

1.6Ω

Channel Mode

Enhancement

Typical Gate Charge Qg @ Vgs

0.6nC

Minimum Operating Temperature

-55°C

Maximum Power Dissipation Pd

310mW

Maximum Gate Source Voltage Vgs

20 V

Forward Voltage Vf

1.1V

Maximum Operating Temperature

150°C

Height

1mm

Standards/Approvals

No

Width

1.4 mm

Length

3mm

Automotive Standard

AEC-Q101

COO (Country of Origin):
MY

N-Channel MOSFET, 60V to 80V, Nexperia


MOSFET Transistors, NXP Semiconductors
