STMicroelectronics MDmesh, SuperMESH Type N-Channel MOSFET, 3.5 A, 1 kV Enhancement, 3-Pin TO-247 STW5NK100Z

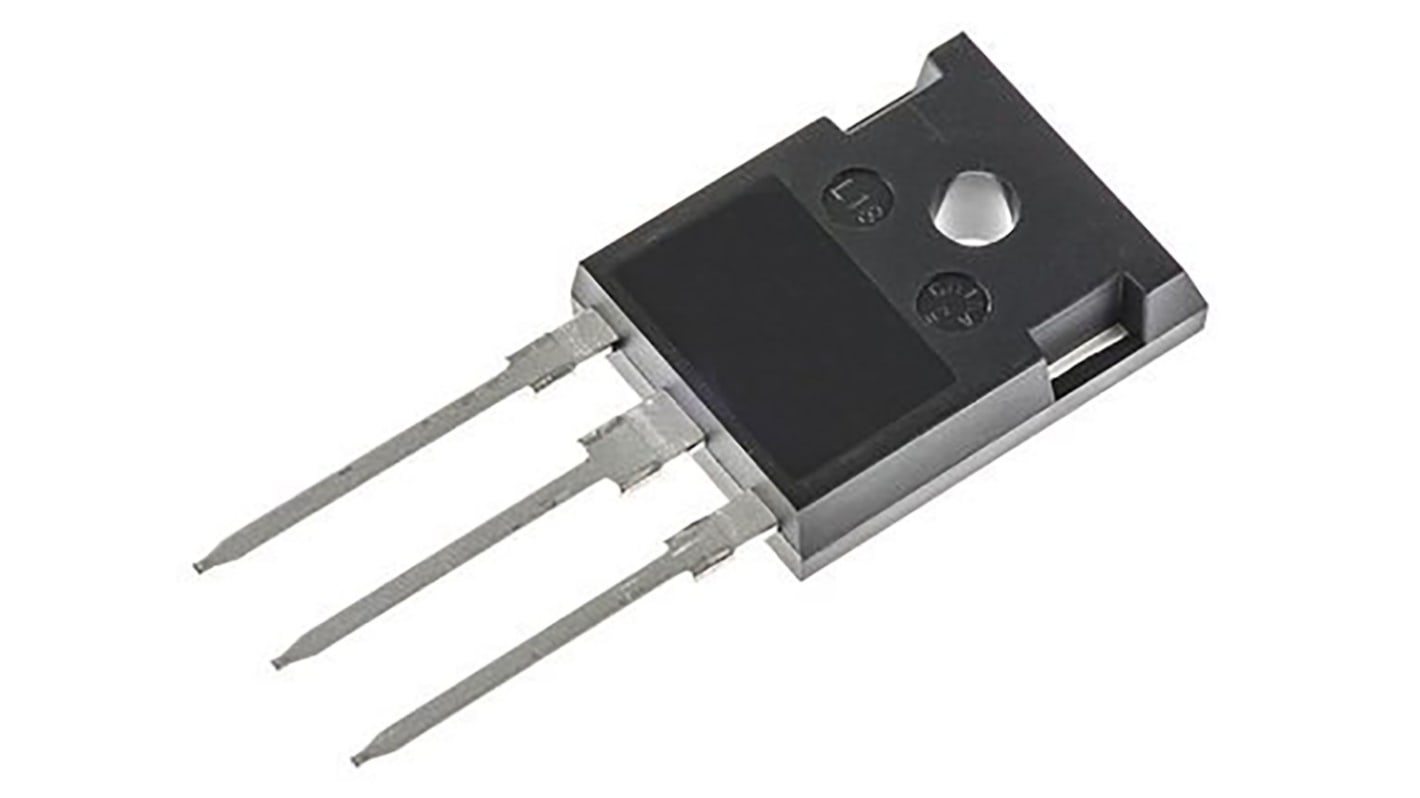

This image is representative of the product range

View all MOSFETs

Subtotal (1 pack of 2 units)*

$16.50

(exc. GST)

$18.16

(inc. GST)

Add to Basket
Select or type quantity
Orders below $60.00 (exc. GST) cost $12.95.
In Stock
  • 16 unit(s) ready to ship from another location
  • Plus 1,004 unit(s) shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 +$8.25$16.50

*price indicative

Packaging Options:
RS Stock No.:
687-5355
Mfr. Part No.:
STW5NK100Z
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

3.5A

Maximum Drain Source Voltage Vds

1kV

Series

MDmesh, SuperMESH

Package Type

TO-247

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

3.7Ω

Channel Mode

Enhancement

Forward Voltage Vf

1.6V

Minimum Operating Temperature

-55°C

Maximum Gate Source Voltage Vgs

30 V

Maximum Power Dissipation Pd

125W

Typical Gate Charge Qg @ Vgs

42nC

Maximum Operating Temperature

150°C

Standards/Approvals

No

Length

15.75mm

Height

20.15mm

Width

5.15 mm

Automotive Standard

No

N-Channel MDmesh™ SuperMESH™, 700V to 1200V, STMicroelectronics


MOSFET Transistors, STMicroelectronics
